P1108

DTC P1108: Manifold Differential Pressure (MDP) Sensor High Input

Wiring Diagram:

Wiring Diagram

Detecting Condition / Trouble Area:

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

NOTE: Make sure that the following condition is satisfied when using this DTC Confirmation Procedure.
- Intake air temp.: -10 °C, 14 °F or higher

1. With ignition switch OFF, connect scan tool to DLC.
2. Turn ON ignition switch and clear DTC using scan tool and warm up engine completely.
3. Run engine at idle speed for 1 minute with all electric loads turned OFF.
4. Check DTC and pending DTC.

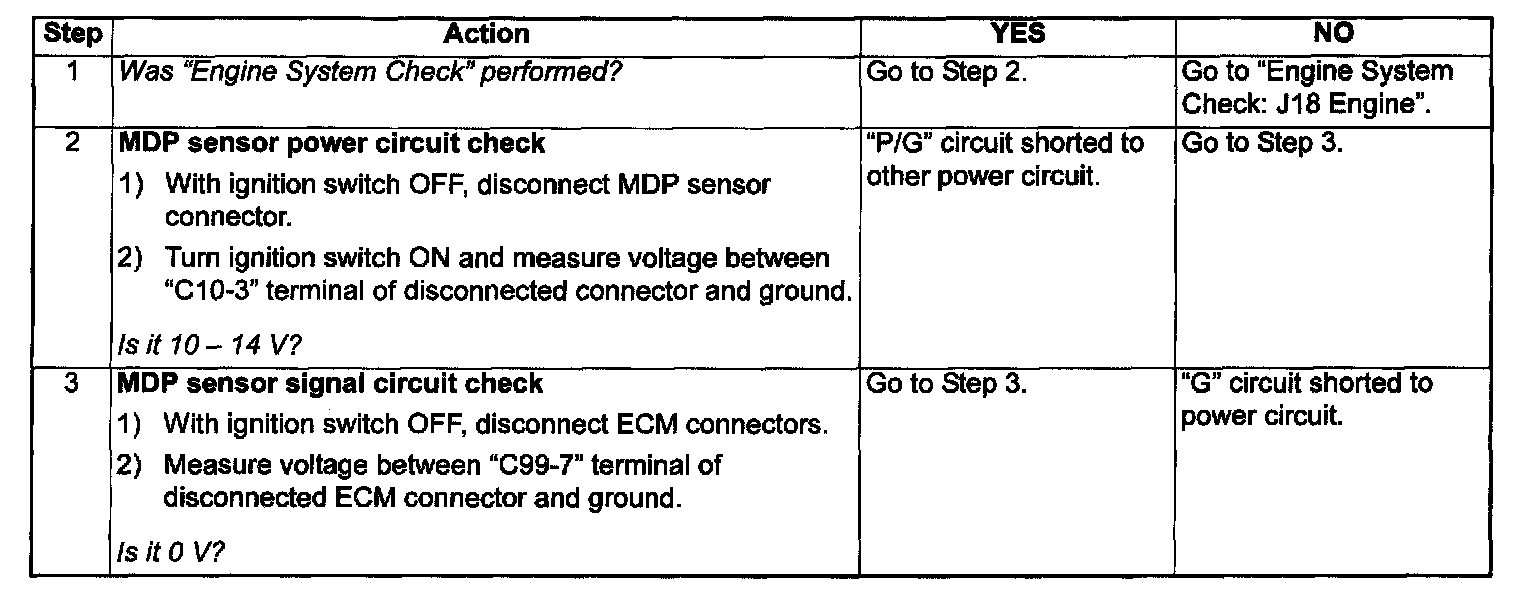

Steps 1 - 3:

Step 4:

DTC Troubleshooting
