P0464

DTC P0464: Fuel Level Sensor Circuit Intermittent

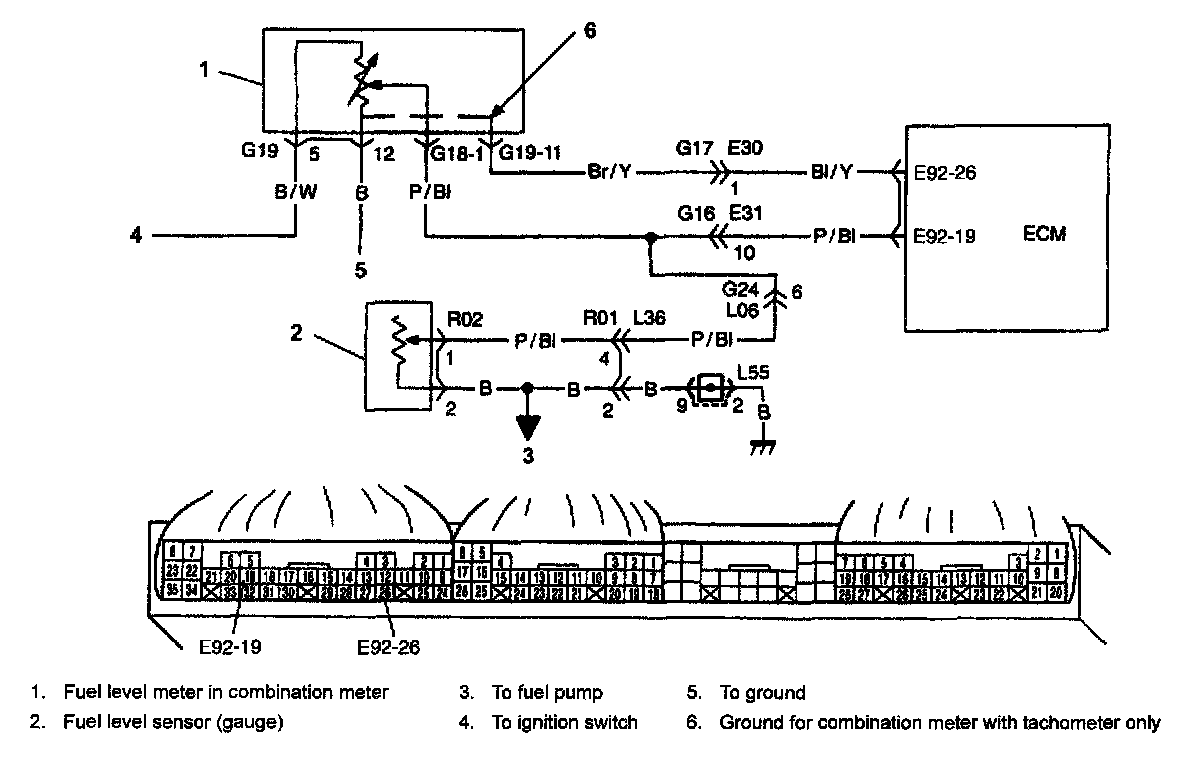

Wiring Diagram

Detecting Condition / Trouble Area:

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

NOTE: Make sure that the following conditions are satisfied when using this DTC Confirmation Procedure.
- Intake air temp.: -14 °C, 6.8 °F or higher
- Altitude (barometric pressure): 2400 m, 8000 ft or less (560 mmHg, 75 kPa or more)

1. With ignition switch OFF, connect scan tool.
2. Turn ON ignition switch and clear DTC using scan tool.
3. Start engine and run engine at idle speed (600 rpm or more) for 1 minute.
4. Check DTC and pending DTC.

Steps 1 - 3:

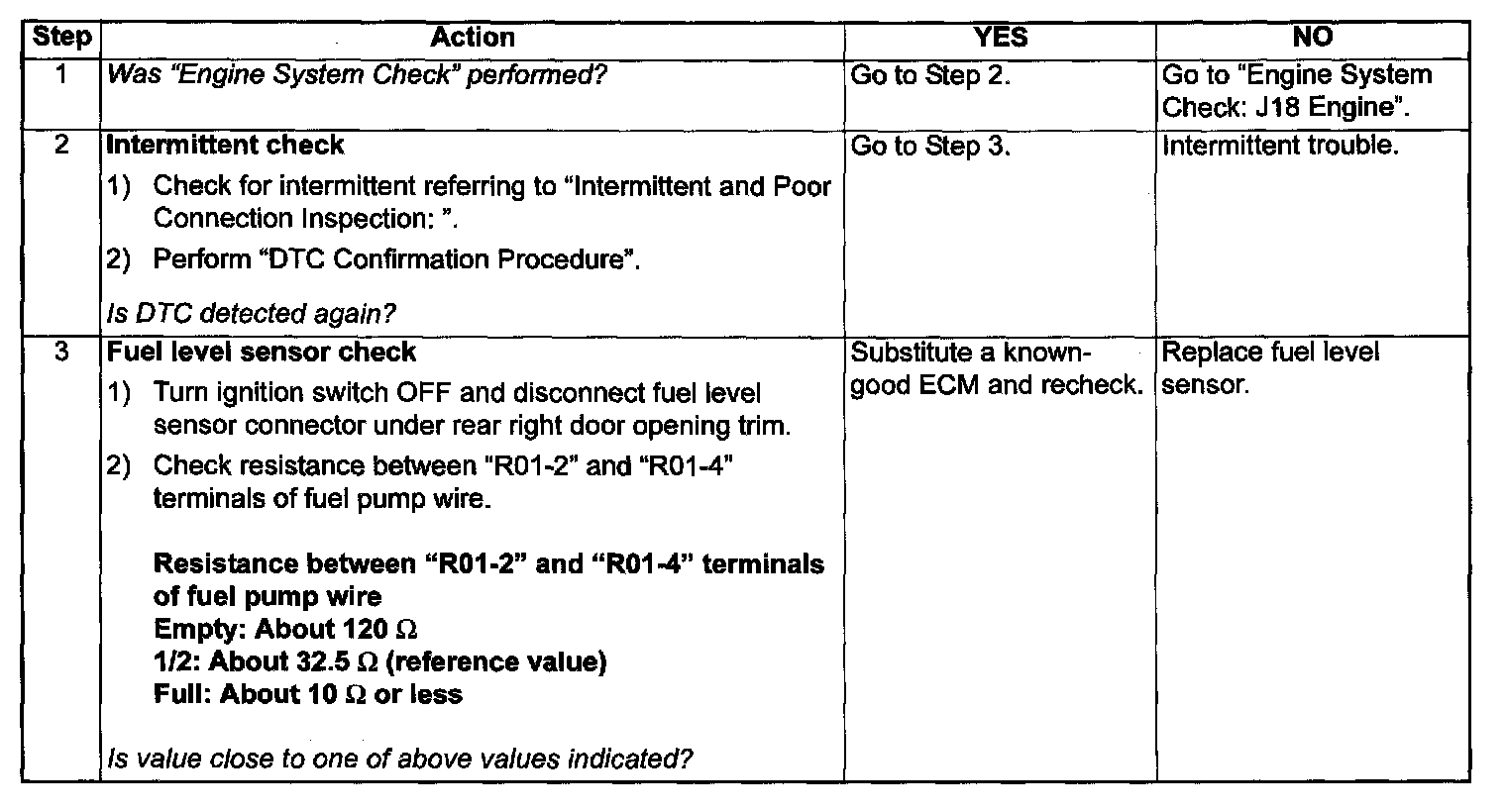

DTC Troubleshooting
