P0461

DTC P0461: Fuel Level Sensor (Gauge) Circuit Performance Problem

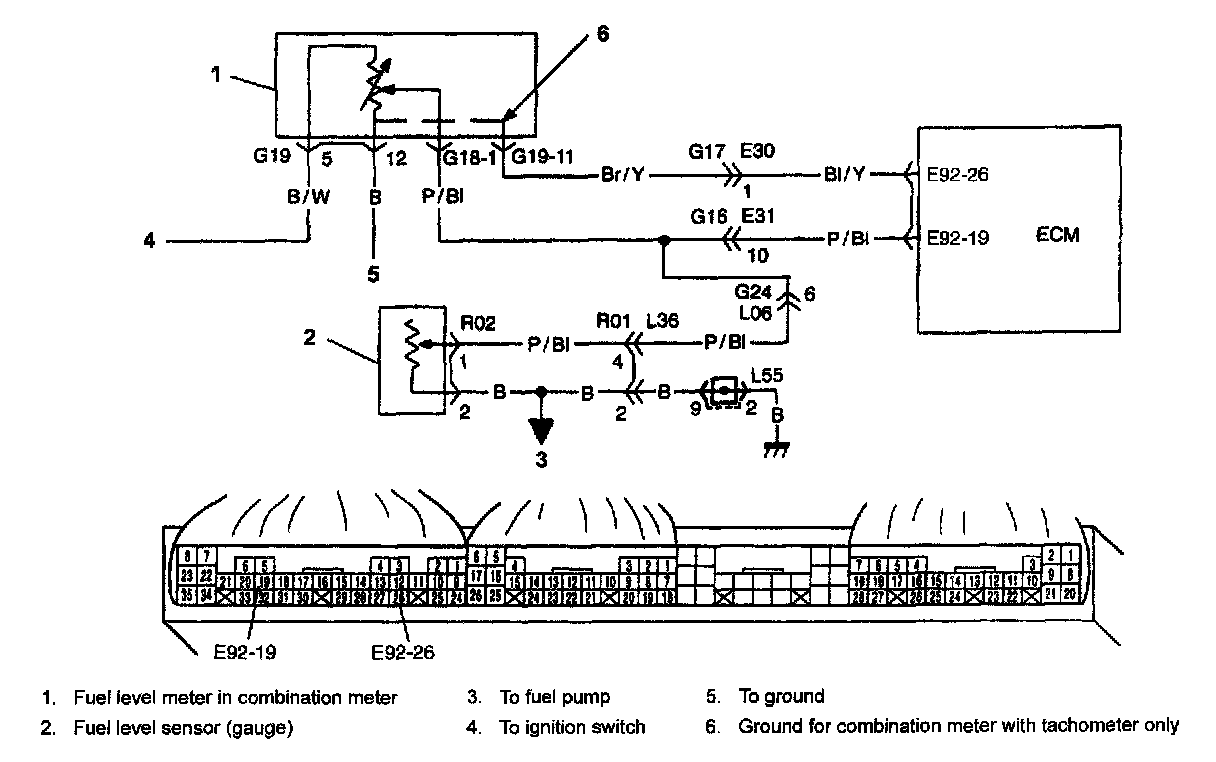

Wiring Diagram:

Wiring Diagram

Detecting Condition / Trouble Area:

DTC Detecting Condition and Trouble Area

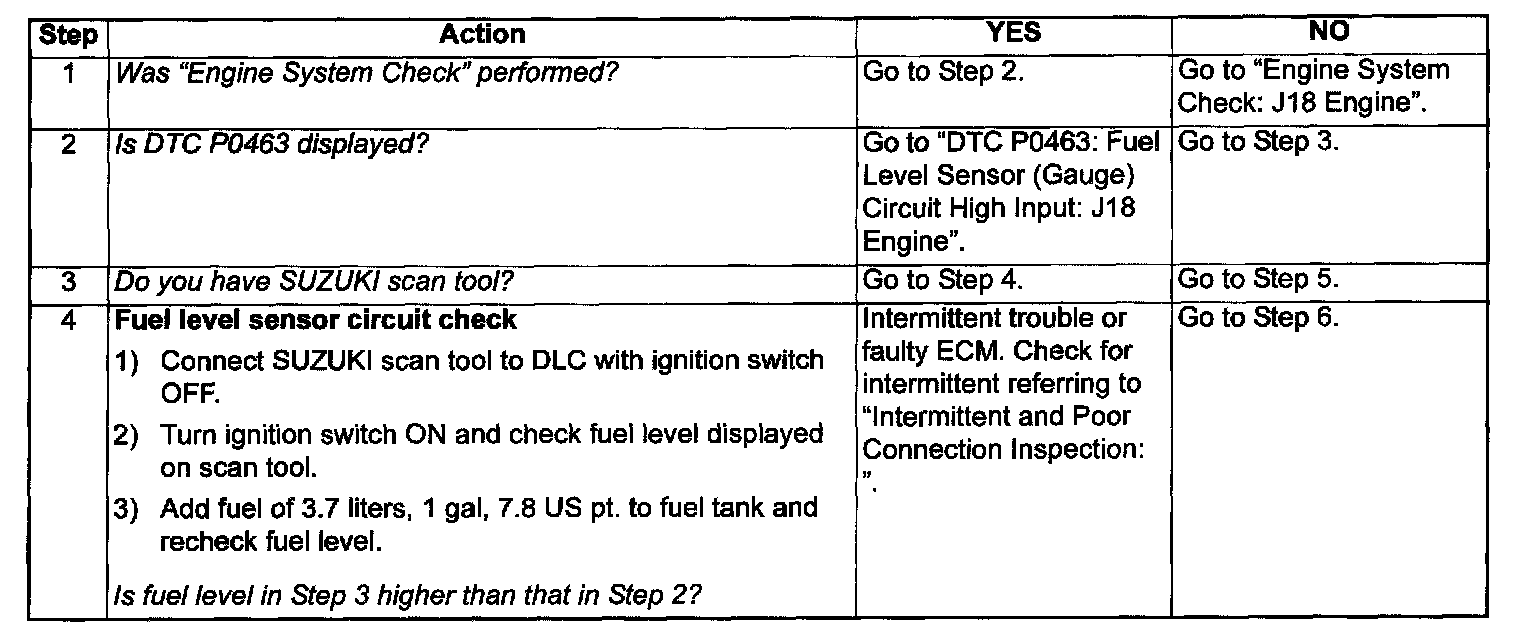

Steps 1 - 4:

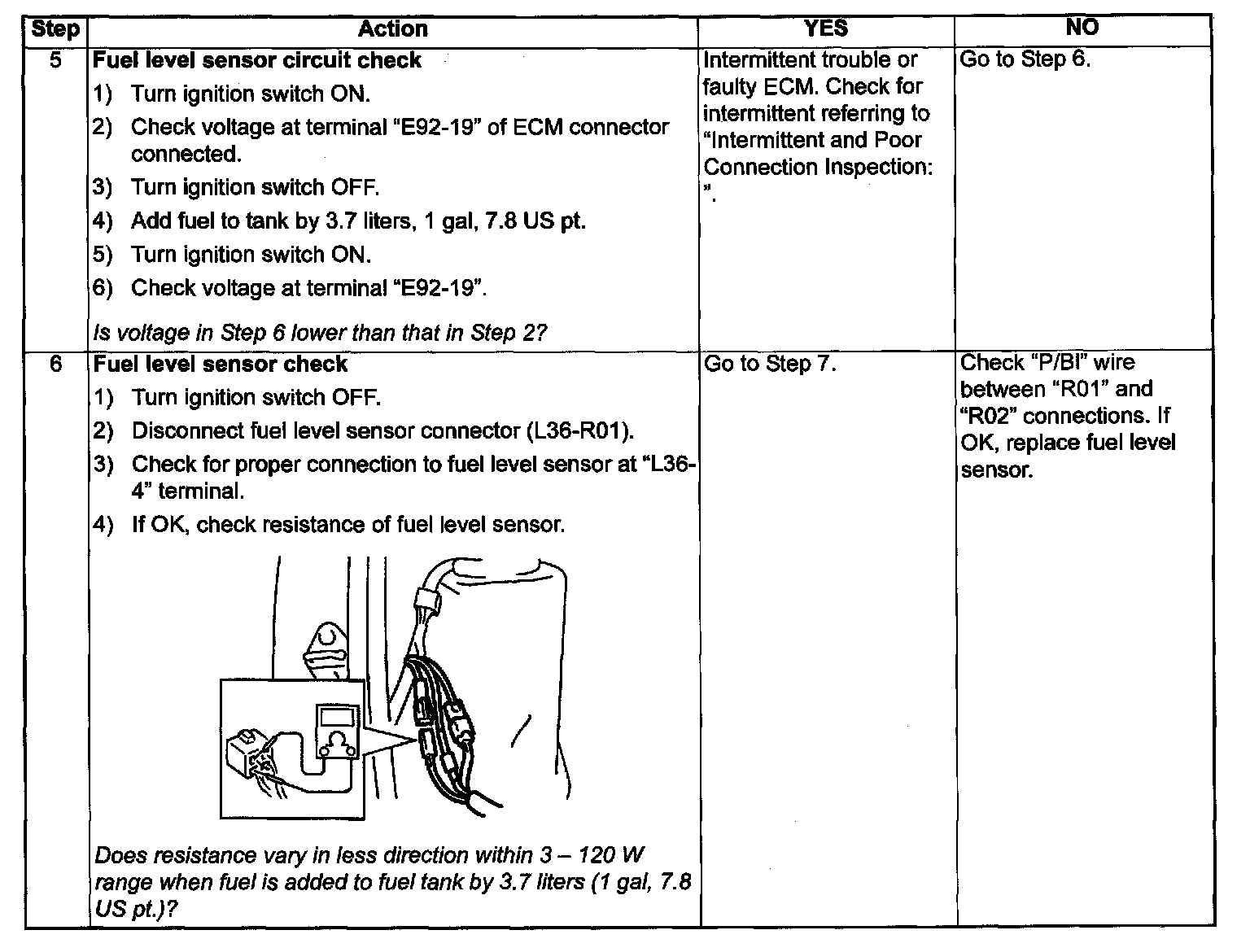

Steps 5 - 6:

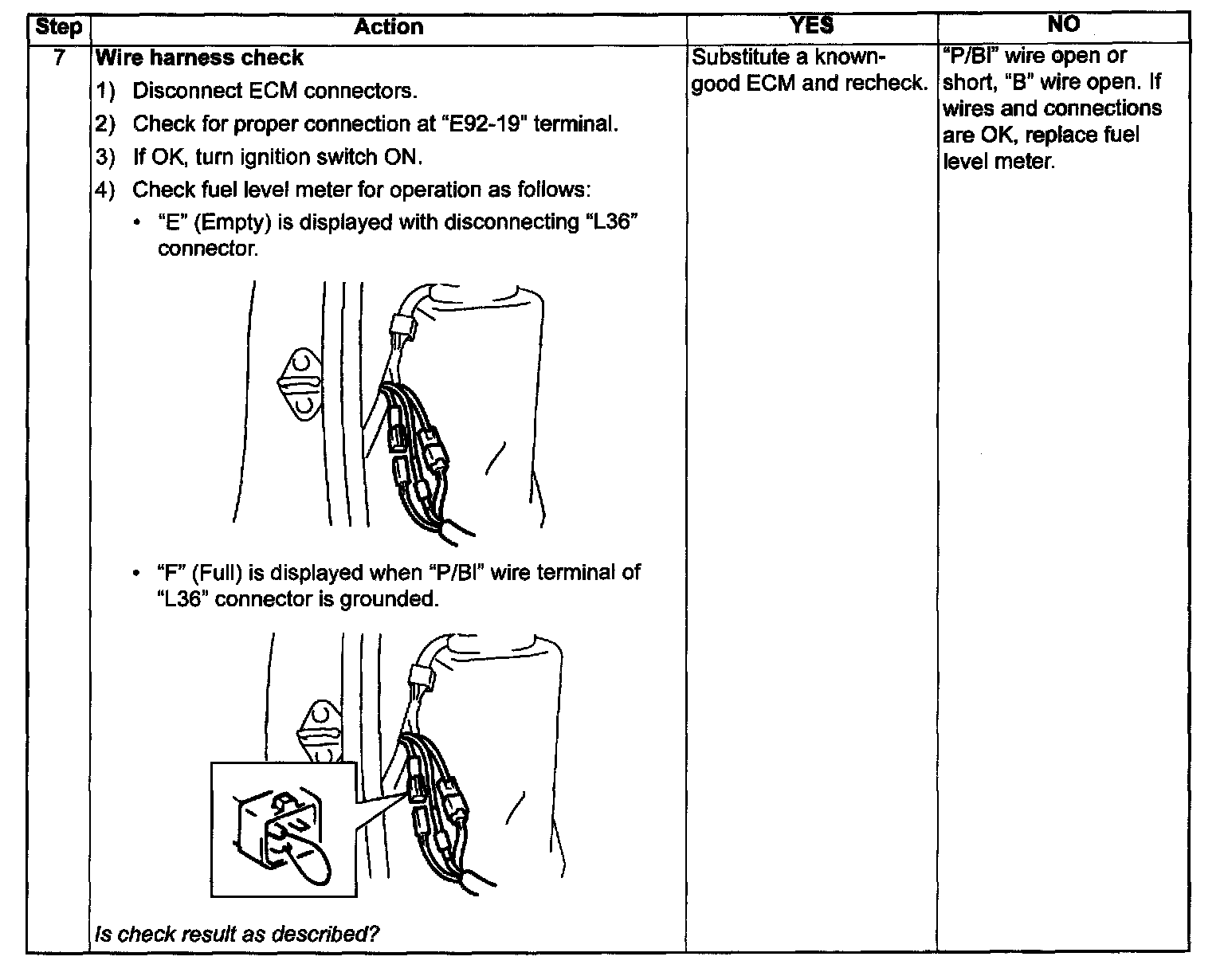

Step 7:

DTC Troubleshooting
