Tightening Torque Specifications

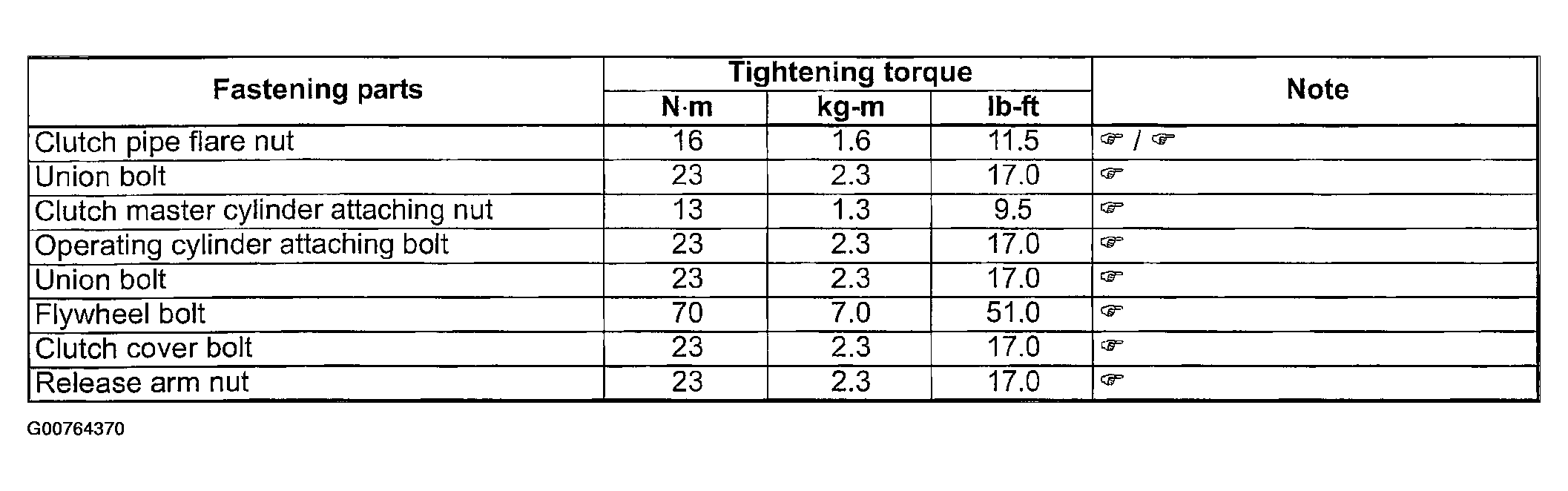

Fig 1: Tightening Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
NOTE:
The specified tightening torque is described in the following.
Clutch Fluid Pipe and Hose Components
Clutch Operating Cylinder Components
Clutch Cover, Clutch Disc, Flywheel and Clutch Release System Components
