Combination Meter: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove instrument cluster panel (1) and combination meter hole cover (2). See Fig 1 .
  3. Remove screws (3) fastening combination meter.
  4. Disconnect combination meter connectors and pull out combination meter (4) through combination meter hole. See Fig 1 .

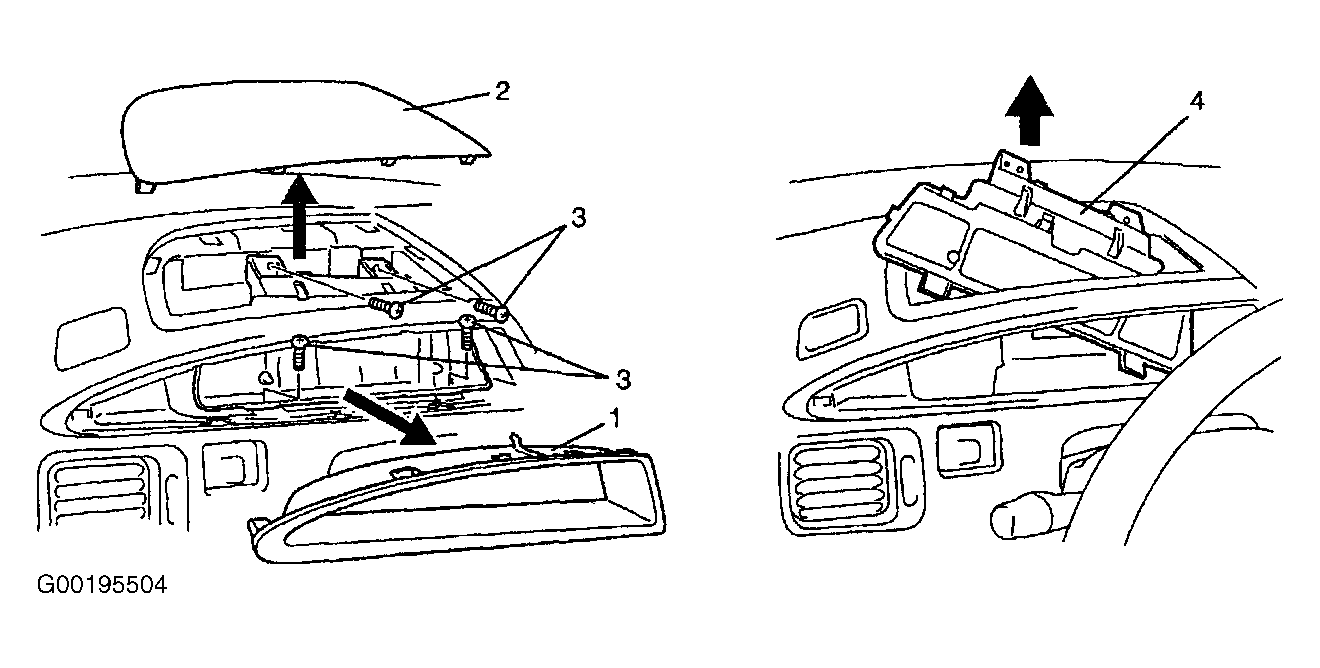

Fig 1: Removing Instrument Cluster Panel & Combination Meter
G00195504Courtesy of SUZUKI OF AMERICA CORP.
