Oil Pressure Switch Inspection

Disconnect oil pressure switch (1) lead wire. See Fig 1 .
Check for continuity between oil pressure switch terminal (2) and cylinder block (3). See Fig 1 . If there is no continuity, replace oil pressure switch (1).

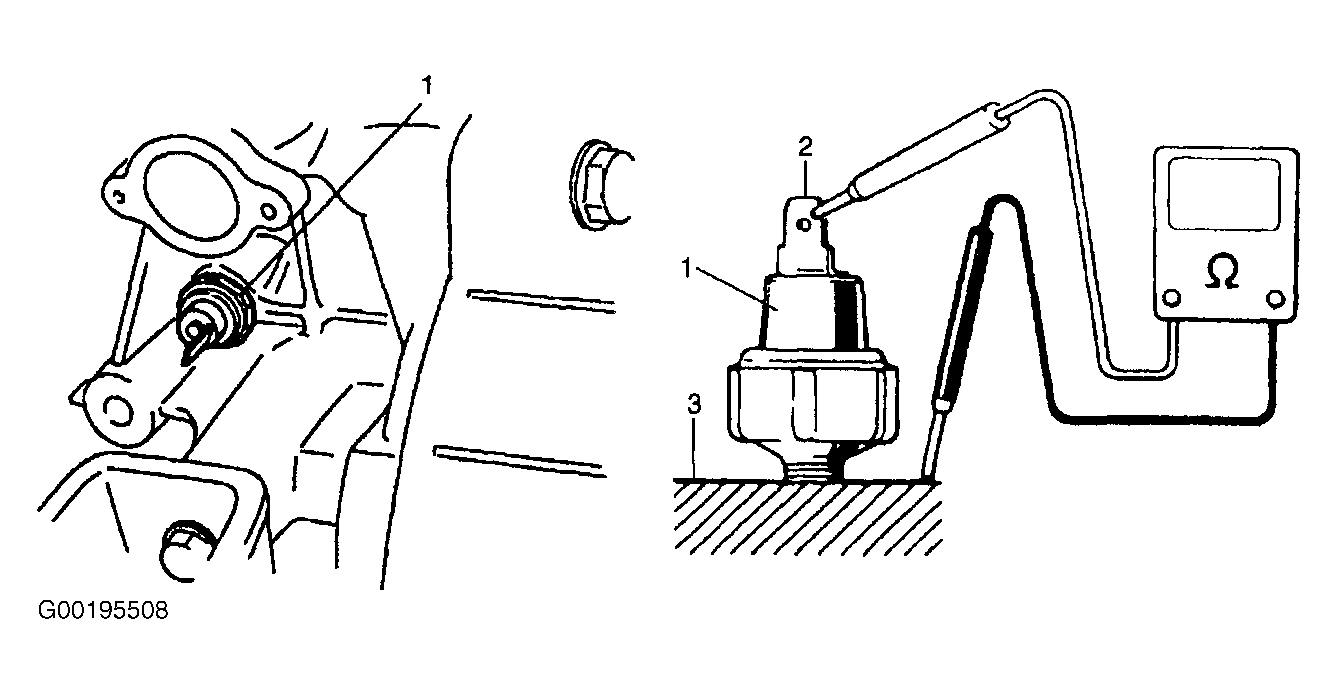

Fig 1: Checking Oil Pressure & Continuity Between Oil Pressure & Cylinder Block

Courtesy of SUZUKI OF AMERICA CORP.
