Daytime Running Light (DRL) Circuit

  1. Disconnect negative (-) cable at battery.
  2. Remove glove box (1) from instrument panel (2). See Fig 1 .
  3. Disconnect Daytime Running Light (DRL) indicator (3).
  4. Connect negative (-) cable at battery.
  5. Check that voltage and resistance between the following terminals and body ground are specifications under each conditions. See Fig 2 . If check result is OK, replace DRL controller. If check result is not specified, then repair circuit.

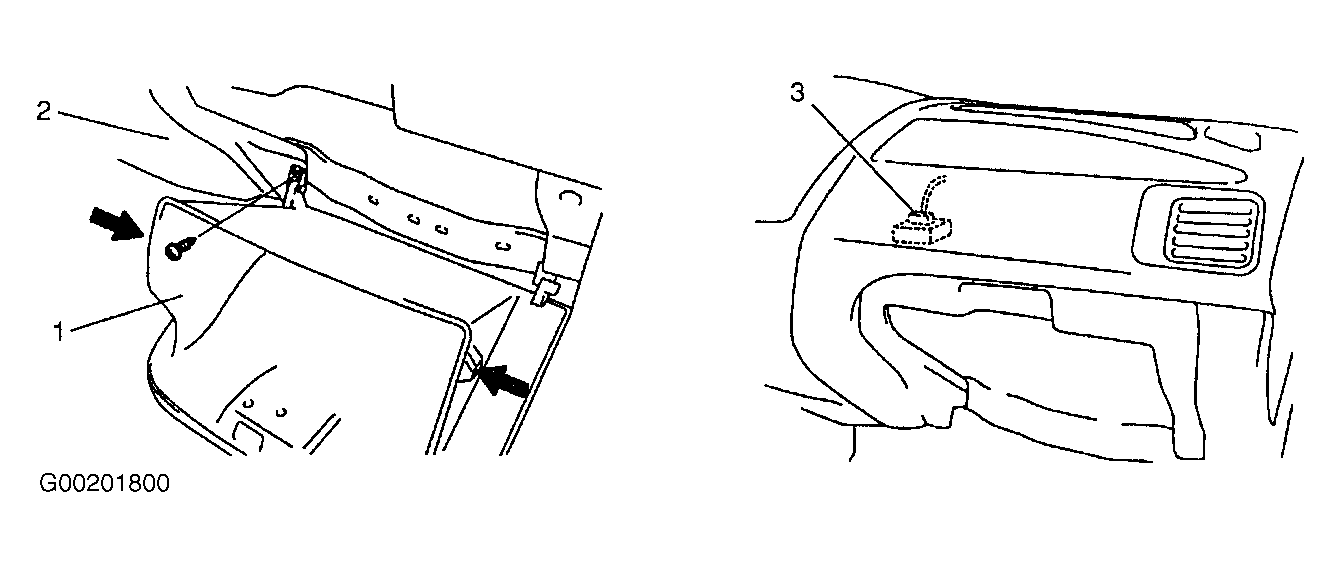

Fig 1: Removing Glove Box From Instrument Panel
G00201800Courtesy of SUZUKI OF AMERICA CORP.

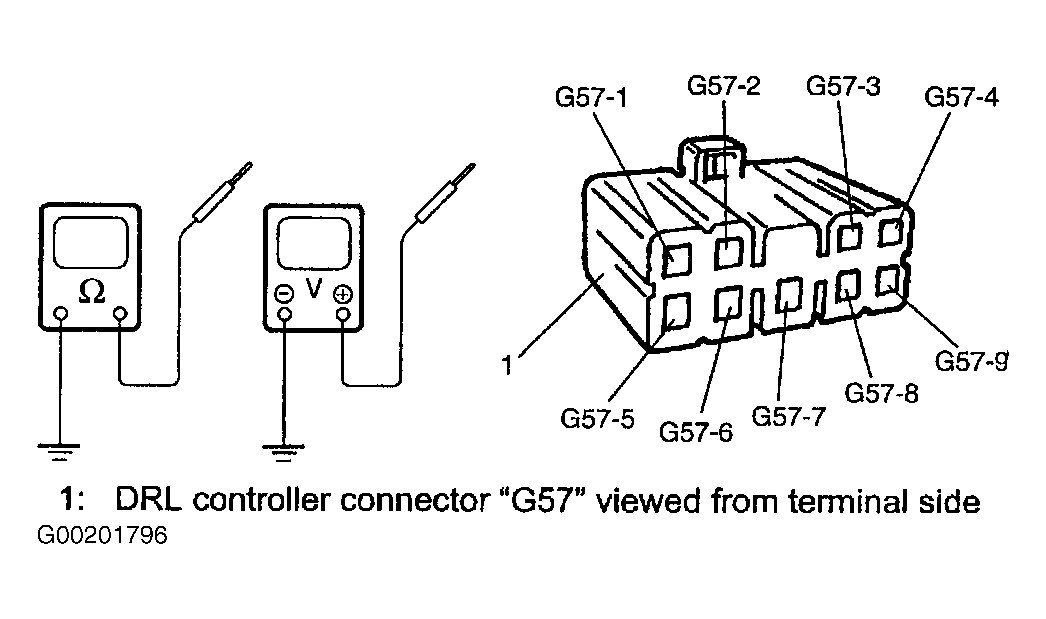

Fig 2: Checking Continuity Between Terminals & Ground
G00201796Courtesy of SUZUKI OF AMERICA CORP.
