Tightening Torque Specifications

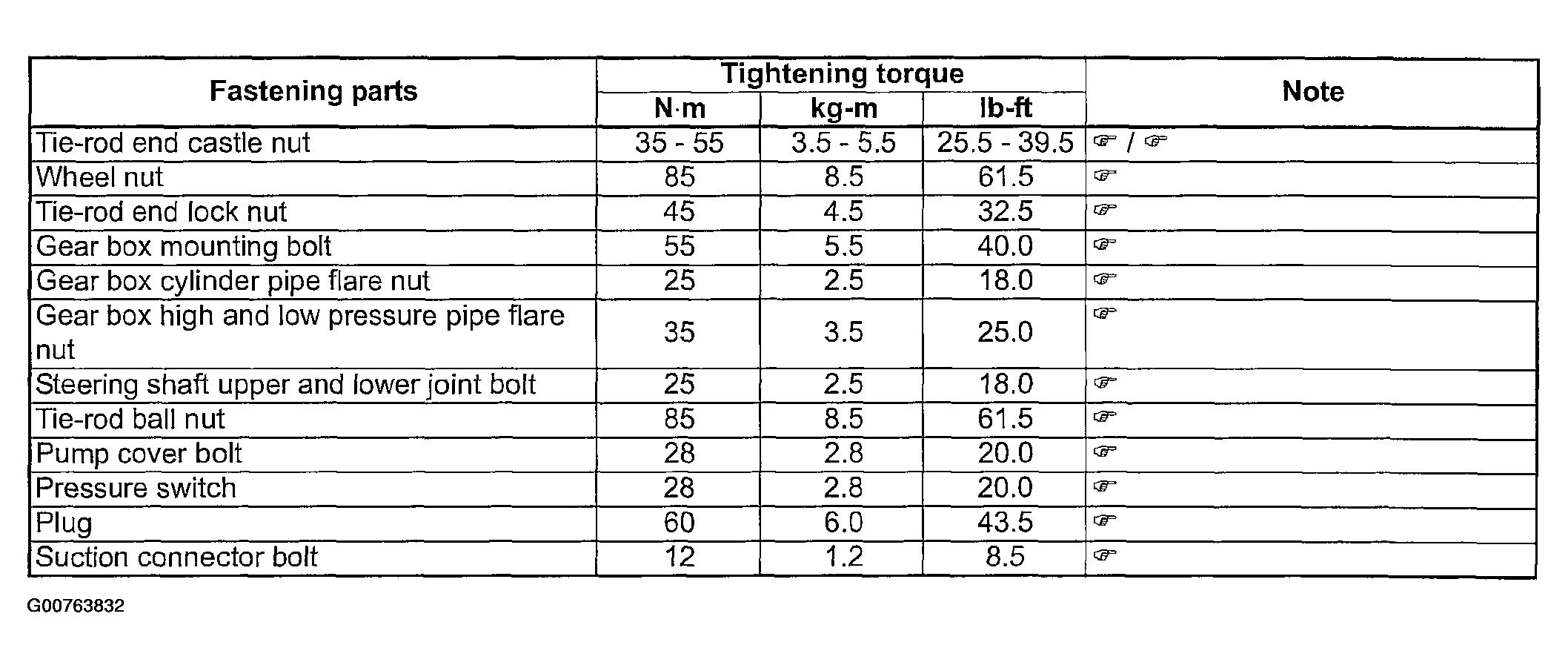

Fig 1: Tightening Torque Specifications
G00763832Courtesy of SUZUKI OF AMERICA CORP.
NOTE: The specified tightening torque is described in the following.
