Transmission Fluid Temperature Sensor Inspection

Lift up vehicle.
With engine is cool, remove drain plug and drain A/T fluid.
Install drain plug. (Refer to A/T FLUID CHANGE ).
Disconnect fluid cooler inlet hose (outlet from fluid cooler) from pipe, and remove A/T fluid cooler pipe (lower side).
Remove A/T side cover.
Disconnect valve body connector (1).
Warm up transmission fluid temperature sensor (2). Check resistance between terminals of A/T side valve body connector. Thus make sure its resistance decrease with the increase of temperature. After inspection, install transmission fluid temp, sensor and connect valve body connector.
Transmission fluid temperature sensor resistance (Temperature: Resistance)

10 °C (50 °F): 5.8-7.1 kΩ

110 °C (230 °F): 231 - 263 Ω

145 °C (293 °F): 105 -117Ω

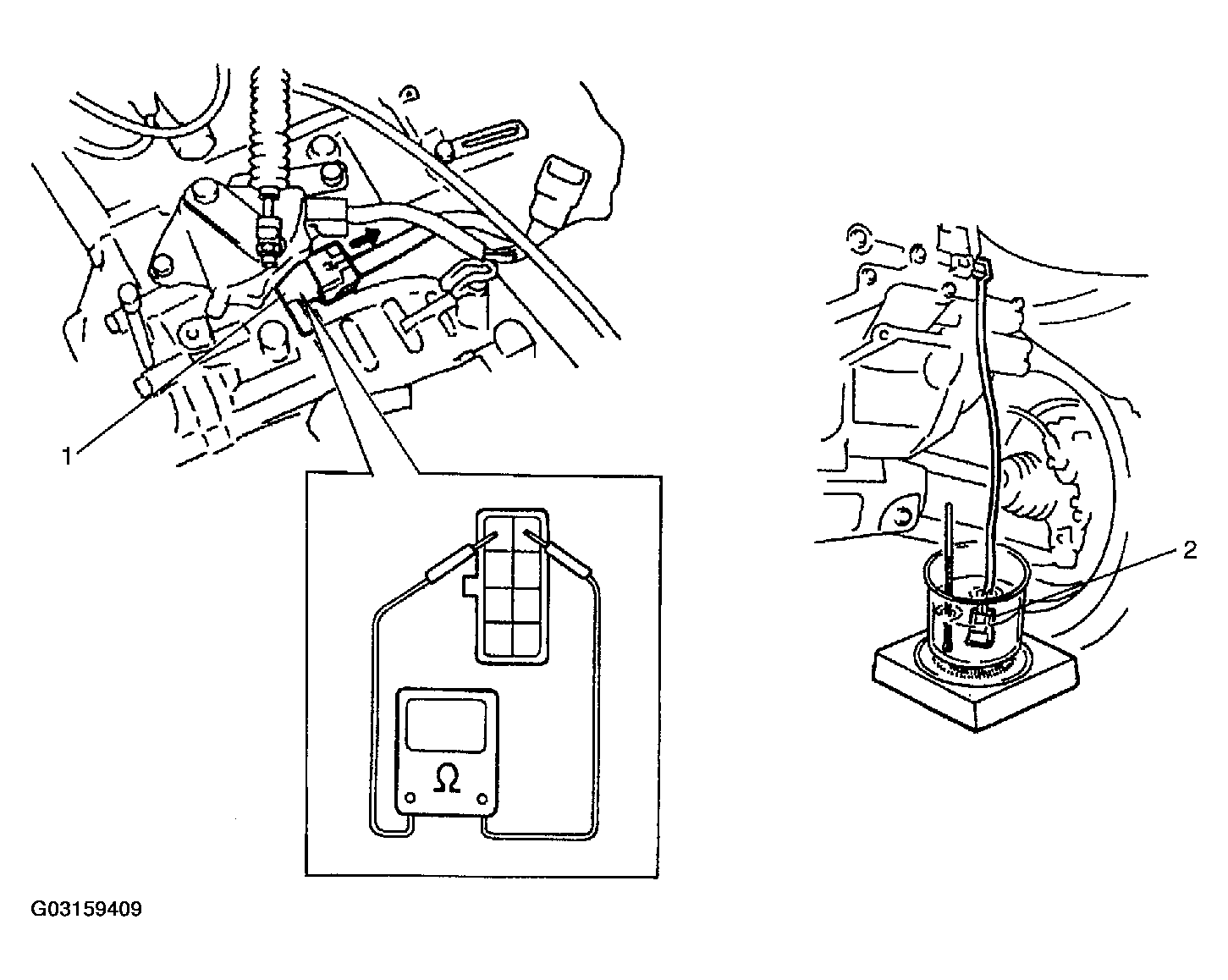

Fig 1: Checking Resistance Between Terminals Of A/T Side Valve Body Connector
Courtesy of SUZUKI OF AMERICA CORP.
Clean mating surface of A/T side cover and A/T case.
Apply sealant to mating surface of A/T side cover and A/T case by using a nozzle, referring to AUTOMATIC TRANSAXLE UNIT ASSEMBLY .
Sealant: 99000-31230
Install transaxle side cover (1).
NOTE: Apply sealant to 2 bolts (2).

"A":

Sealant: 99000-31230

Tightening torque:

Transaxle side cover bolts (a): 24 N.m (2.4 kg.m, 17.5 lb.ft)

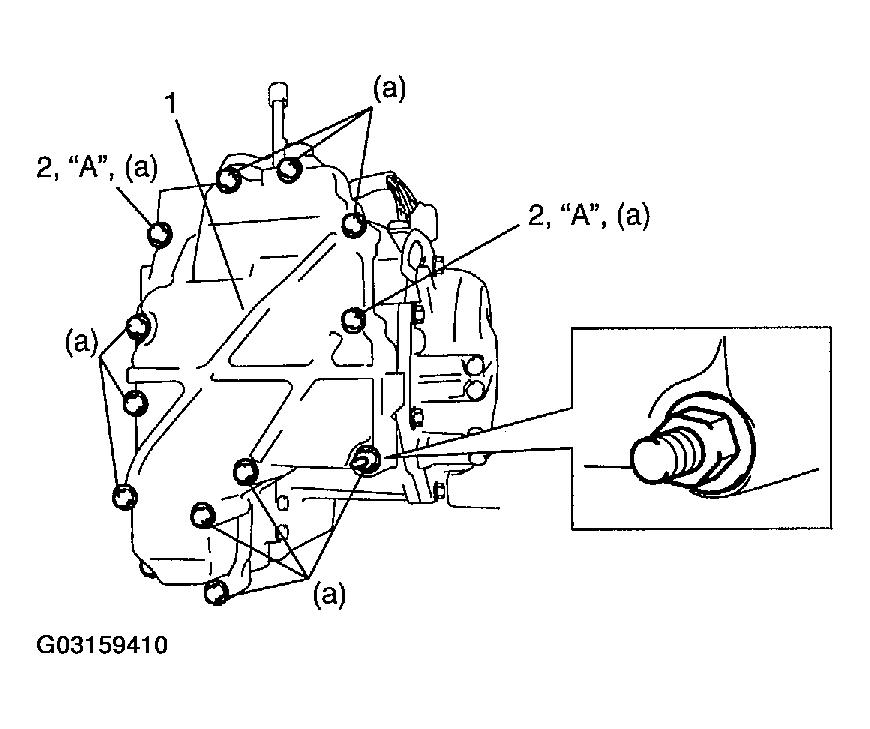

Fig 2: Installing Transaxle Side Cover
Courtesy of SUZUKI OF AMERICA CORP.
Install A/T fluid cooler pipes (1).
Tightening torque:

A/T fluid pipe union bolts (a): 27 N.m (2.7 kg.m, 19.5 lb.ft)

A/T fluid pipe nut (b): 18 N.m (1.8 kg.m, 13.0 lb.ft)

NOTE: Make sure to use new gaskets (2) for A/T fluid pipe union bolts.

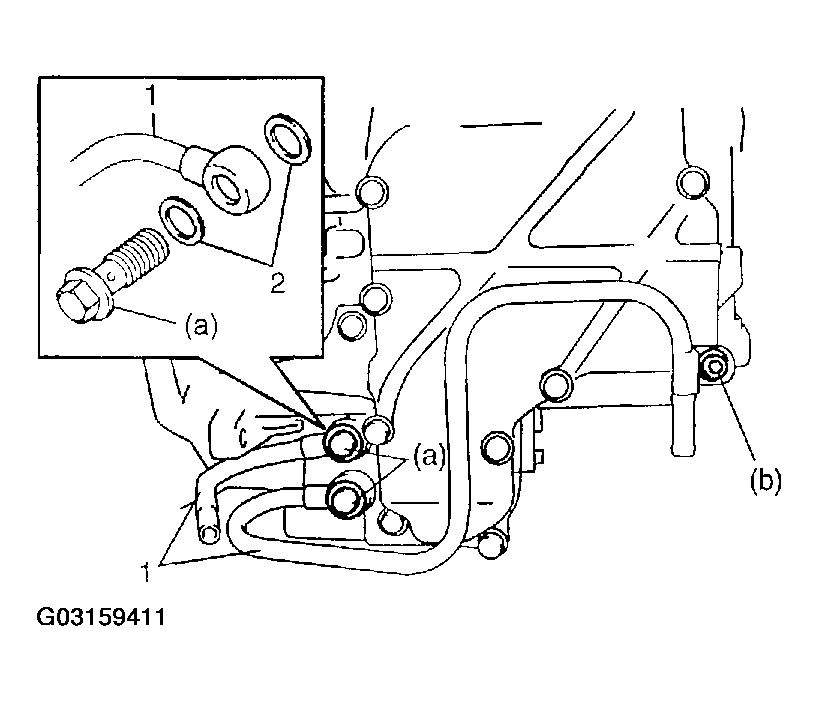

Fig 3: Installing A/T Fluid Cooler Pipes
Courtesy of SUZUKI OF AMERICA CORP.
Install A/T fluid cooler hoses.
Pour A/T fluid referring to A/T FLUID CHANGE .
Verify that there is no A/T fluid leakage.
