Selector Cable Adjustment

Remove adjuster (cable end) from selector lever pin of selector lever assembly.
Shift manual shift lever to "N" range (transmission range sensor "N" range).

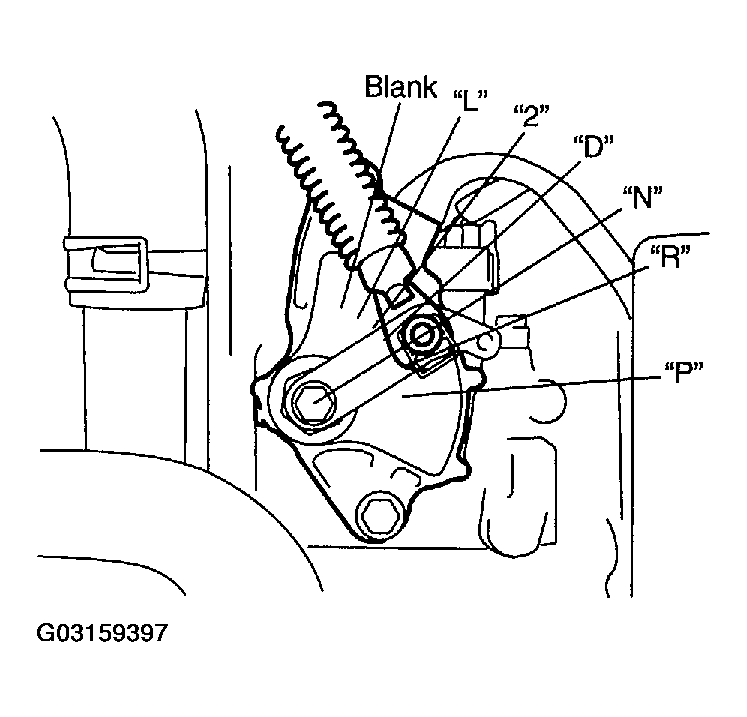

Fig 1: Shifting Manual Shift Lever To "N" Range
Courtesy of SUZUKI OF AMERICA CORP.
Release lock plate (1) which restrict moving of cable end holder (2).

Fig 2: Releasing Lock Plate
Courtesy of SUZUKI OF AMERICA CORP.
Push cable end holder (1) out from eye-end (2) using an appropriate tool (3) to disengage cable.

Fig 3: Disengaging Cable
Courtesy of SUZUKI OF AMERICA CORP.
Shift selector lever to "N" position.
Apply grease to selector lever pin and install adjuster (cable end) to it.
: Grease 99000-25010
With both selector lever and transmission range sensor kept each "N" position, drive cable end holder (1) in until it locks cable.
Slide lock plate (2) to secure cable end holder in position.

Fig 4: Securing Cable End Holder
Courtesy of SUZUKI OF AMERICA CORP.
After select cable was installed, check for the following.
- Push vehicle with selector lever shifted, to "P" range. Vehicle should not move.
- Vehicle can not be driven in "N" range.
- Vehicle can be driven in "D", "2" and "L" ranges.
- Vehicle can be backed in "R" range.
