Operation check

Check pressure control solenoid valve operation in the either manner of the following.

Using regulated DC power supply

1. Connect pressure control solenoid valve (1) with regulated DC power supply (2) as shown in the figure.
2. Turn regulated DC power supply switch ON and increase voltage of power supply keeping current within 1.0 A.
3. Check for gradual movement of valve (3) in the direction of arrow "A" as voltage is increased.
4. Check movement of valve (3) in the direction of arrow "B" as voltage is decreased.
5. Turn power supply switch OFF.

Fig 1: Checking Pressure Control Solenoid Valve Operation (Using regulated DC power supply)

Courtesy of SUZUKI OF AMERICA CORP.

Not using regulated DC power supply

1. Connect pressure control solenoid valve (1) to battery (2) setting the 8 - 10 W bulb (4) on the way as shown in the figure.
2. Check for movement of valve (3) in the direction of arrow "A".
3. Disconnect pressure control solenoid valve (1) from battery (2) and check movement of valve (3) in the direction of arrow "B" as shown in the figure.

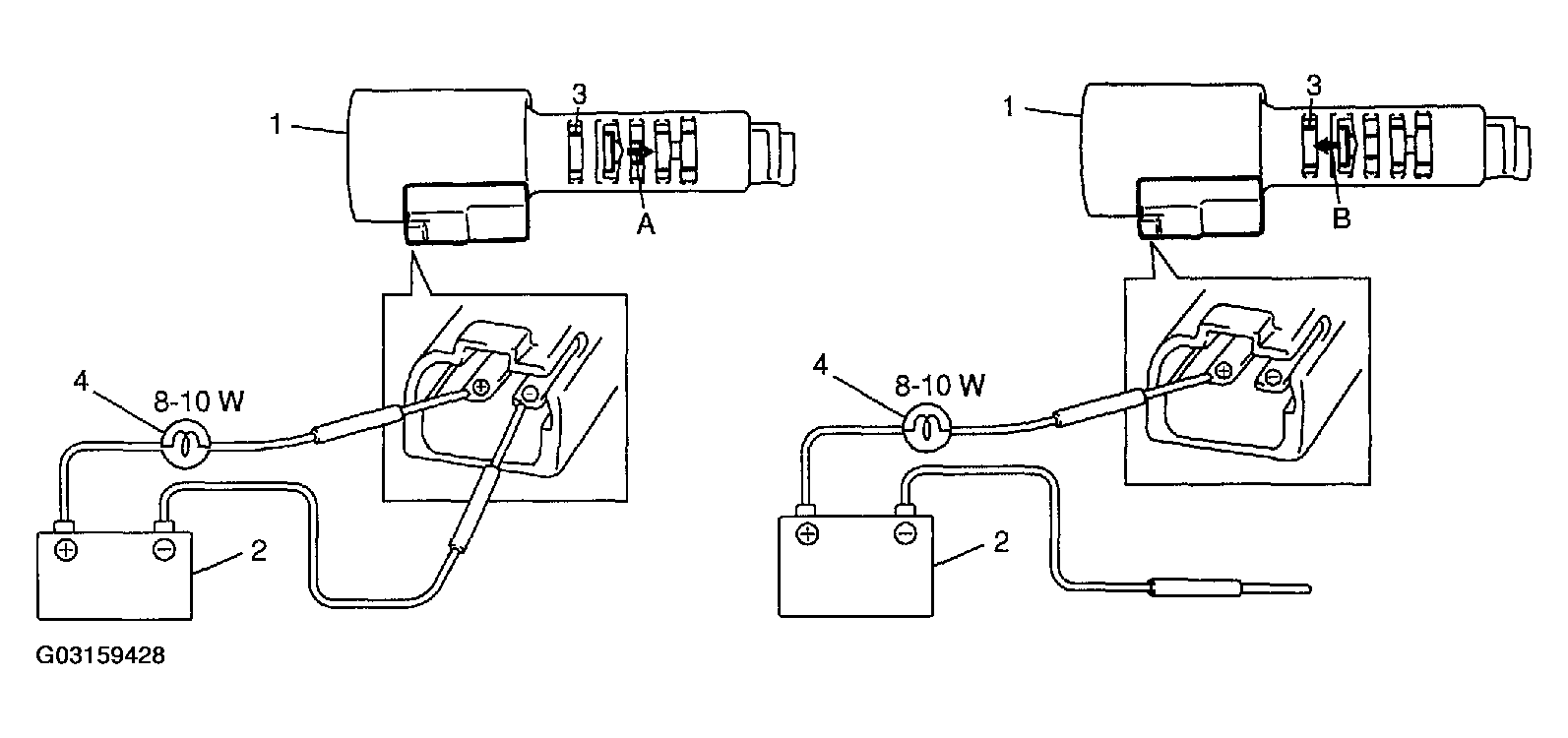

Fig 2: Checking Pressure Control Solenoid Valve Operation (Not Using Regulated DC Power Supply)

Courtesy of SUZUKI OF AMERICA CORP.
