A/T Description

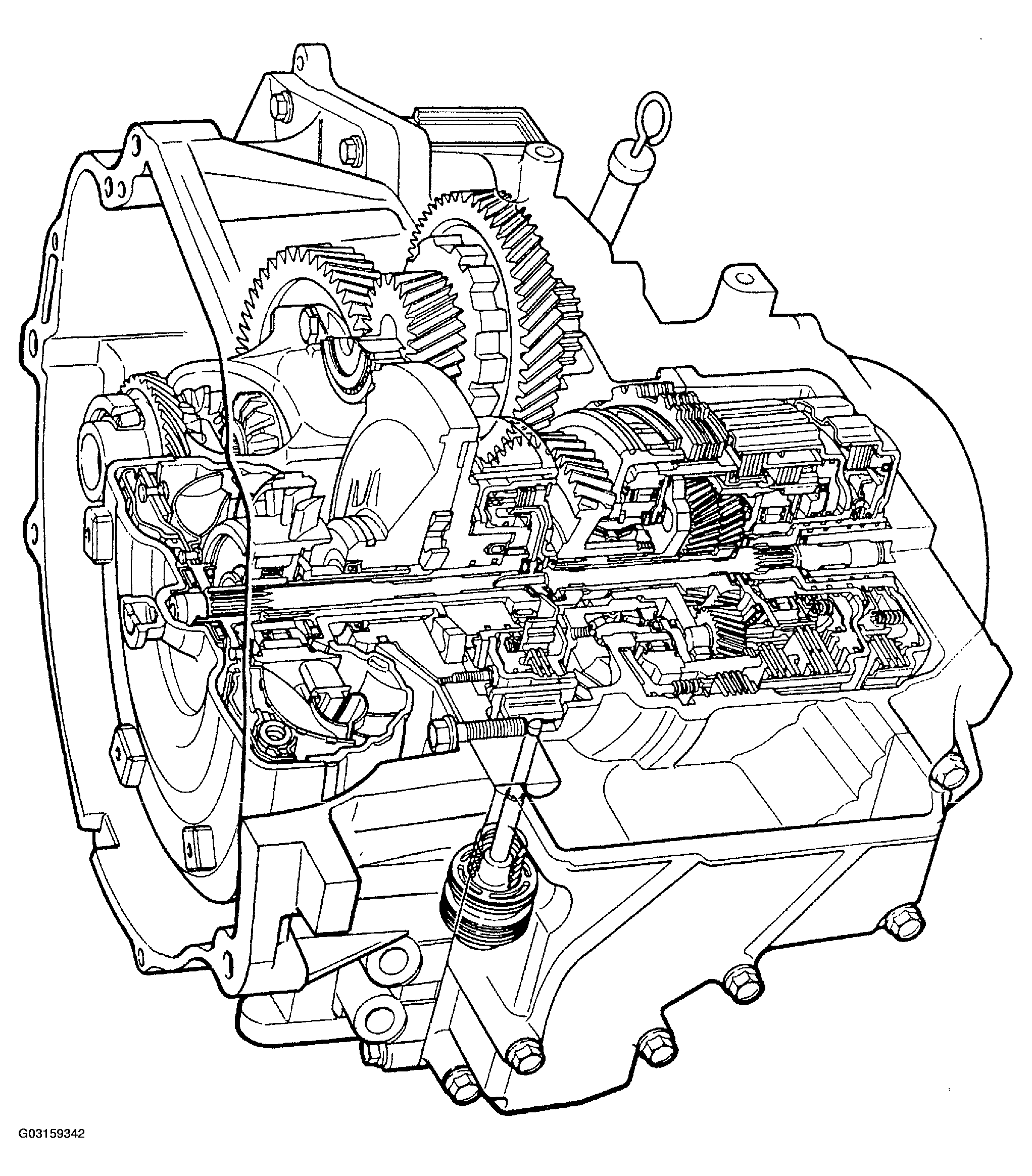

This automatic transaxle is a full automatic type with 3-speed plus overdrive (O/D).

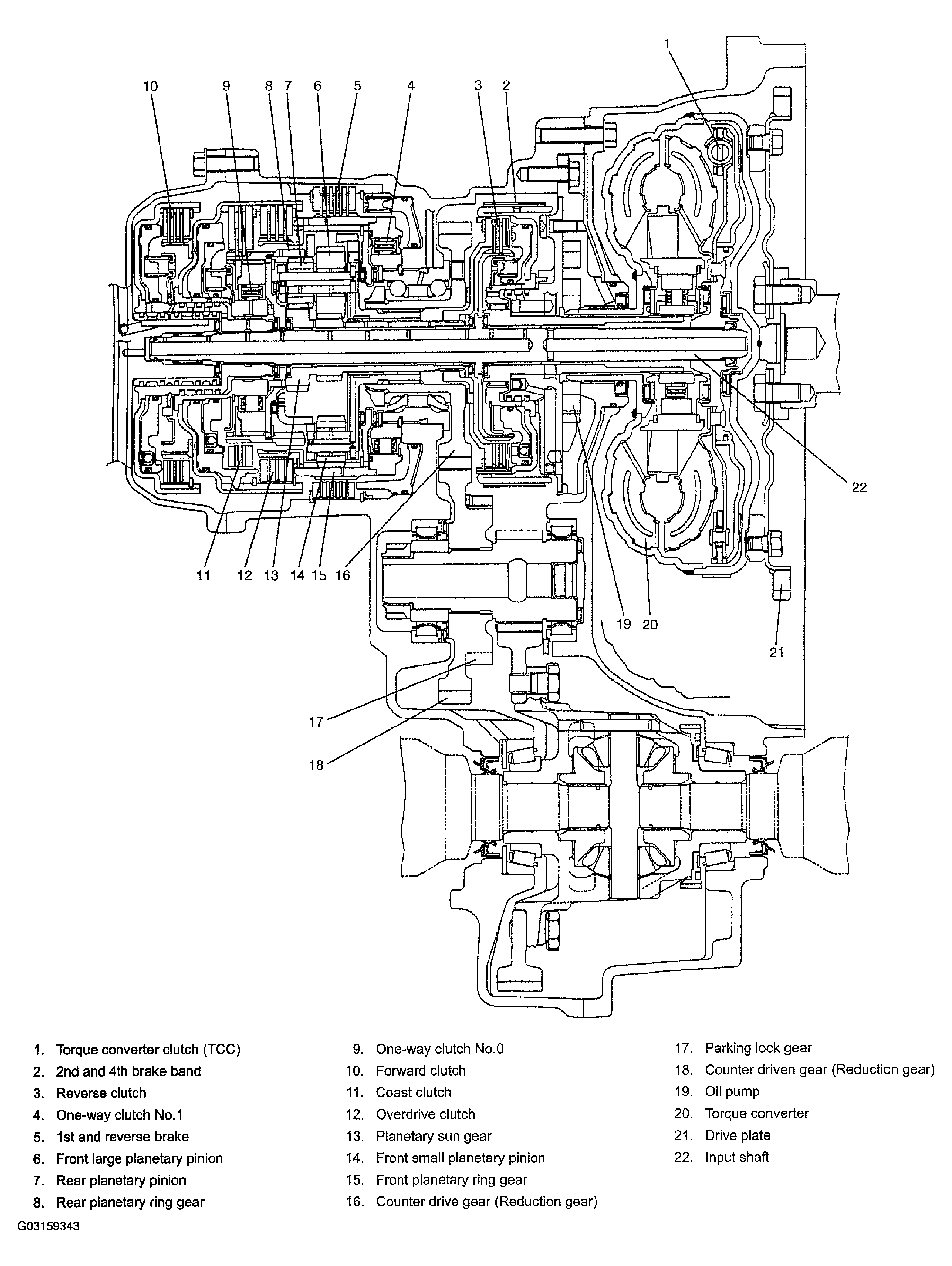

The torque converter is a 3-element, 1-step and 2-phase type and is equipped with an electronically controlled lock-up mechanism. The gear shift device consists of 2 sets of planetary gear units, 4 disc type clutches, a disc type brake, a band type brake and 2 one-way clutches. The gear shift is done by selecting one of 6 positions ("P", "R", "N", "D", "2" and "L") by means of the select lever installed on the floor. On the shift knob, there is an overdrive (O/D) off switch which prevents shift-up to the overdrive mode.
Specifications
| Item | Specifications | |||
|---|---|---|---|---|
| Torque converter | Type Stall torque ratio |
3-element, 1-step, 2-phase type (with TCC (lock-up) mechanism) 1.90 - 2.05 |
||
| Oil pump | Type Drive system |
Internal gear type oil pump Engine driven |
||
| Gear change device | Type | Forward 4-step, reverse 1-step planetary gear type | ||
| Shift position | "P" range Gear in neutral, output shaft fixed, engine start | |||
| "R" range Reverse | ||||
| "N" range Gear in neutral, engine start | ||||
| "D" range (O/D ON) Forward 1st <-> 2nd <-> 3rd <-> 4th (O/D) automatic gear change | ||||
| "D" range (O/D OFF) Forward 1st <-> 2nd <-> 3rd <-> 4th automatic gear change | ||||
| "2" range Forward 1st <-> 2nd <-> 3rd automatic gear change | ||||
| "L" range Forward 1st <-> 2nd reduction, and fixed at 1st gear | ||||
| Gear ratio | 1st | 2.807 | Number of teeth Front sun gear: 26 Rear sun gear: 35 Front large pinion gear: 28 Front small pinion gear: 19 Rear pinion gear: 19 Front internal gear: 98 Rear internal gear: 73 |
|
| 2nd | 1.479 | |||
| 3rd | 1.000 | |||
| 4th (overdrive gear) | 0.734 | |||
| Reverse (reverse gear | 2.769 | |||
| Control elements | Wet type multi-disc clutch ... 4 sets Band type brake ... 1 set Wet type multi-disc brake ... 1 sets One-way clutch ... 2 sets |
|||
| Reduction gear ratio | 1.018 | |||
| Final gear reduction ratio | 3.782 | |||
| Lubrication | Lubrication system | Force feed system by oil pump | ||
| Cooling | Cooling system | Radiator assisted cooling (water-cooled) | ||
| Fluid used | DEXRON®-III or DEXRON®-IIE | |||
