Throttle Body and Intake Manifold Components

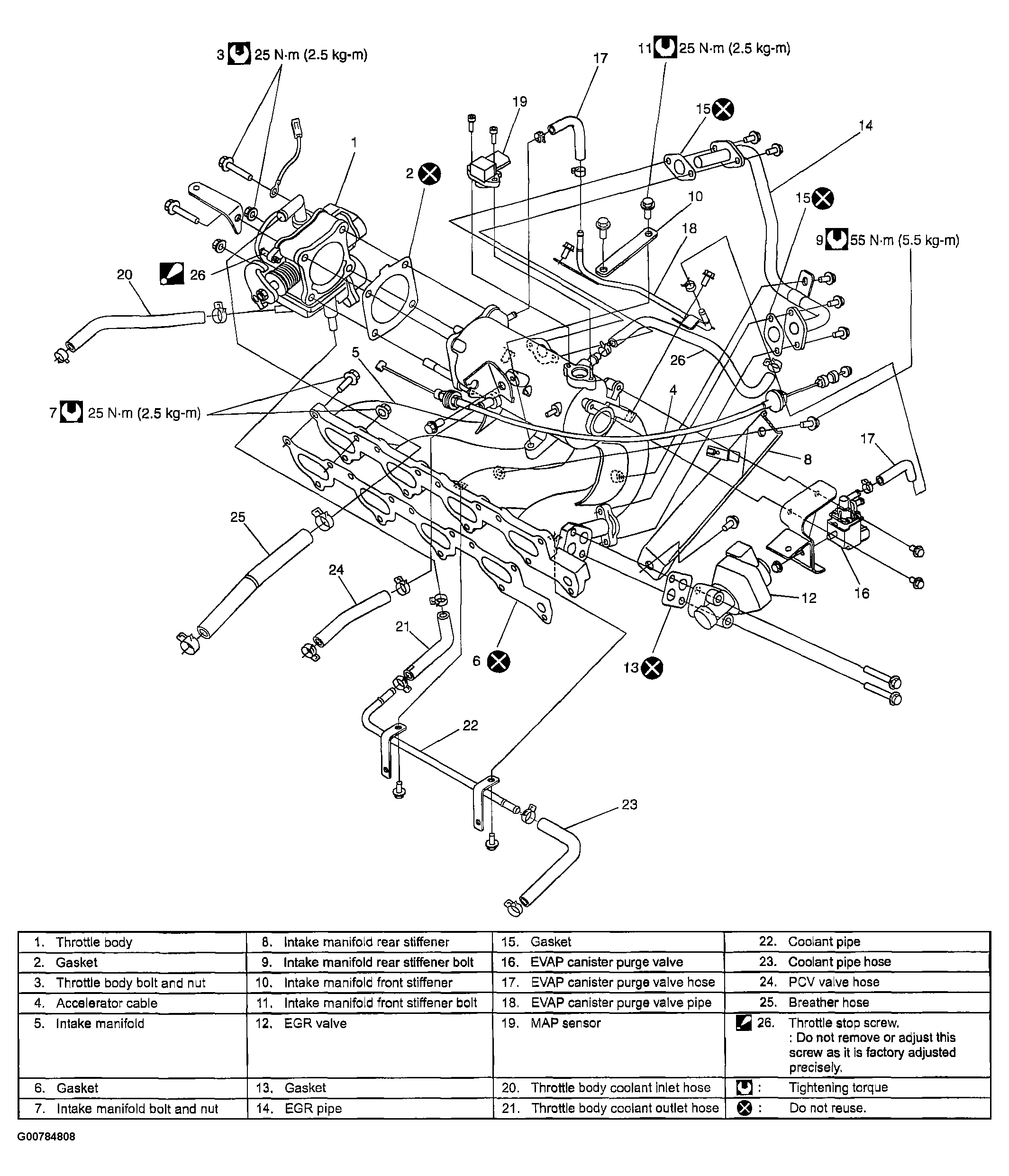

Fig 1: Identifying Throttle Body & Intake Manifold Components
G00784808Courtesy of SUZUKI OF AMERICA CORP.
