Differential to Left Case

Reassembly
1. Install differential assembly into right case.





2. Measure clearance "A" (between differential side face and side bearing outer race (2)) and "B" (bearing retainer (1)).
3. Select the shim.





Bearing shim

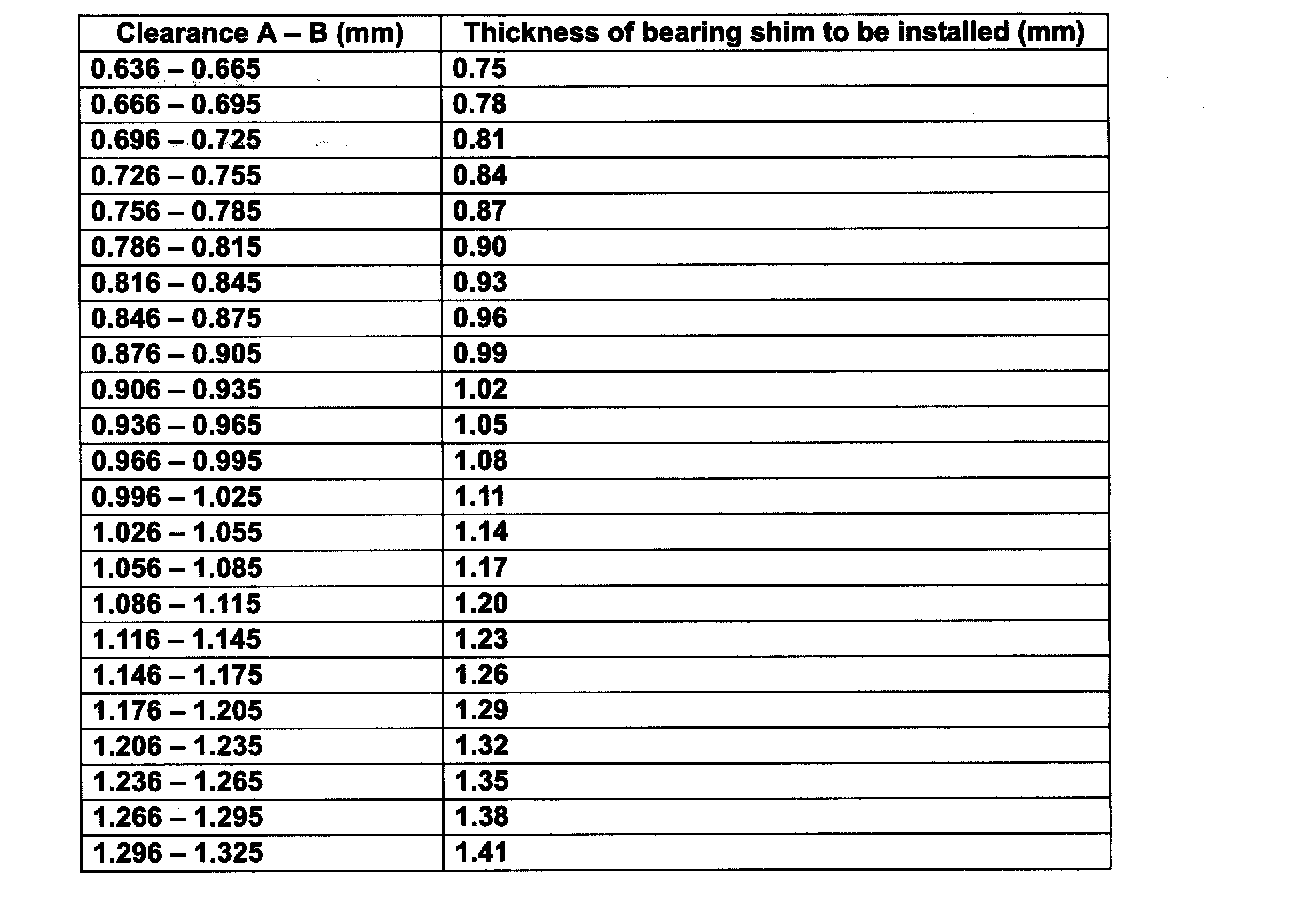

Available differential bearing shim thickness





4. Apply oil to O-ring and insert VSS (3), then tighten bolt.
Tightening torque
VSS bolt (a): 5.5 Nm (0.55 kgf-m, 4.0 ft. lbs.)
