Instrument Panel

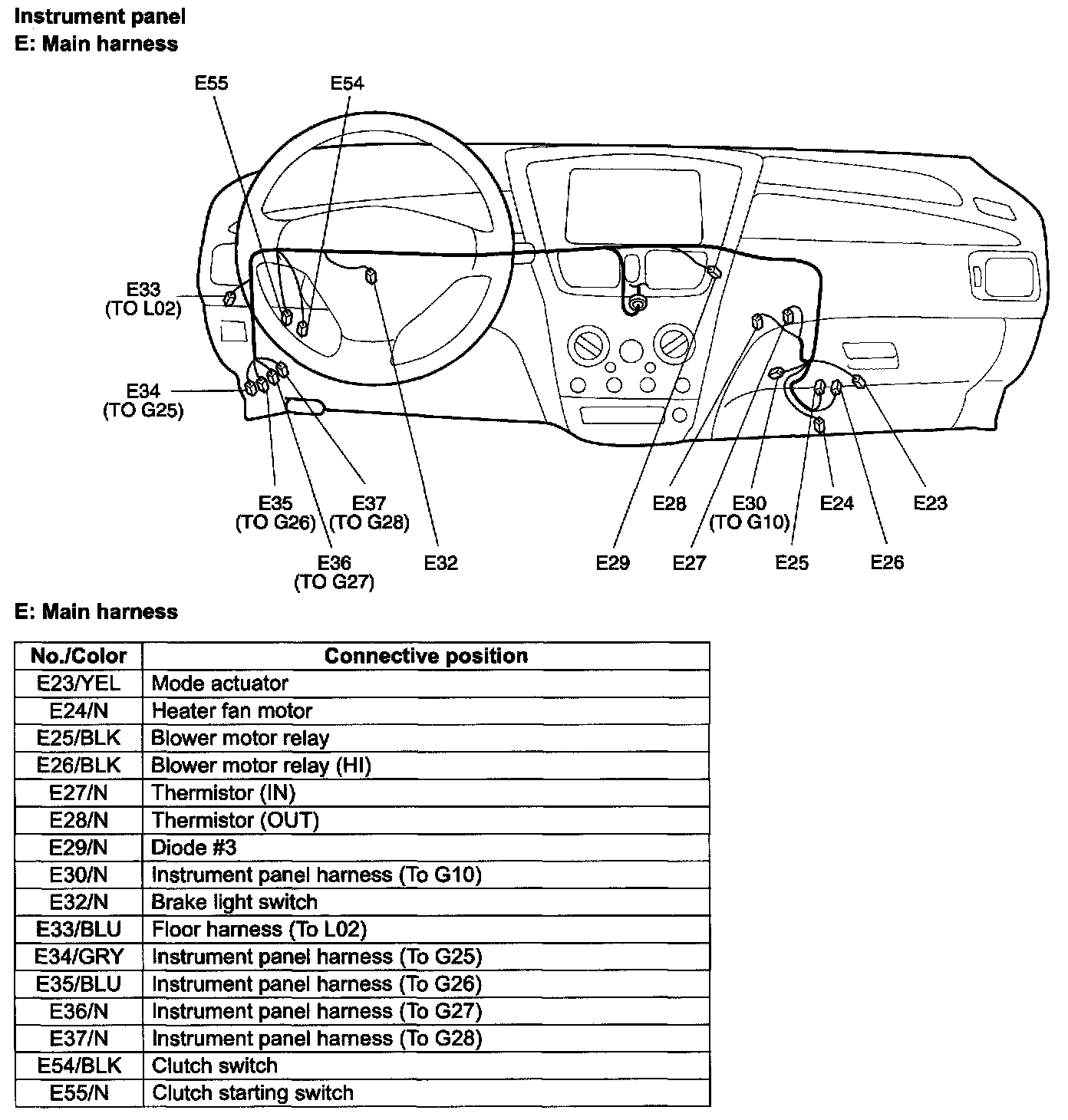

E:Main Harness - Connective Position:

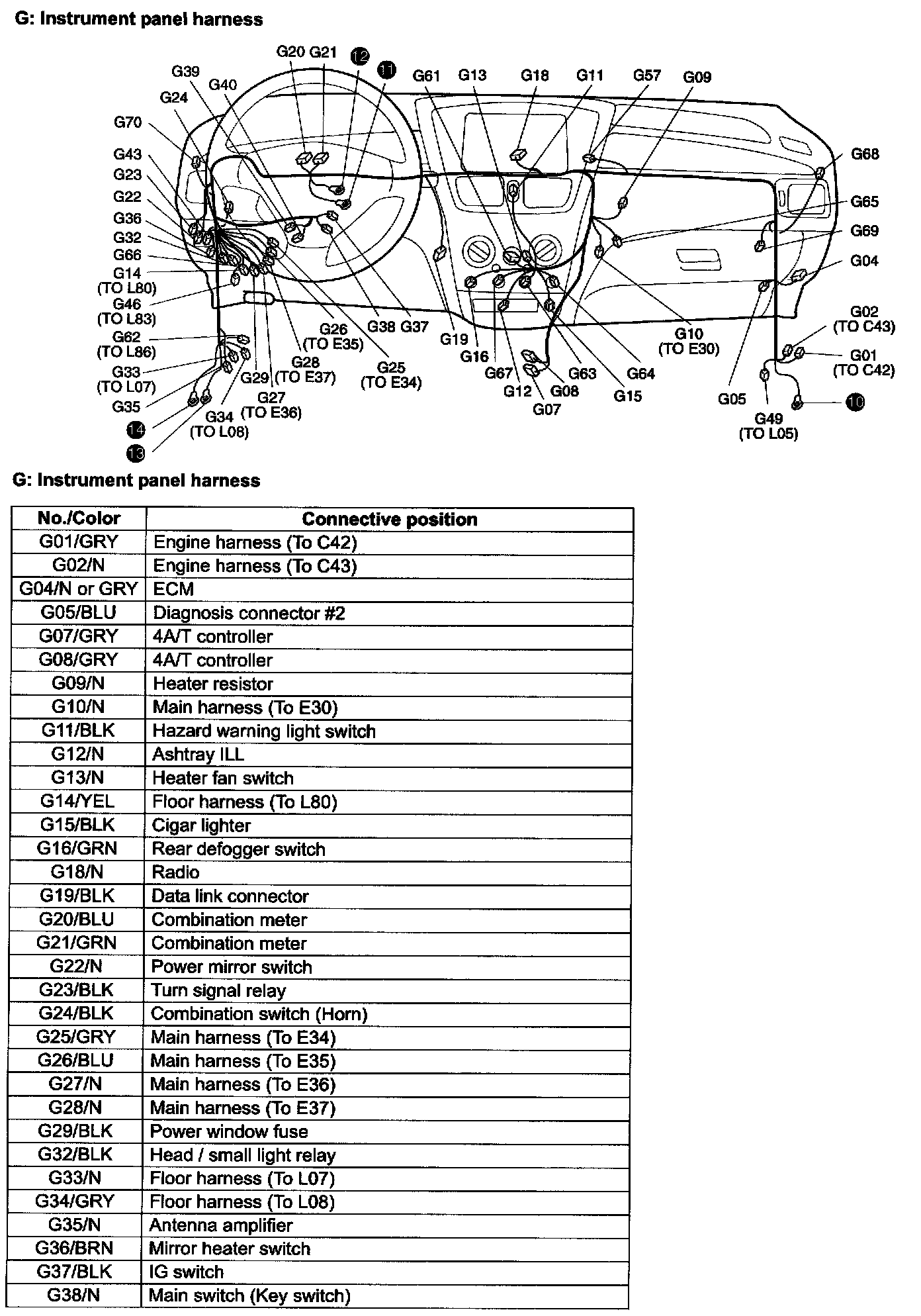

G : Instrument Panel Harness - Connective Position:



G:Instrument Panel Harness - Connective Position (Contd):
