A/C Signal Circuits Check (Vehicle With A/C)

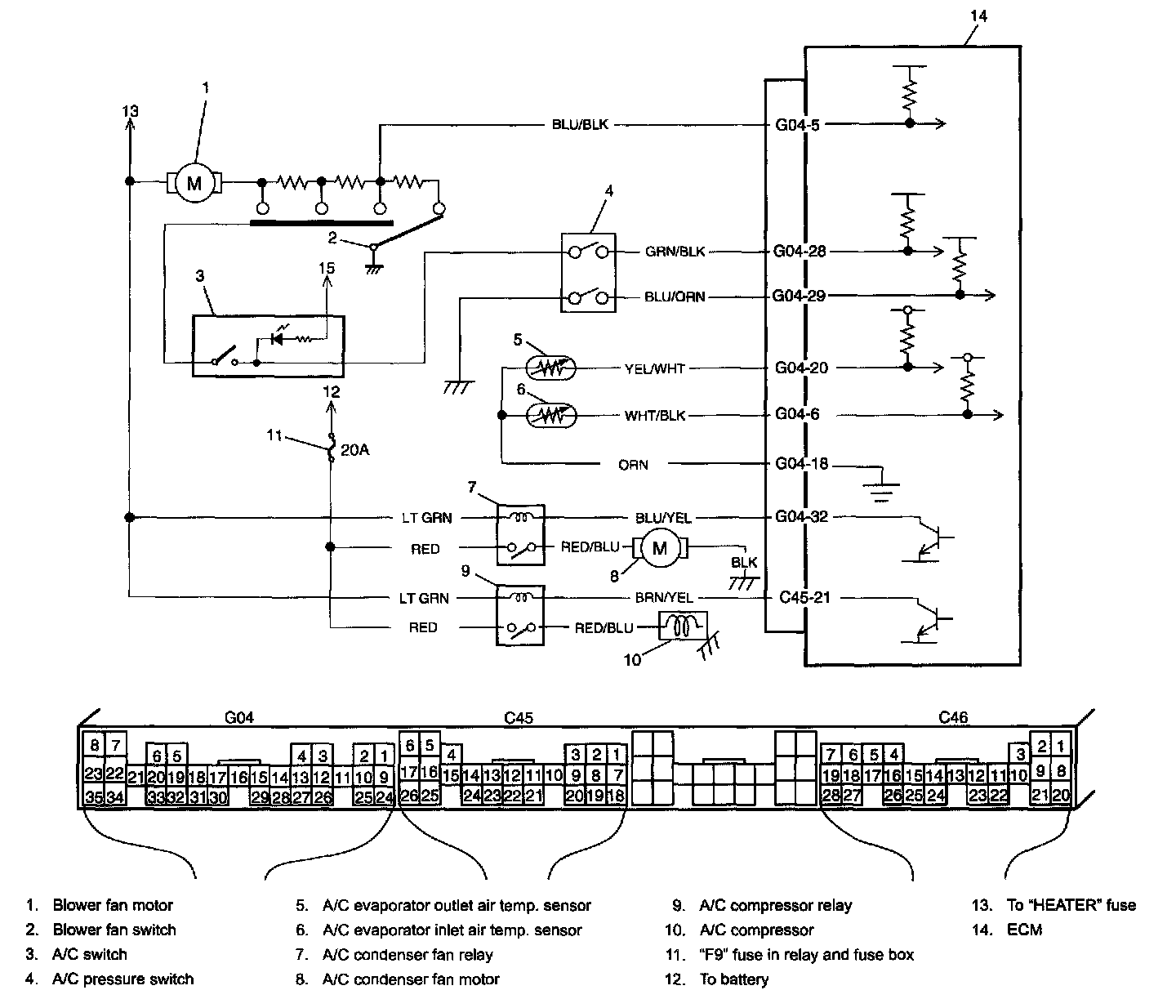

A/C Signal Circuits Check (Vehicle With A/C):

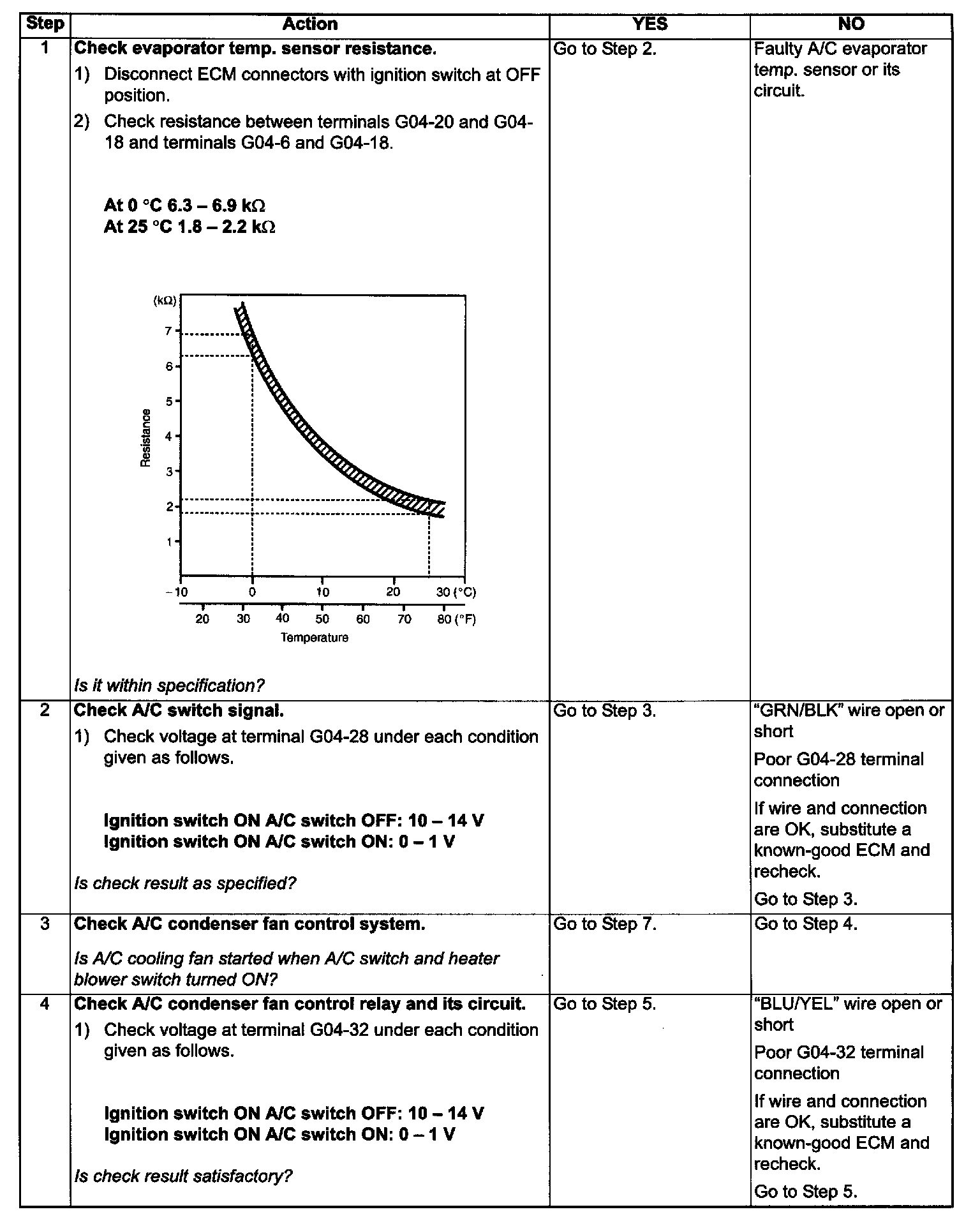

Step 1 - 4:

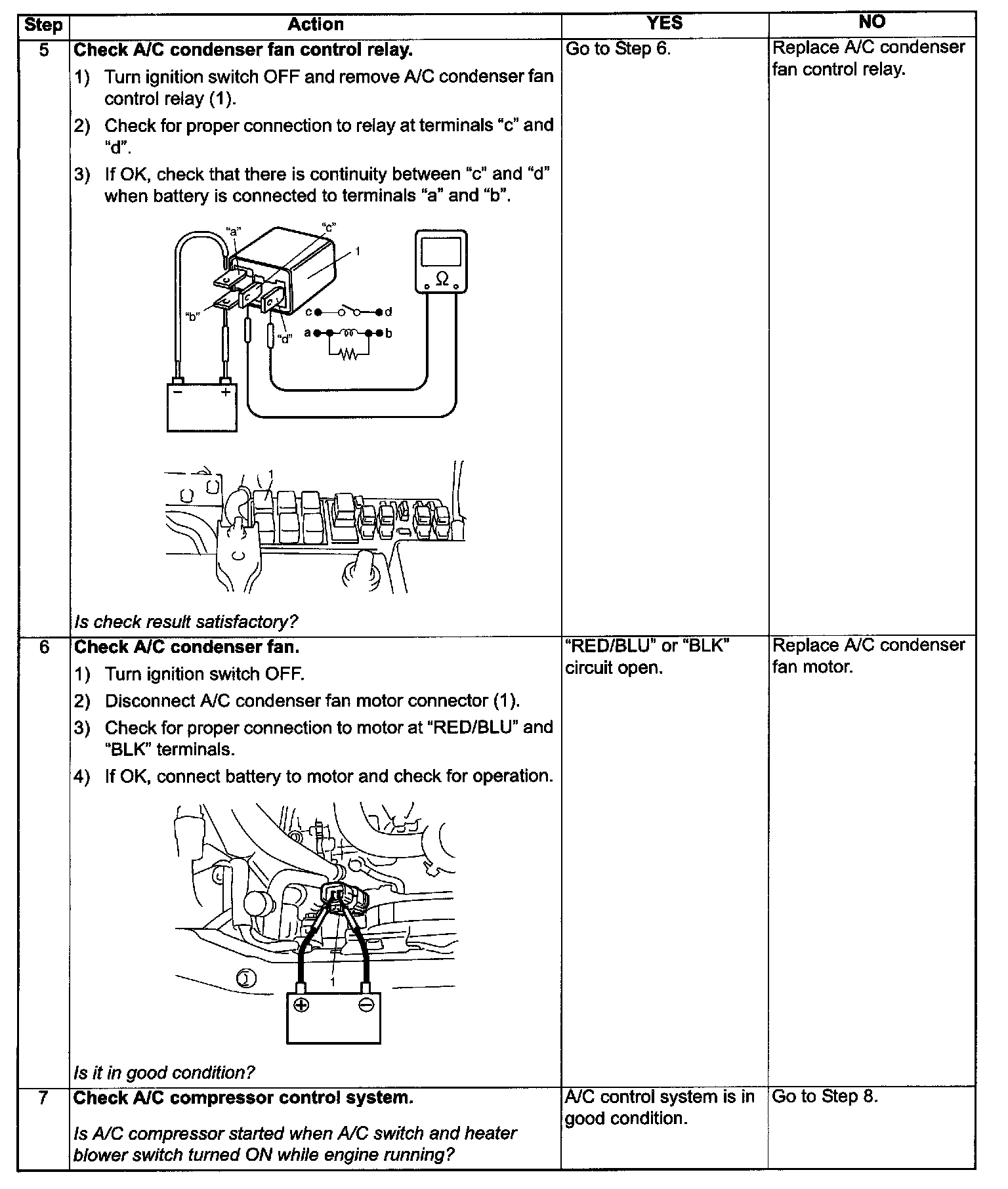

Step 5 - 7:

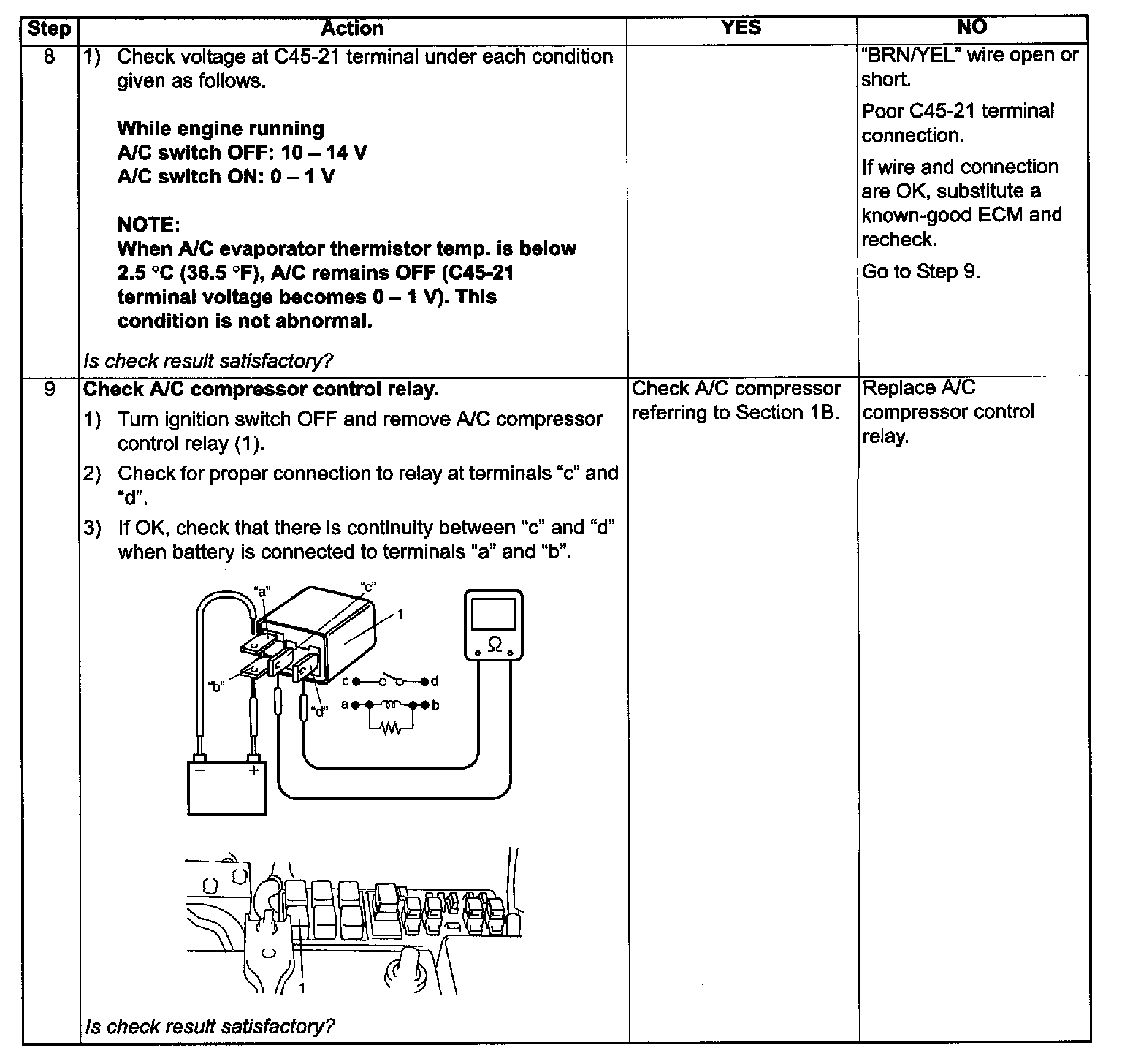

Step 8 - 9:
