Turn Signals

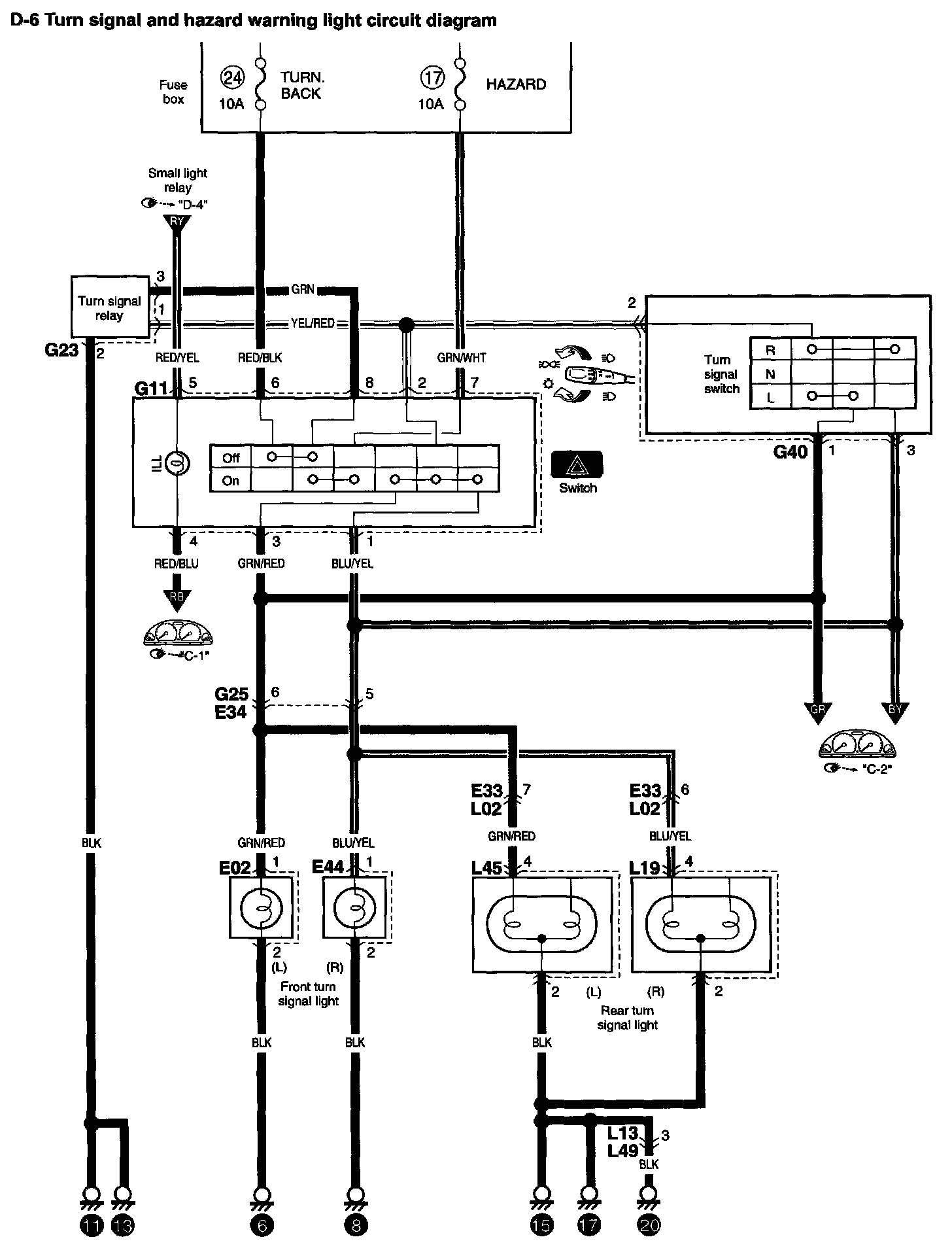

D-6 Turn Signal And Hazard Warning Light Circuit Diagram:

NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
