License Plate Lamp

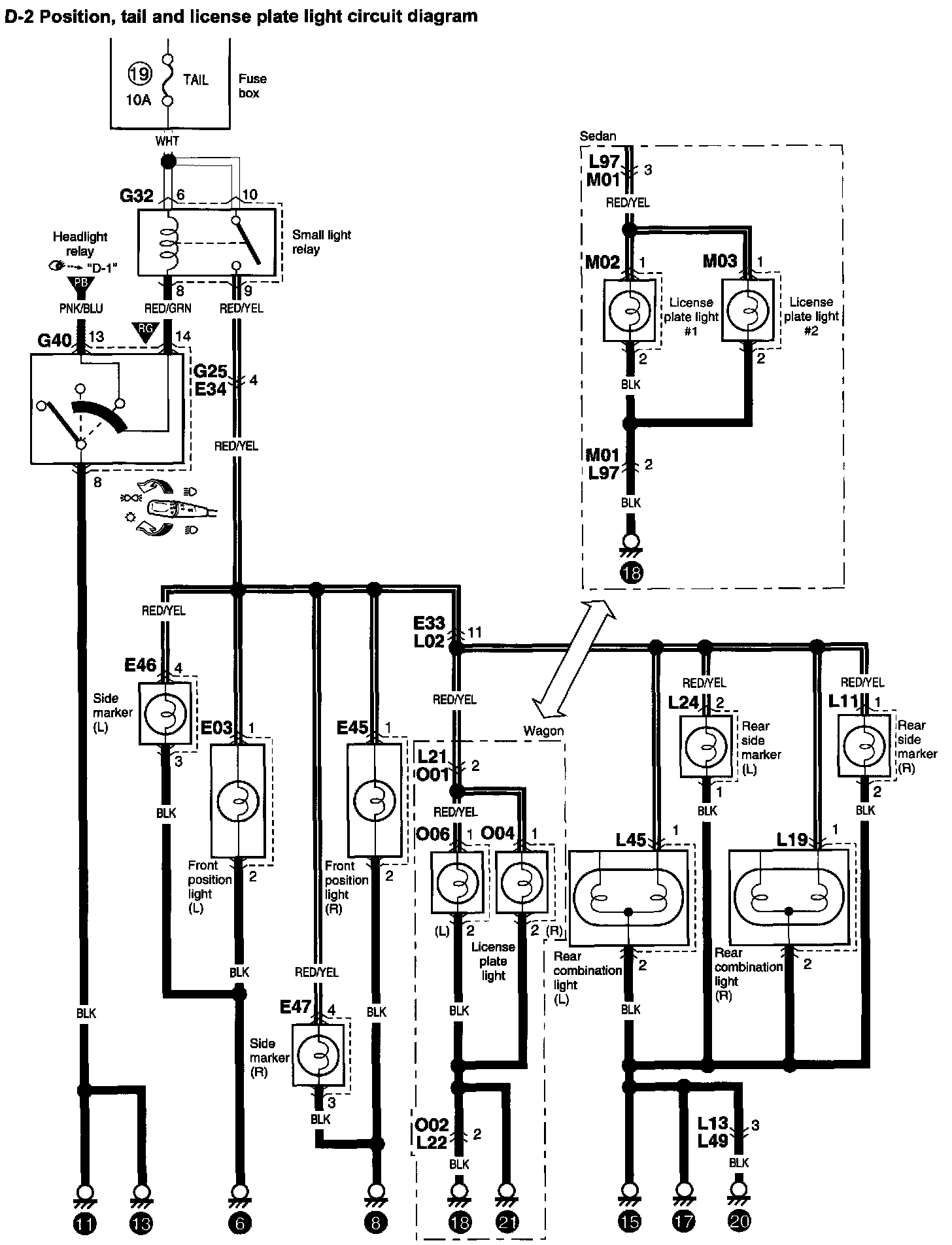

D-2 Position, Tail And License Plate Light Circuit Diagram:

NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
