Cooling System

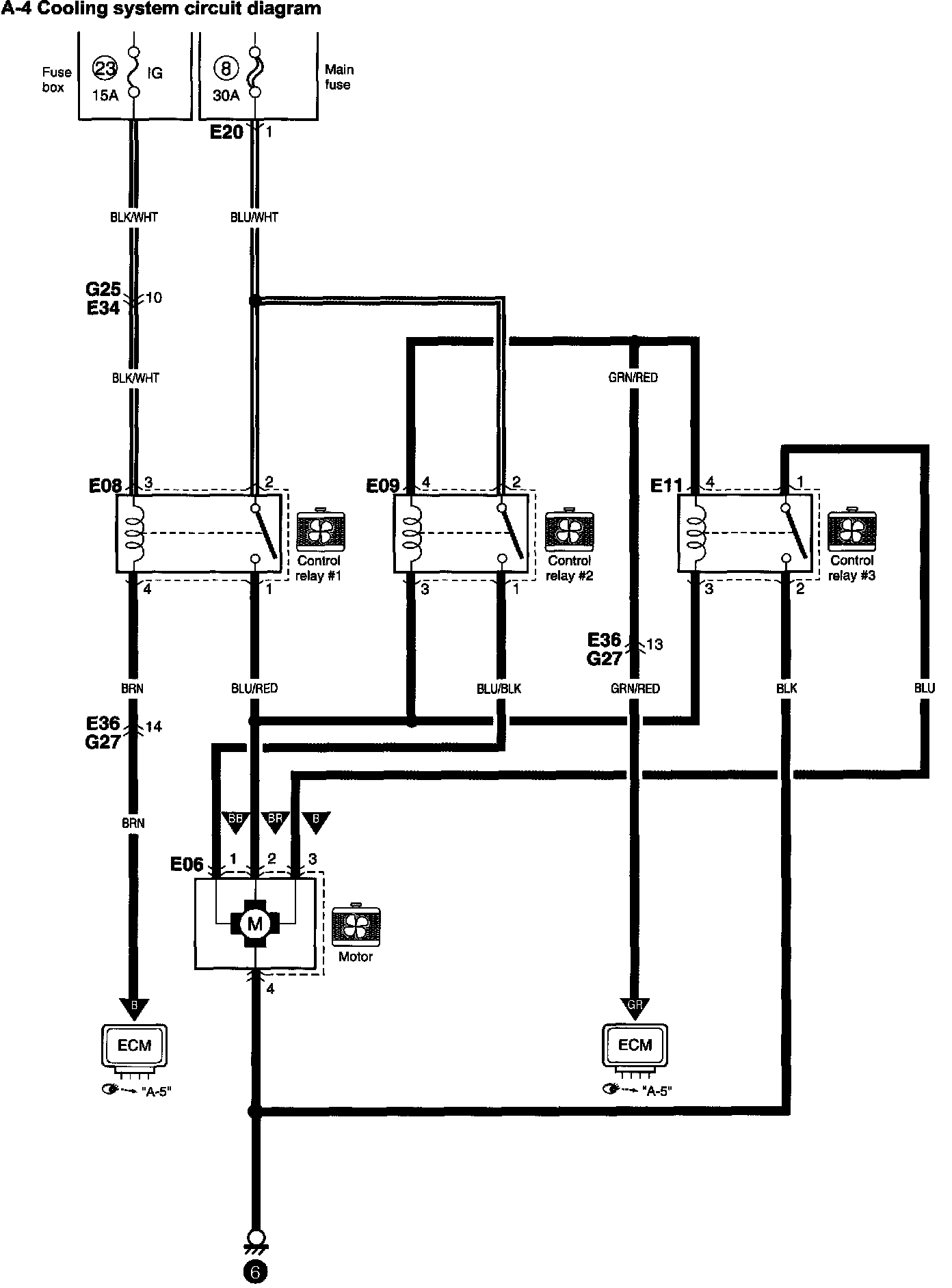

A-4 Cooling System Circuit Diagram:






NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagram by Letter (A Thru Z) Electrical Diagrams
