System Diagram

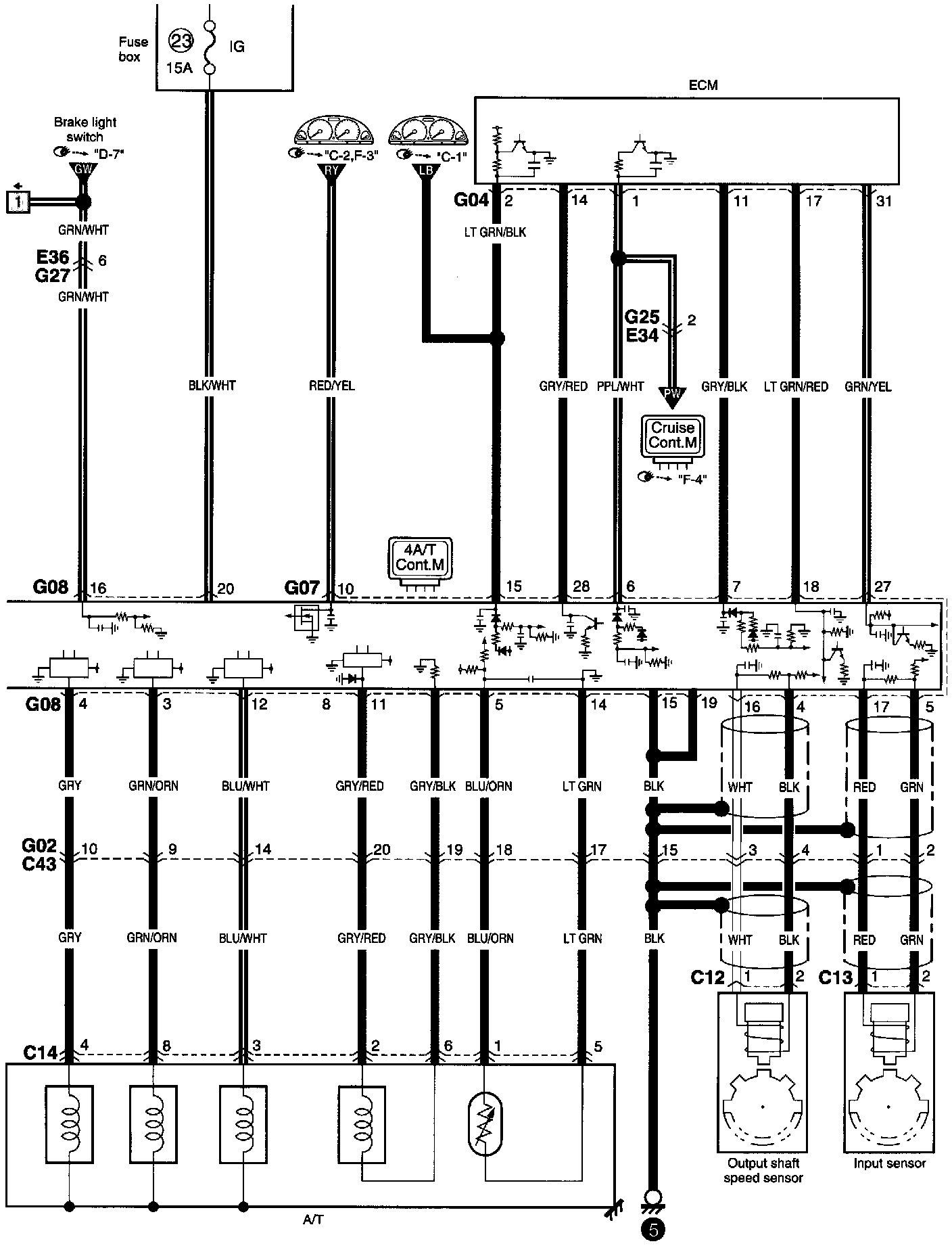

A-6 4 A/T Control System Circuit Diagram Part 1:

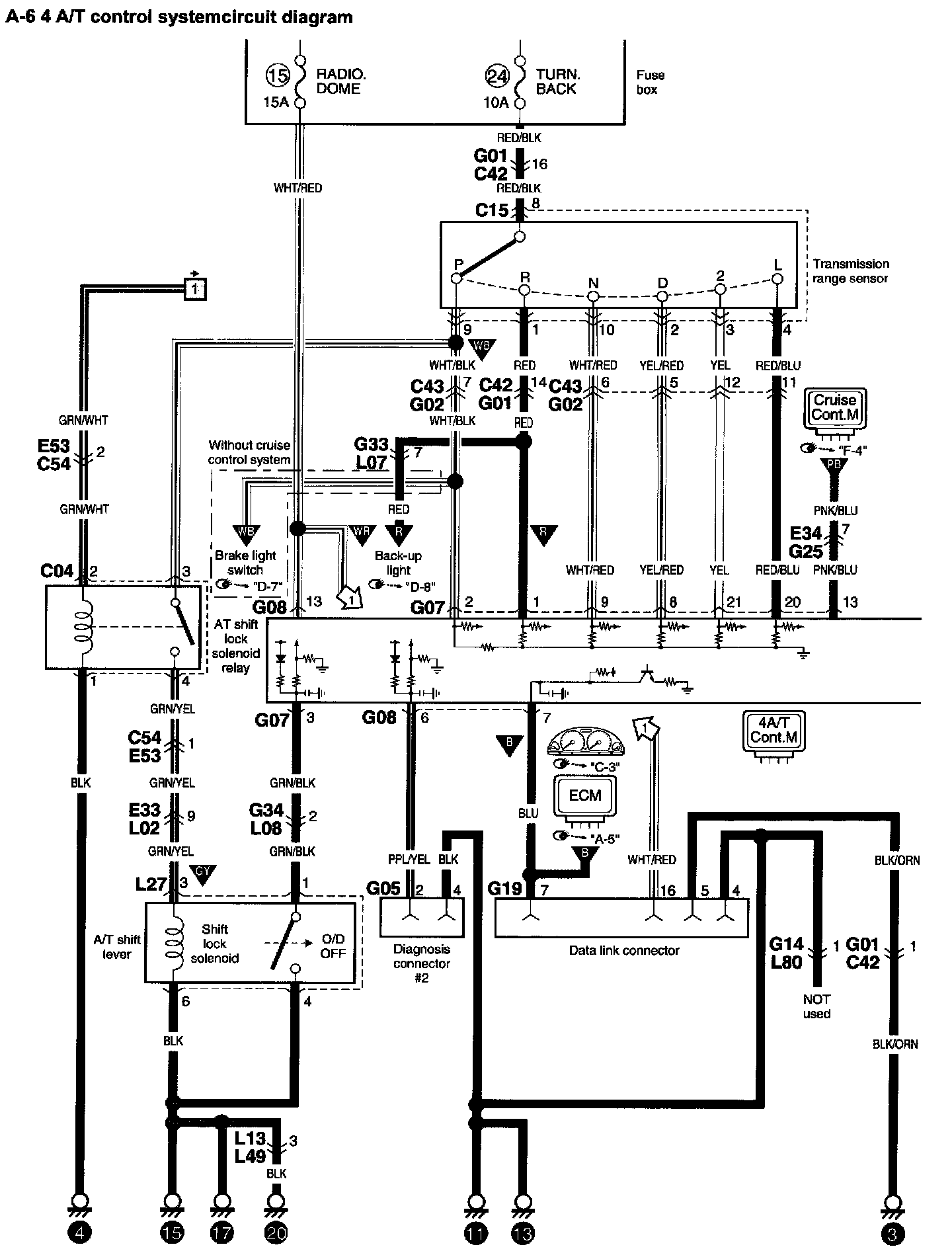

A-6 4 A/T Control System Circuit Diagram Part 2:

NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
