Air Bag Systems

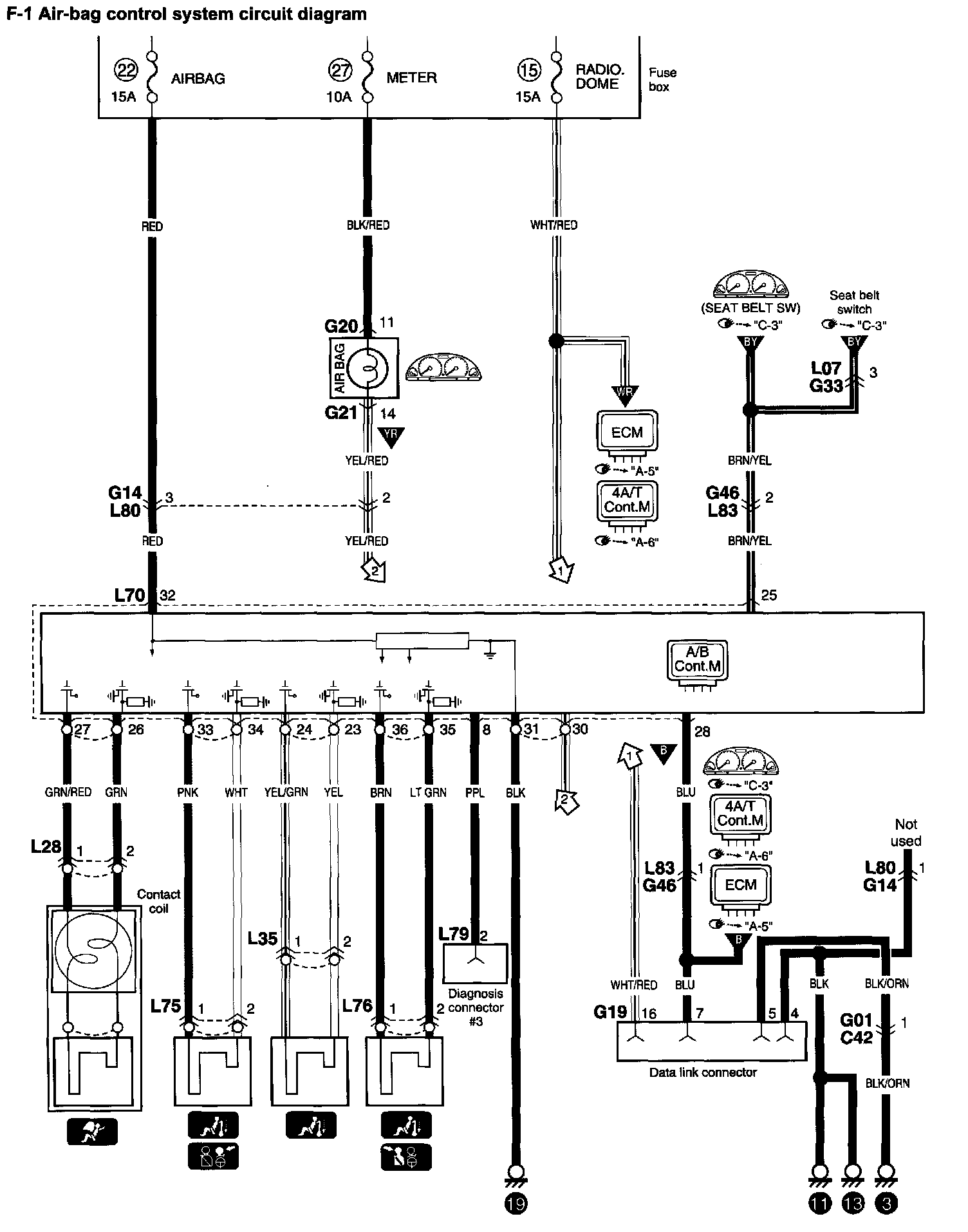

F-1 Air-bag Control System Circuit Diagram:

NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
