L Connectors

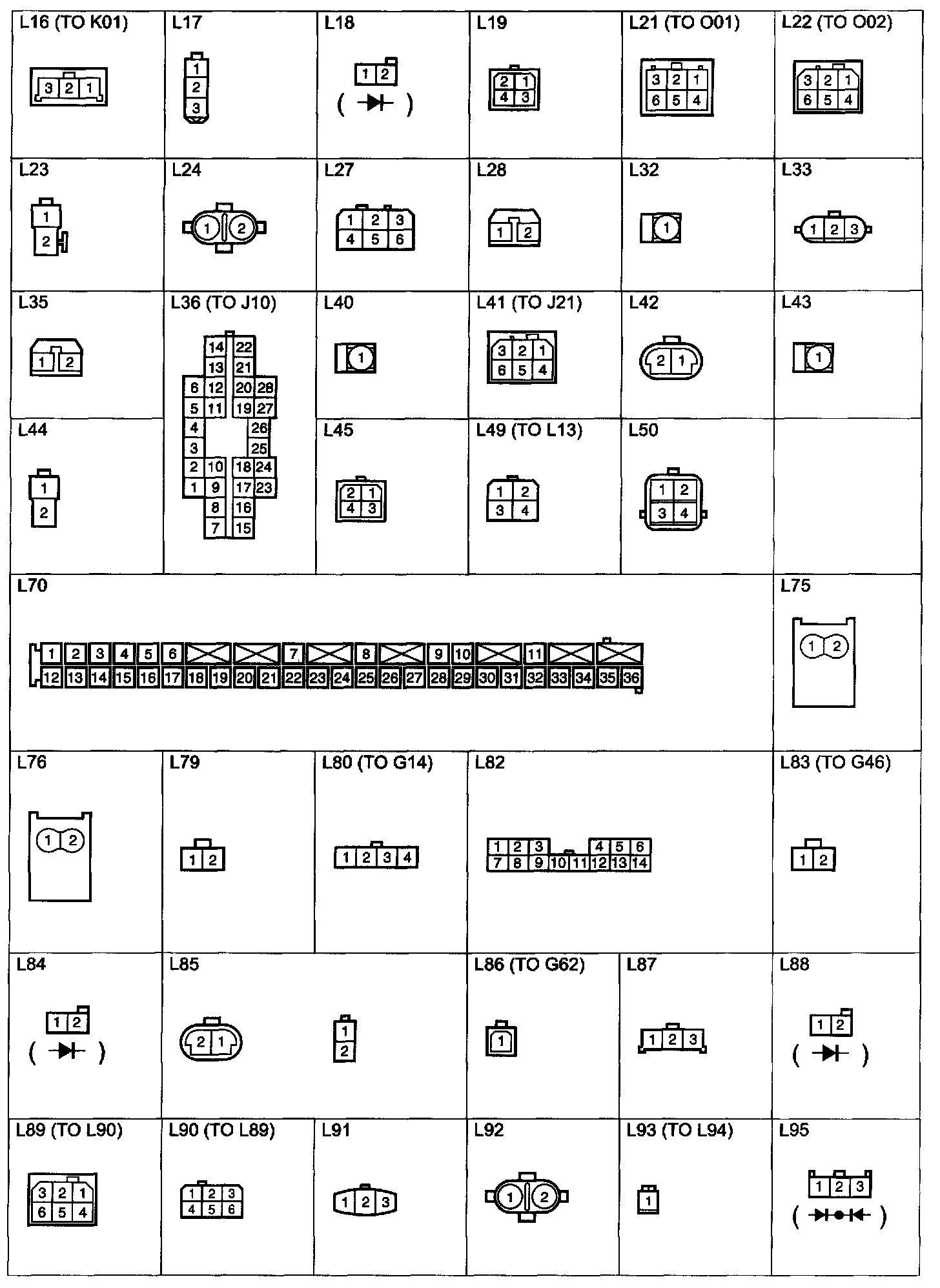

L Connector Part 1 (L01-L15):
L Connector Part 2 (L16 - L95):
L Connector Part 3 (L96 - L101):
