Procedures

Removal
1. Remove spot light assembly (1), if equipped.




2. Remove sun visor (2).




3. Remove doom light assembly (1).

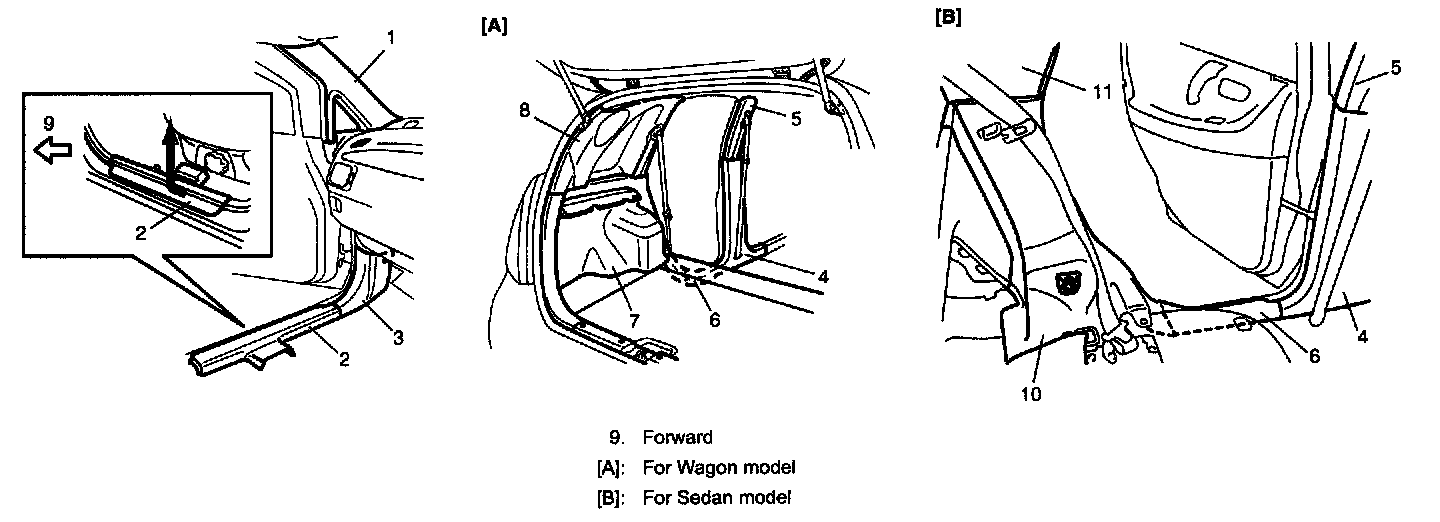

4. Remove front pillar trim (1), front side sill scuff (2), dash side trim (3), center pillar inner trim (4), center pillar inner upper trim (5), rear side sill scuff (6), quarter inner trim (7), quarter window trim (8), rear side lower trim (10) and rear side upper trim (11).
5. Remove assistant grip (1).




6. Remove head lining clips (2) and remove head lining (3).

Installation
Reverse removal procedure to install head lining noting the following instructions.




- Tighten sun visor screw to specified torque.
