DTC Table Transmission Controls

DTC Table

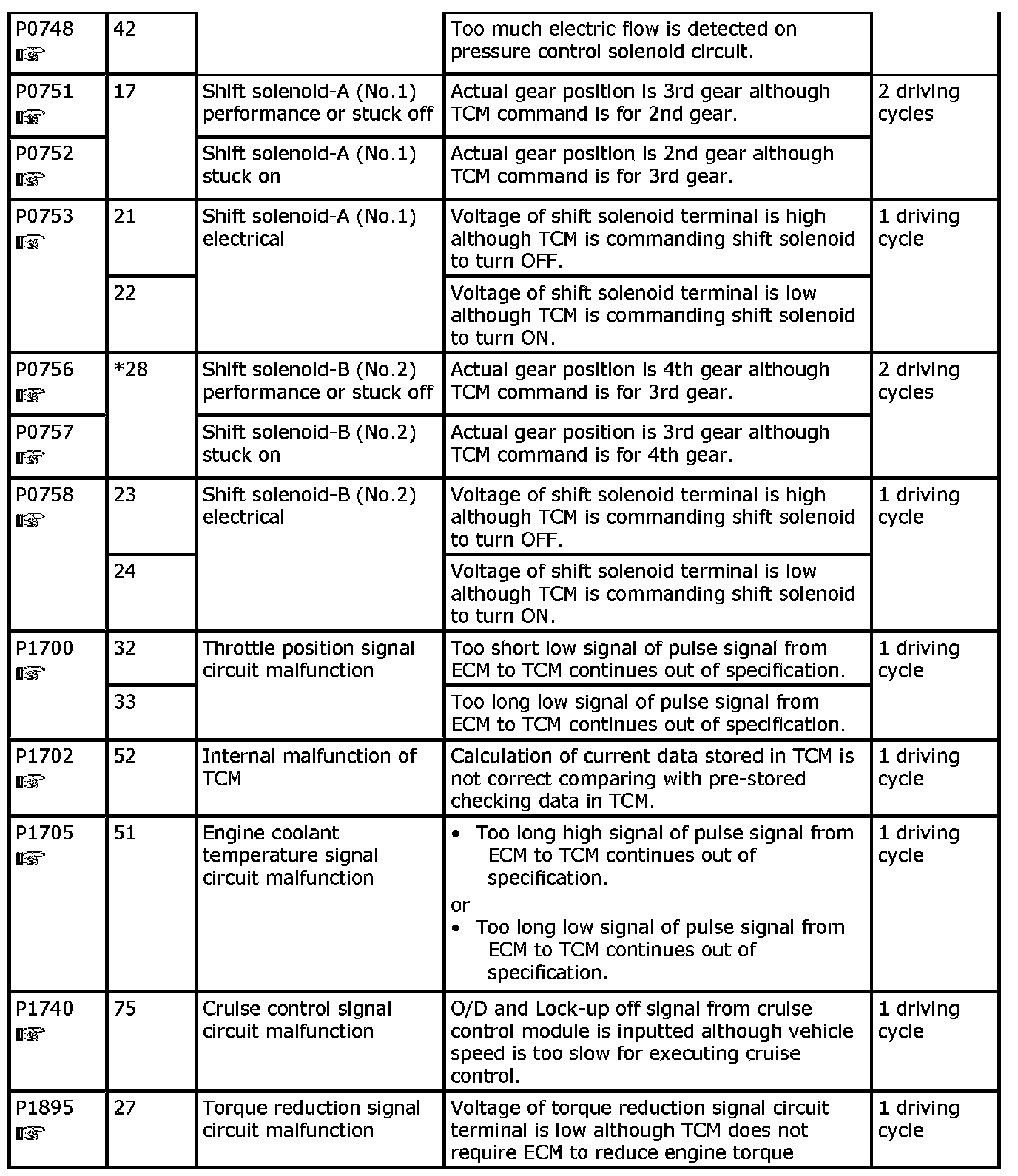

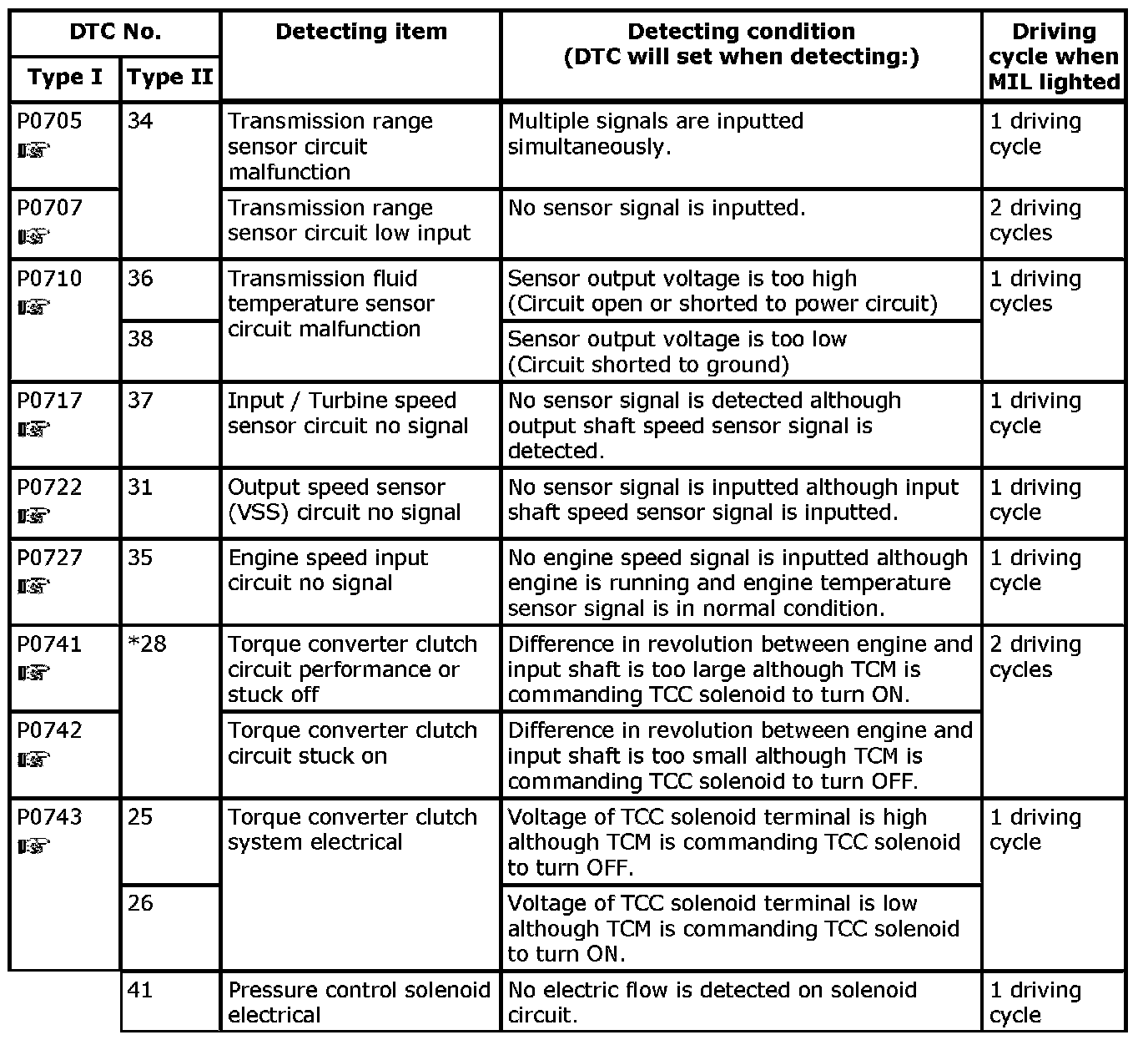

NOTE: Confirmation available table of automatic transaxle related DTC is shown in the following.












NOTE:
When DTC No.28 is displayed on digital display odometer, use SUZUKI scan tool to identify what item is detected.
