Keyless Entry Module

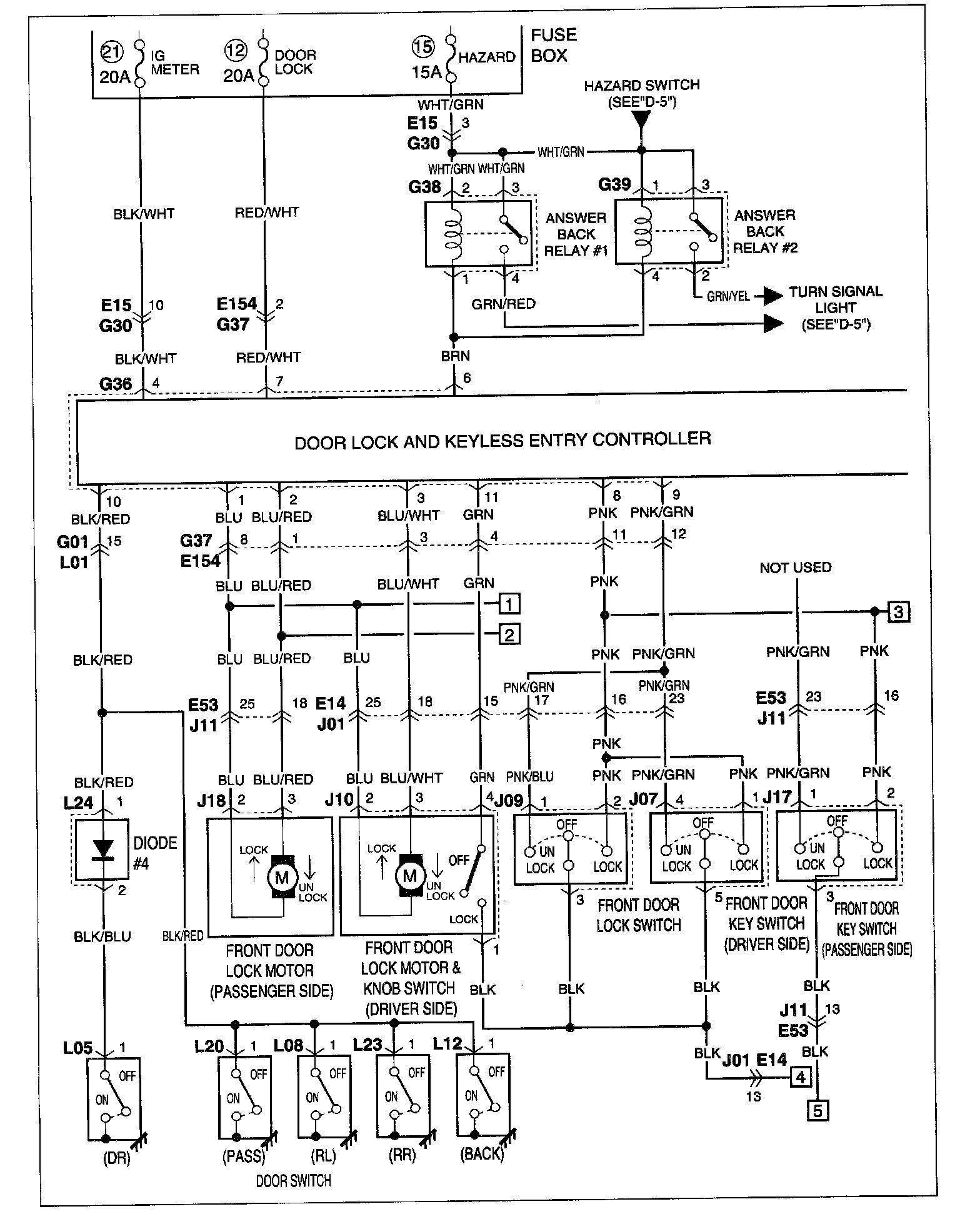

B-6 POWER DOOR LOCK Part 1:

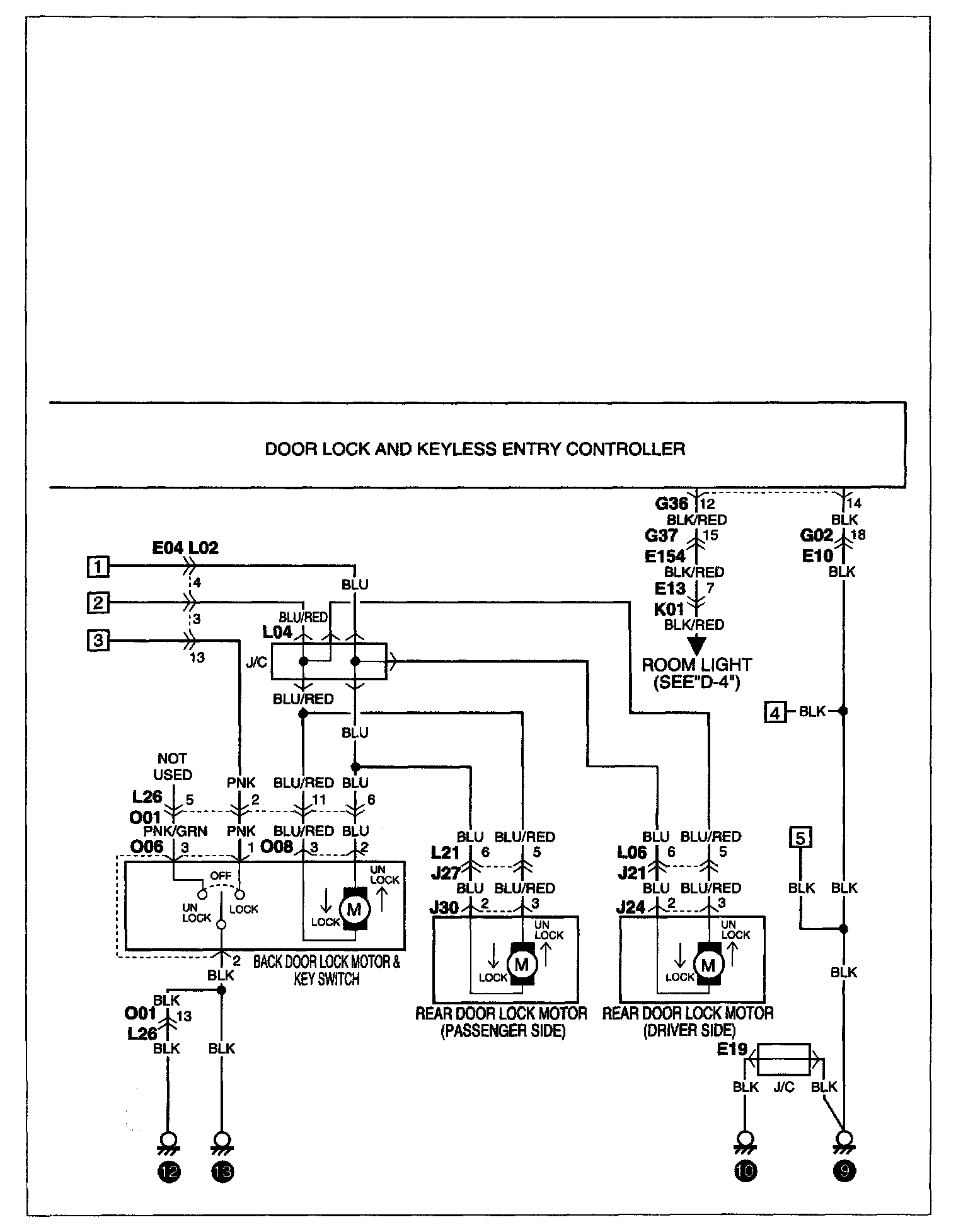

B-6 POWER DOOR LOCK Part 2:

NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
