4WD Control System

4WD CONTROL SYSTEM
When the 4WD switch is turned ON by shifting the transfer shift lever, ECM (PCM) actuates (energizes) the air pump assembly. Then positive pressure is sent from the air pump assembly to the actuator installed to the differential case and causes the axle lock clutch and the free axle hub in the differential case to be engaged, resulting in the 4WD mode. Only when running in the 4WD mode, front axles are joined to differential case, and they become free when 2WD mode is used (or when transfer shift lever is shifted to N position), thereby, reducing the power loss.

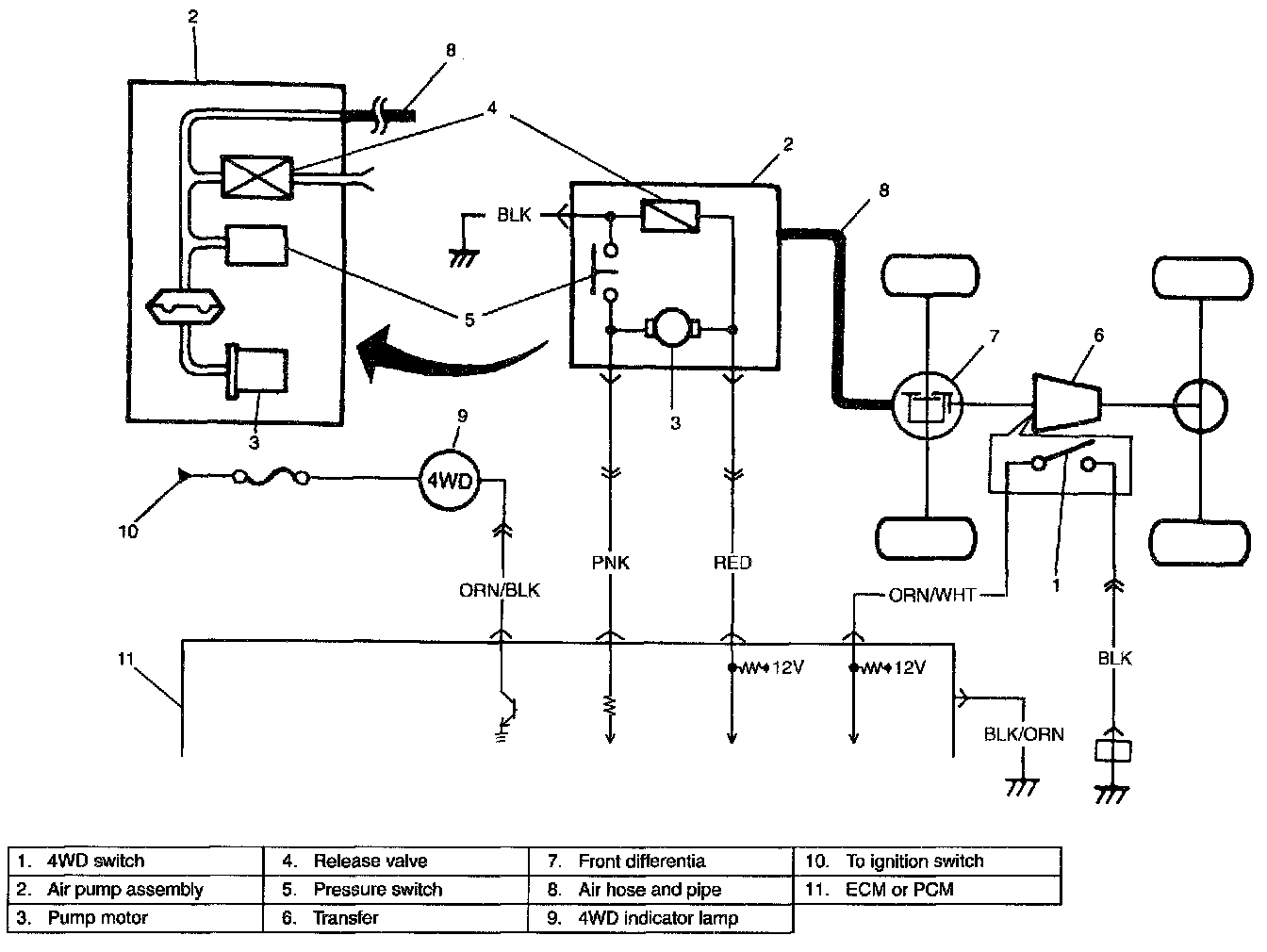

System Circuit





System Operation

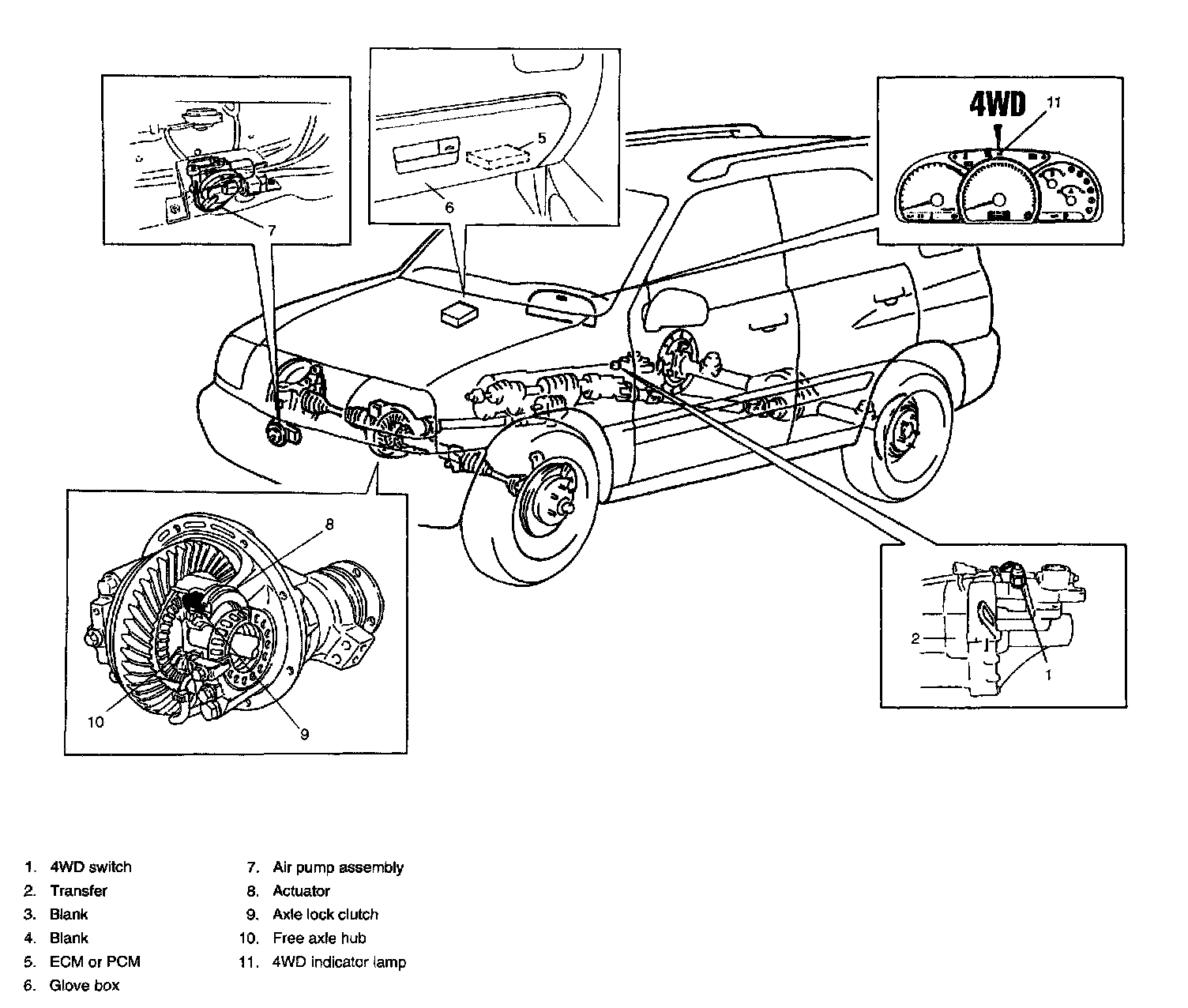

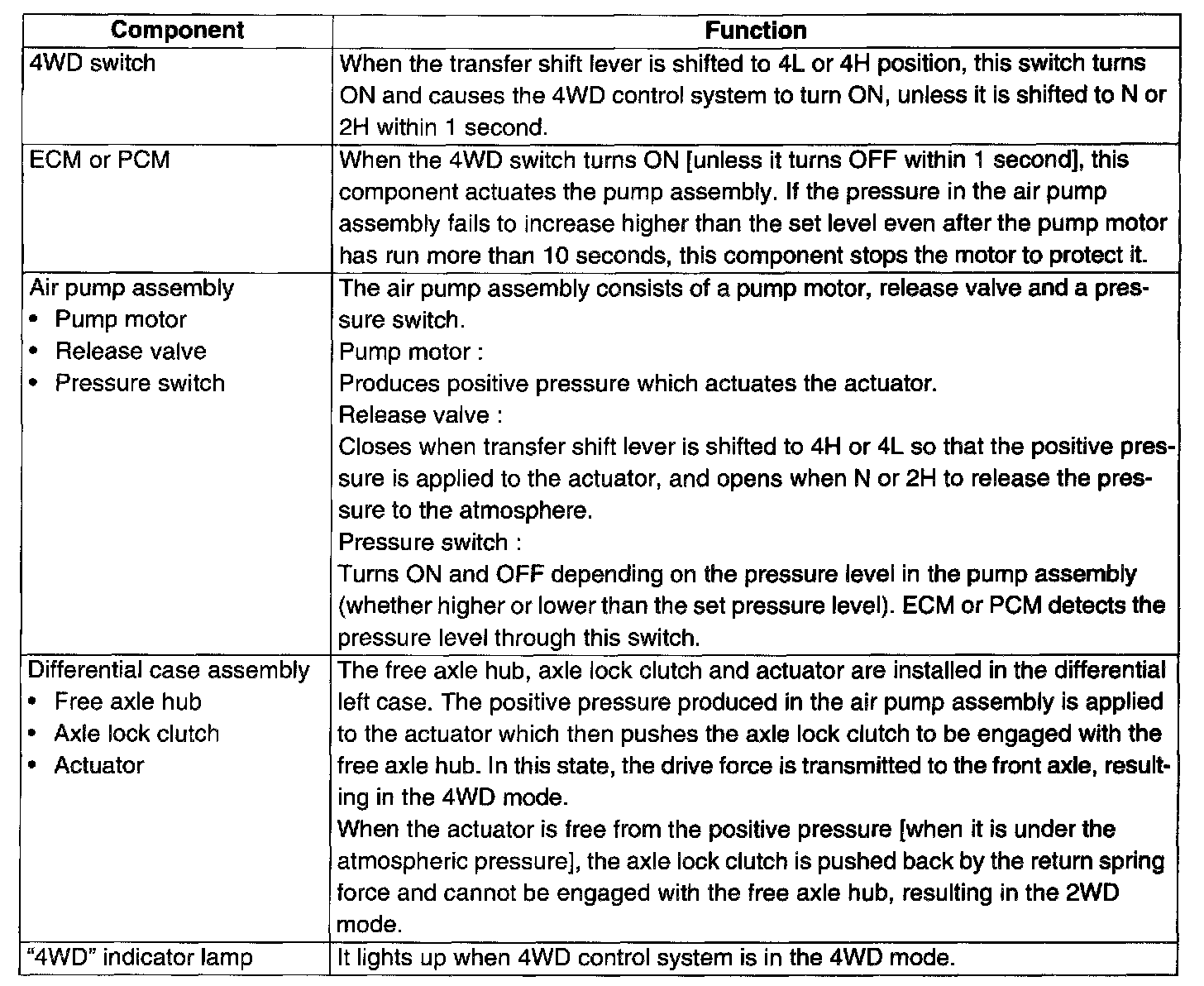

Components And Functions
