Cruise Main/Coast/Set/ Resume/Accel/Cancel Circuit Check

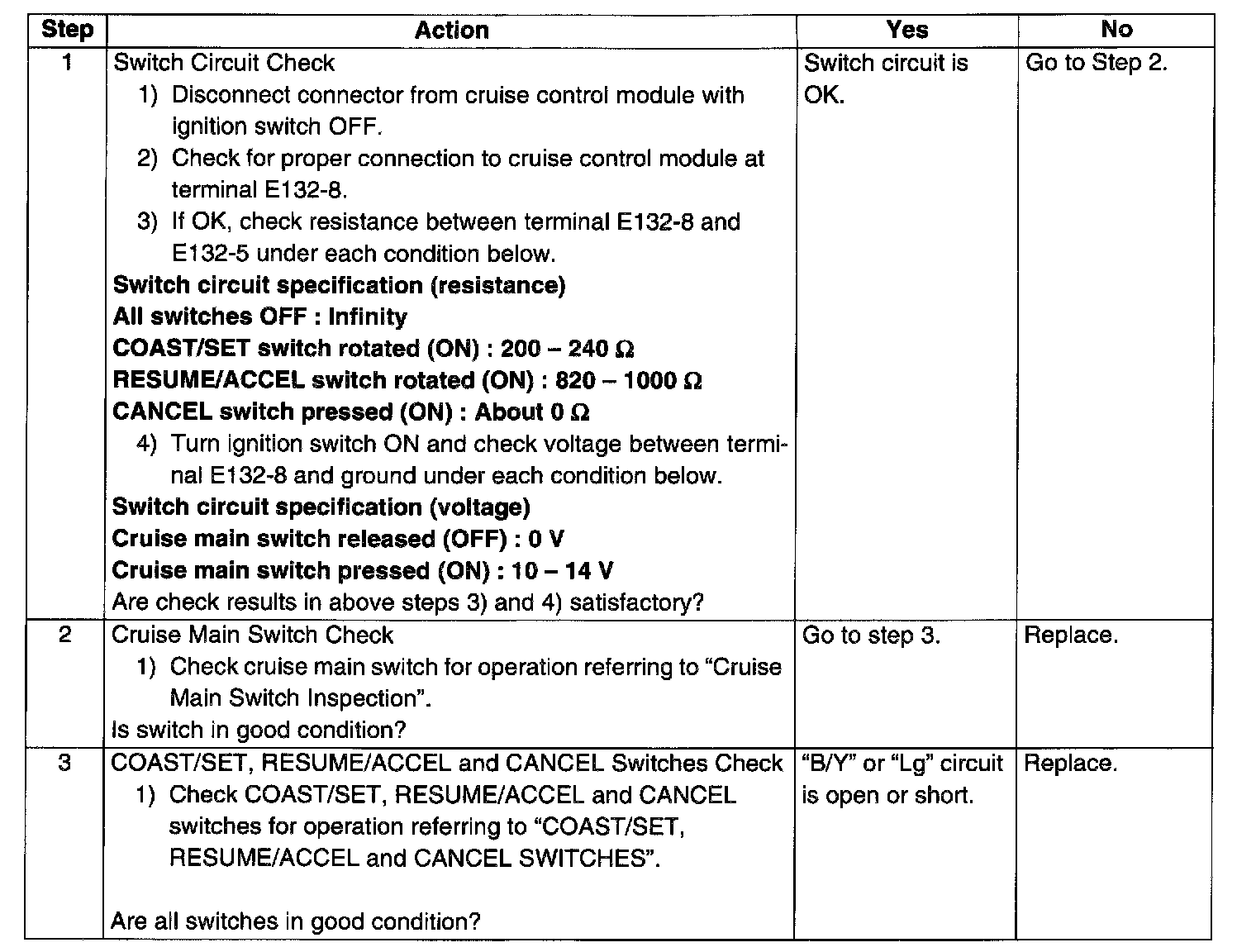

Cruise Main Switch, Coast/Set, Resume/Accel and Cancel Switch Circuits Check (Step 1 - 3):
Cruise Main Switch, Coast/Set, Resume/Accel and Cancel Switch Circuits (Fig. For Step 1):
