P1875

DTC P1875 - 4WD LOW SWITCH CIRCUIT MALFUNCTION (if equipped)





WIRING DIAGRAM





DTC DETECTING CONDITION AND TROUBLE AREA





DTC CONFIRMATION PROCEDURE

WARNING:
^ When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
^ Road test should be carried out with 2 persons, a driver and a tester, on a level road.

1. Connect scan tool to DLC with ignition switch OFF.
2. Clear DTC, pending DTC and freeze frame data in PCM memory by using scan tool.
3. Start engine.
4. Increase vehicle speed to about 30 km/h (19 mile/h) or more in D range and is in 2H position.
5. Keep driving at above vehicle speed for 30 seconds.
6. Stop vehicle and shift transfer lever to 4L position with A/T selector lever is in P range
7. Increase vehicle speed to about 25 km/h (15 mile/h) or more in D range and is in 4L position.
8. Keep driving at above vehicle speed for 30 seconds.
9. Stop vehicle and check pending DTC and DTC by using scan tool.

TROUBLESHOOTING

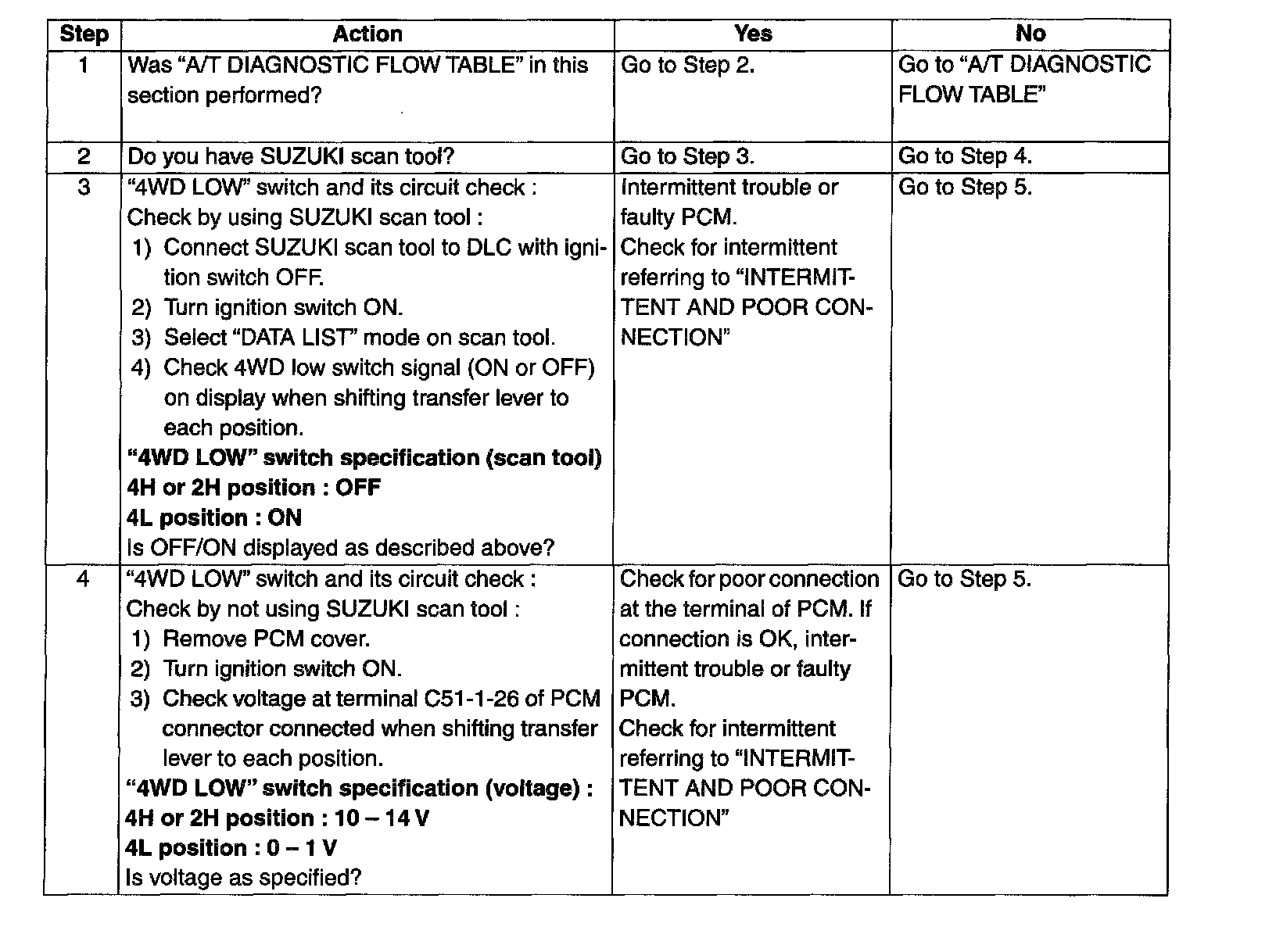

Steps 1-4





Step 5
