Table B-4: "Power" Light Circuit Check

TABLE B-4: "POWER" LIGHT CIRCUIT CHECK ("POWER" LIGHT COMES ON STEADILY)
WIRING DIAGRAM
Refer to "TABLE B-3". Table B-3: "Power" Light Circuit Check

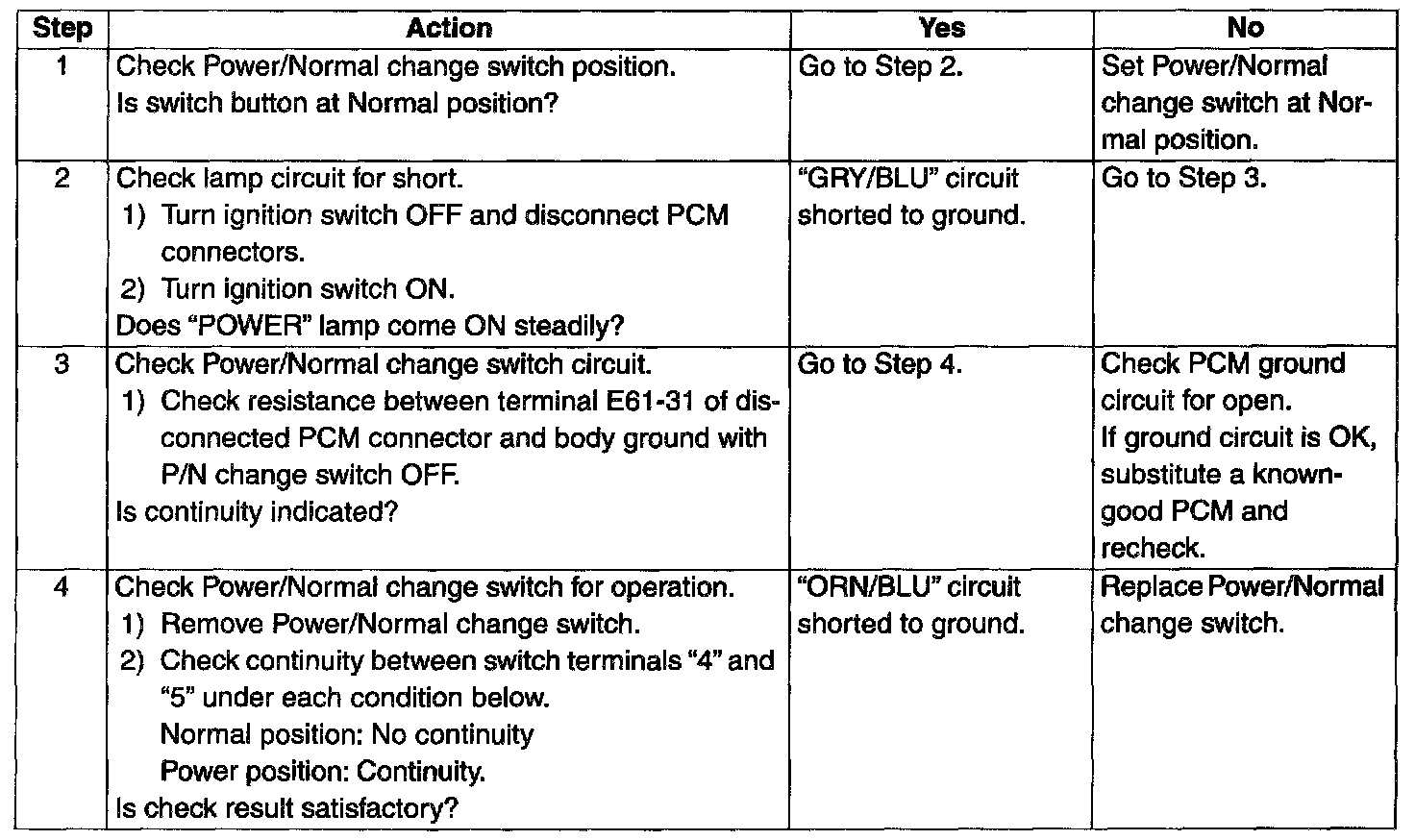

TROUBLESHOOTING





[A] for Step 1/[B] for Step 4
