Table B-3: "Power" Light Circuit Check

TABLE B-3: "POWER" LIGHT CIRCUIT CHECK ("POWER" LIGHT DOESN'T LIGHT AT IGNITION SWITCH ON BUT ENGINE STARTS UP)

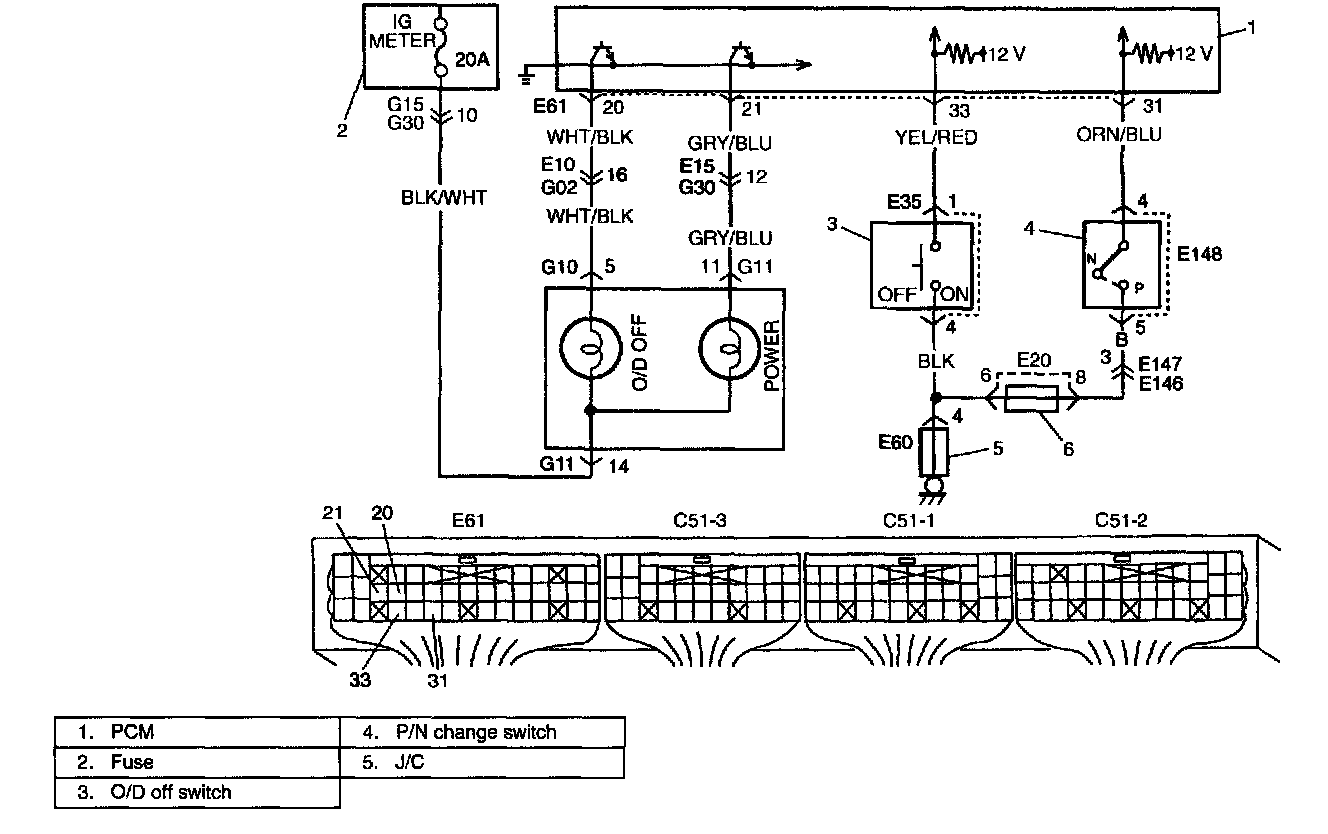

WIRING DIAGRAM





TROUBLESHOOTING
