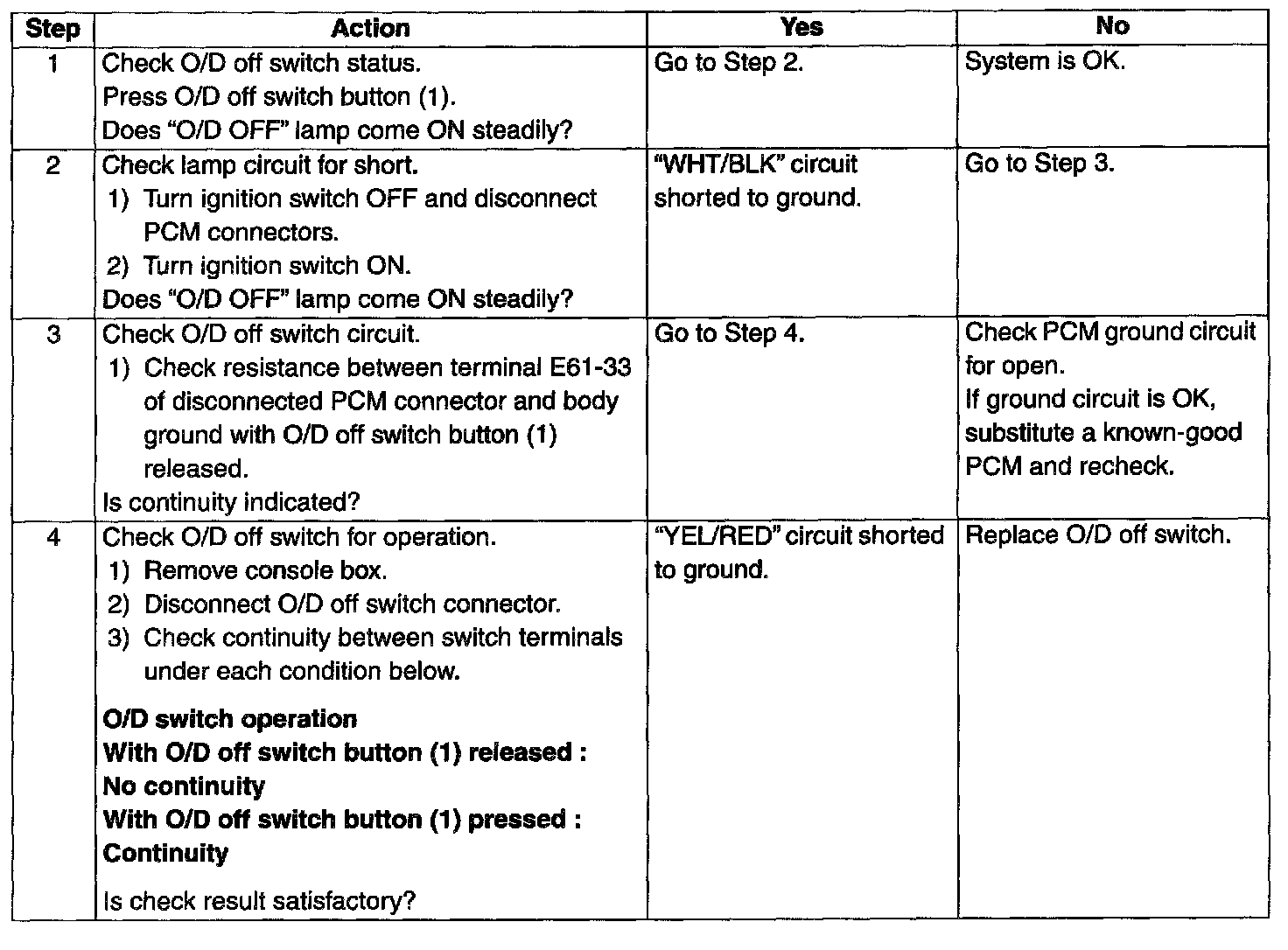

Table B-2: "O/D Off" Light Circuit Check

TABLE B-2: "O/D OFF" LIGHT CIRCUIT CHECK ("O/D OFF" LIGHT COMES ON STEADILY)
WIRING DIAGRAM
Refer to "TABLE B-1". Table B-1: "O/D Off" Light Circuit Check





TROUBLESHOOTING





[A] for Step 1/[B] for Step 4
