Automatic Transmission Basic Check

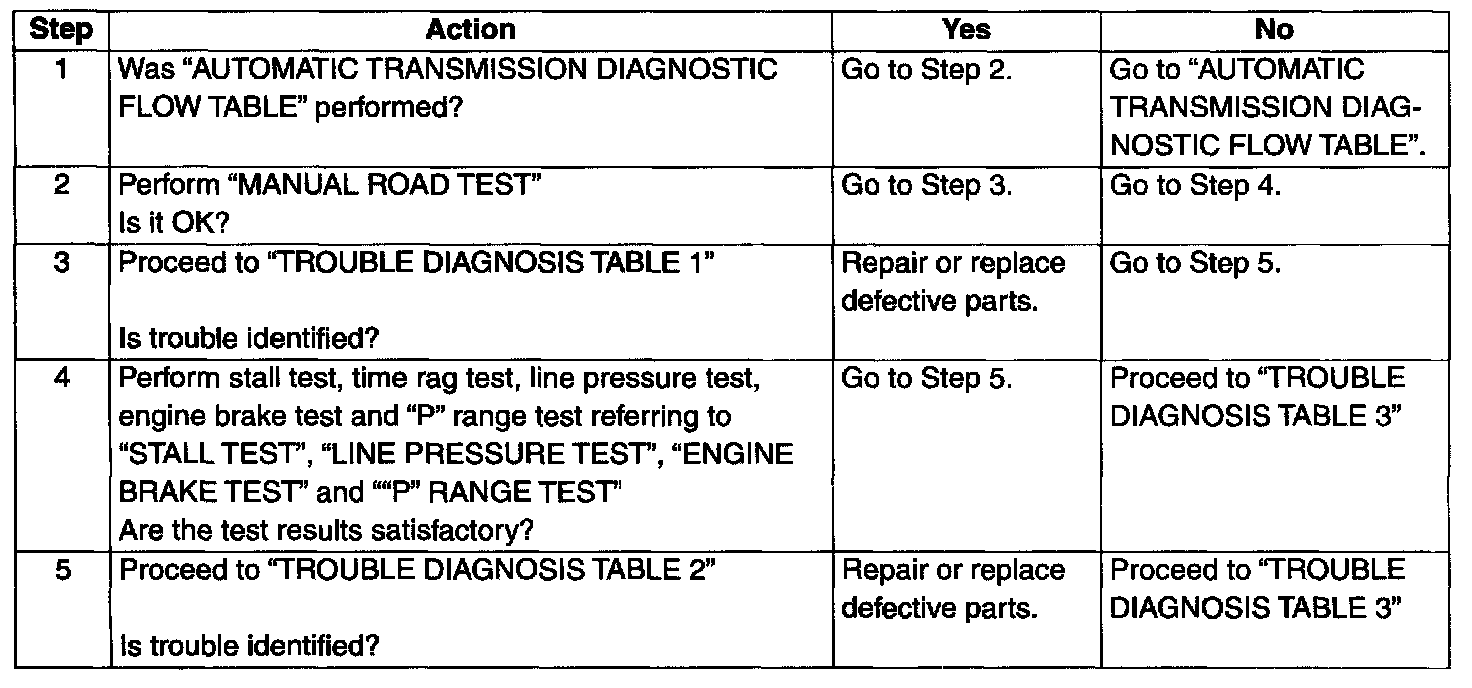

A/T BASIC CHECK





This inspection is important for troubleshooting when PCM (ECM) has detected no DTC and no abnormality has been noted in visual inspection. Follow flow table carefully.
