Electronic Shift Control System

ELECTRONIC SHIFT CONTROL SYSTEM

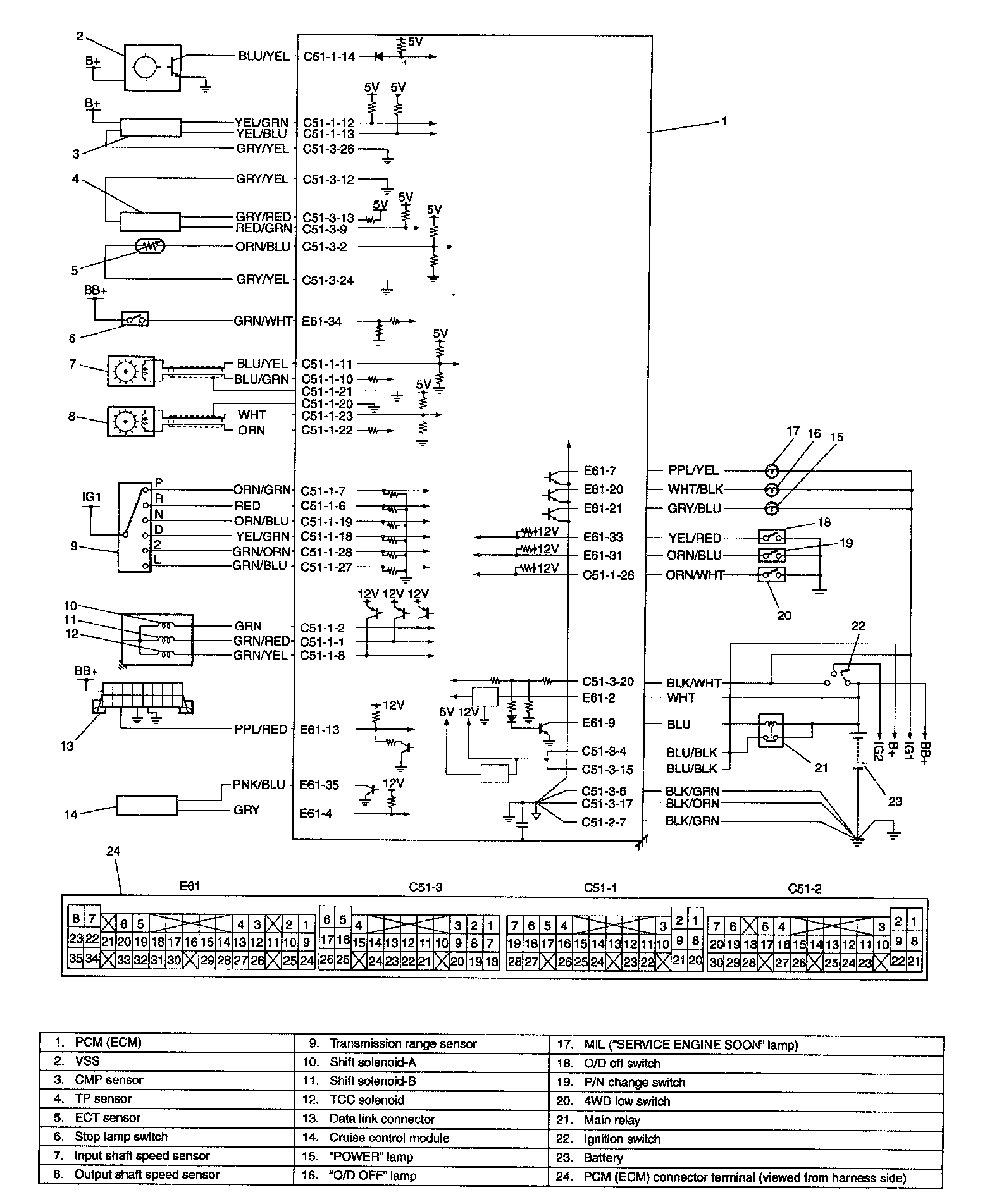

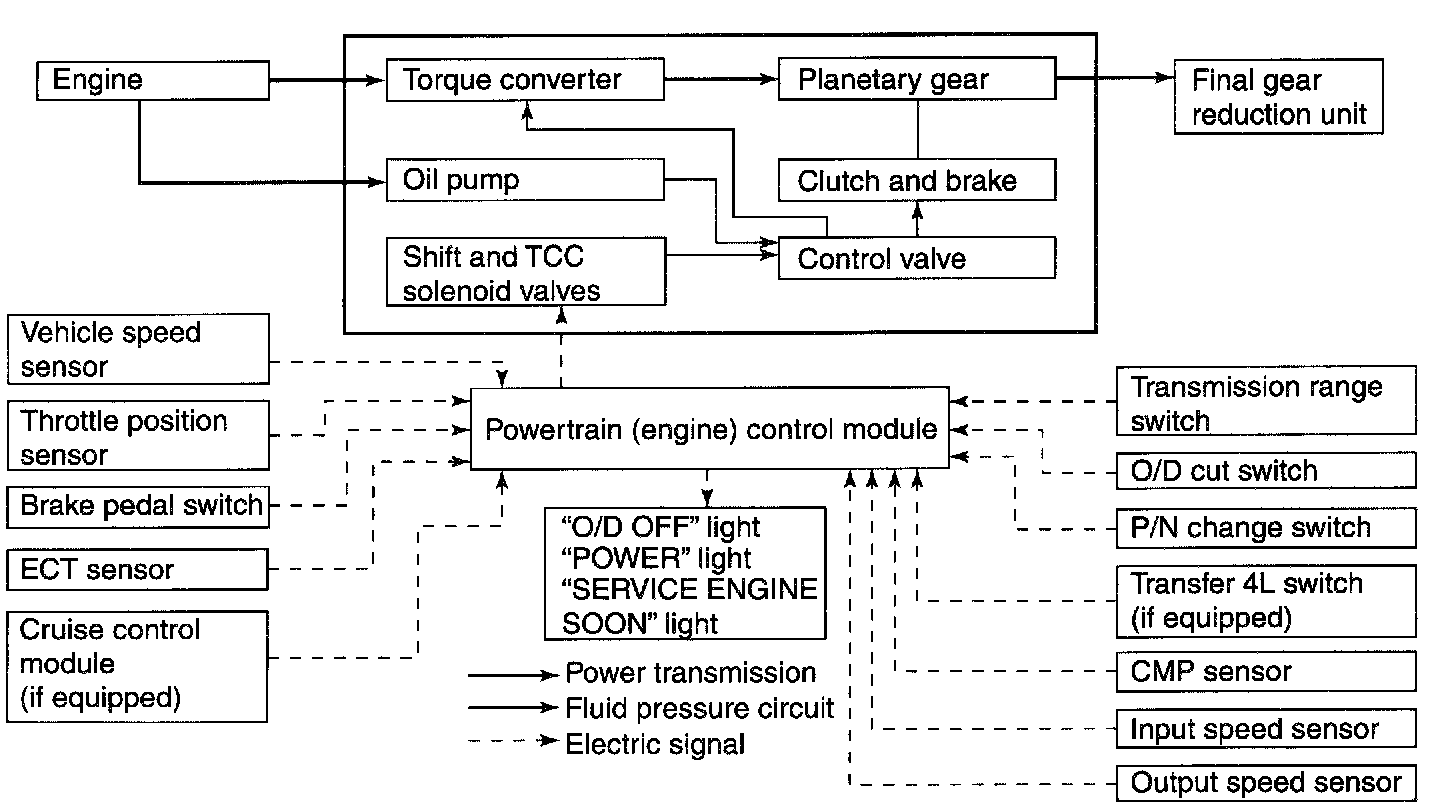

The gear ratio change in "D" or "2" range and torque converter clutch operation are controlled by Powertrain (Engine) Control Module.





Fail Safe Function
This function is provided by the safe mechanism that assures safe driveability even when the shift solenoid valve or speed sensor fails. The table shows the gear position in each shift under a normal/abnormal condition.









Change Mechanism
The same select pattern shift lever is used as the floor type and frequently used "N" and "D" ranges are made selectable freely.





Operation Of Shift Solenoids And TCC Solenoid

AUTOMATIC GEAR SHIFT DIAGRAM
Automatic shift schedule as a result of shift control is shown. In case that select lever is shifted to L at a higher than 55 km/h or 34 mile/h speed, 2nd or 3rd gear is operated and then down shifts to 1st at a speed lower than that. No up shift is available in L.
The same as, the select lever is shifted to 2 at a higher than 105 km/h (65 mile/h) speed, 3rd gear is operated and then down shifts to 2nd at a speed lower than that.


[POWER MODE]

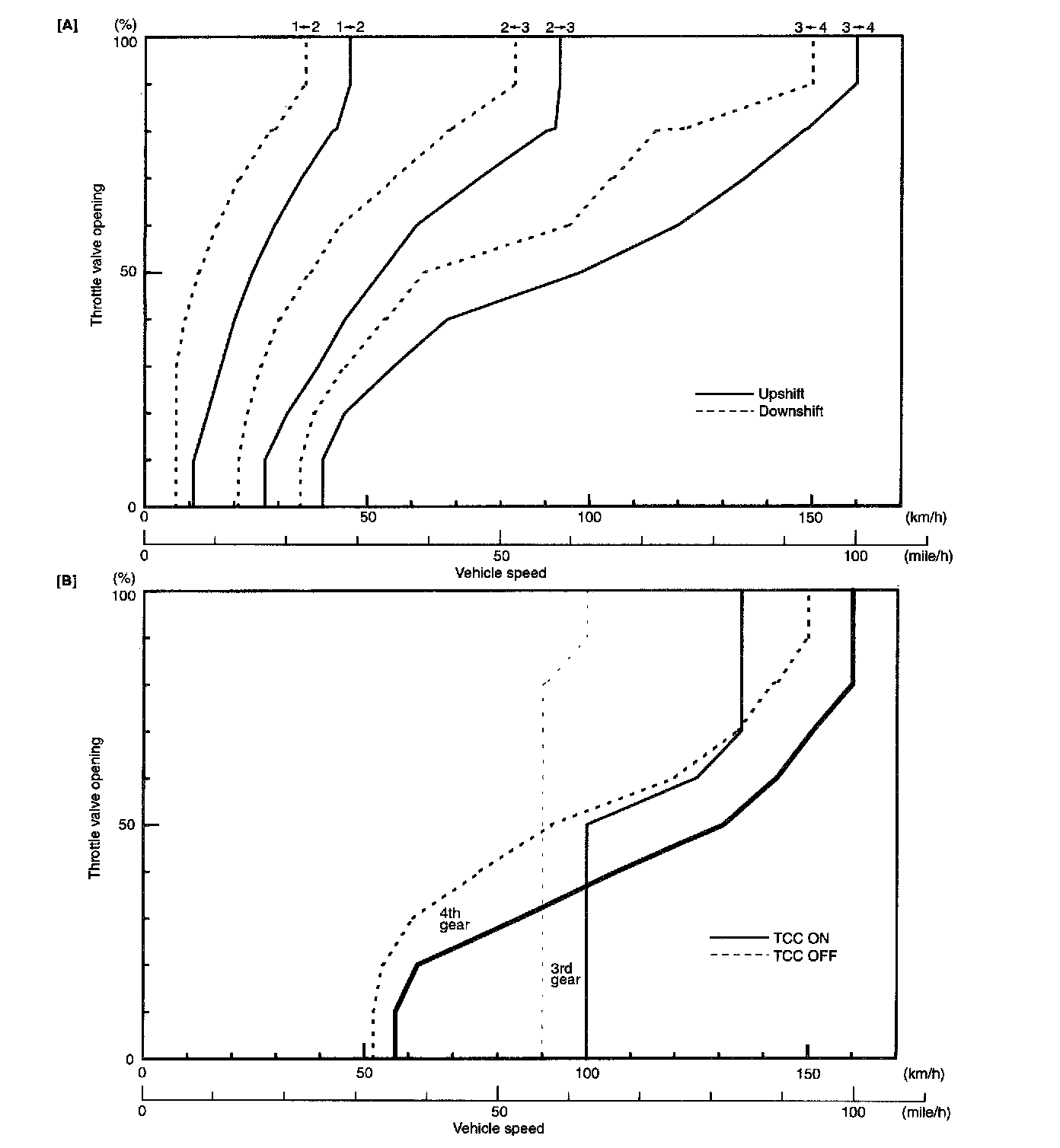

Gear Shift Diagram [A] And TCC Lock-up Diagram [B]


[NORMAL [MODE]








Gear Shift Diagram [A] And TCC Lock-up Diagram [B]
