Starting System: Description and Operation

Starting Motor Circuit:

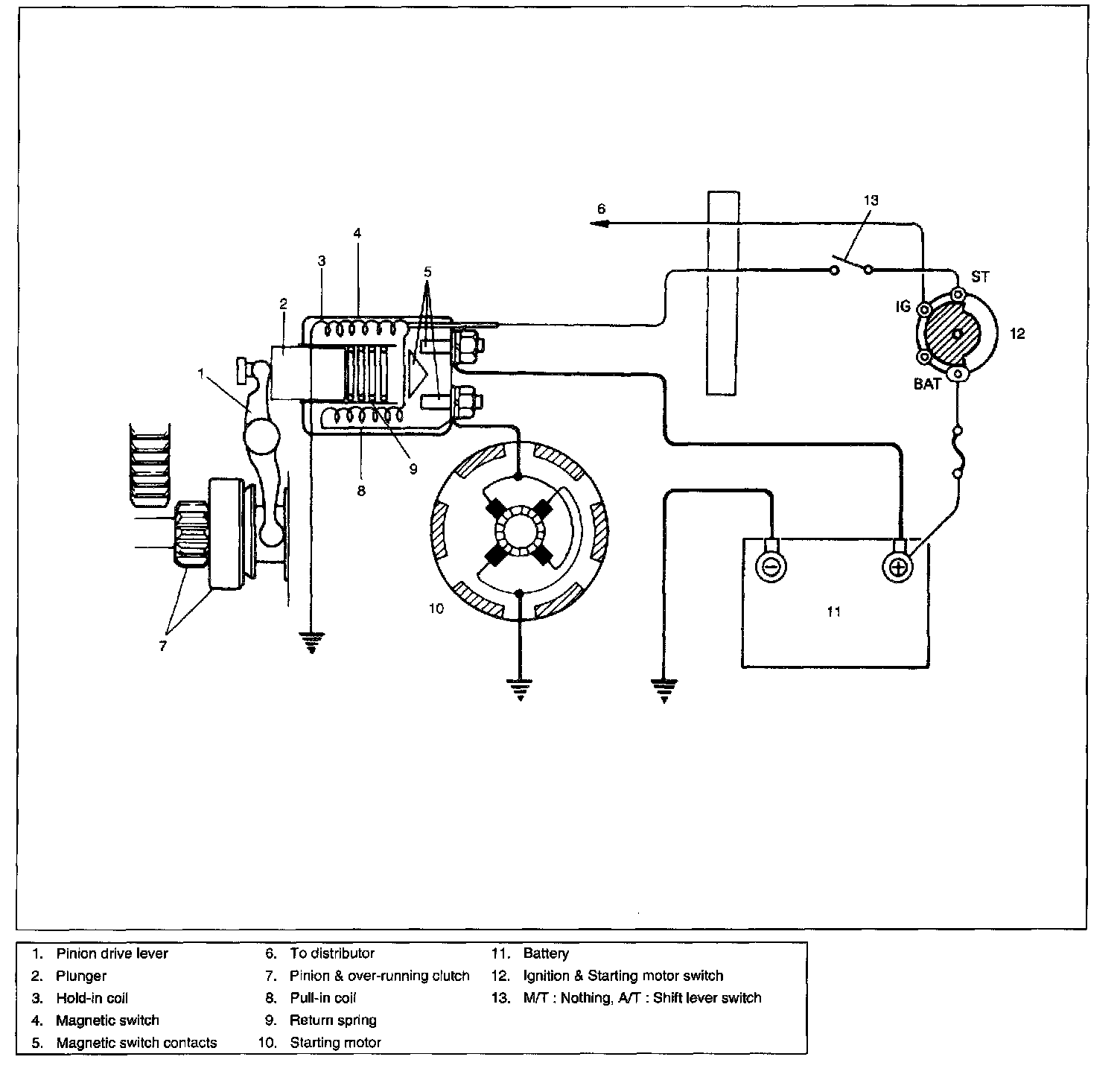

CRANKING CIRCUIT
The cranking circuit consists of the battery, starting motor, ignition switch, and related electrical wiring. These components are connected electrically.
