Hazard Flasher Relay: Testing and Inspection

Hazard Relay

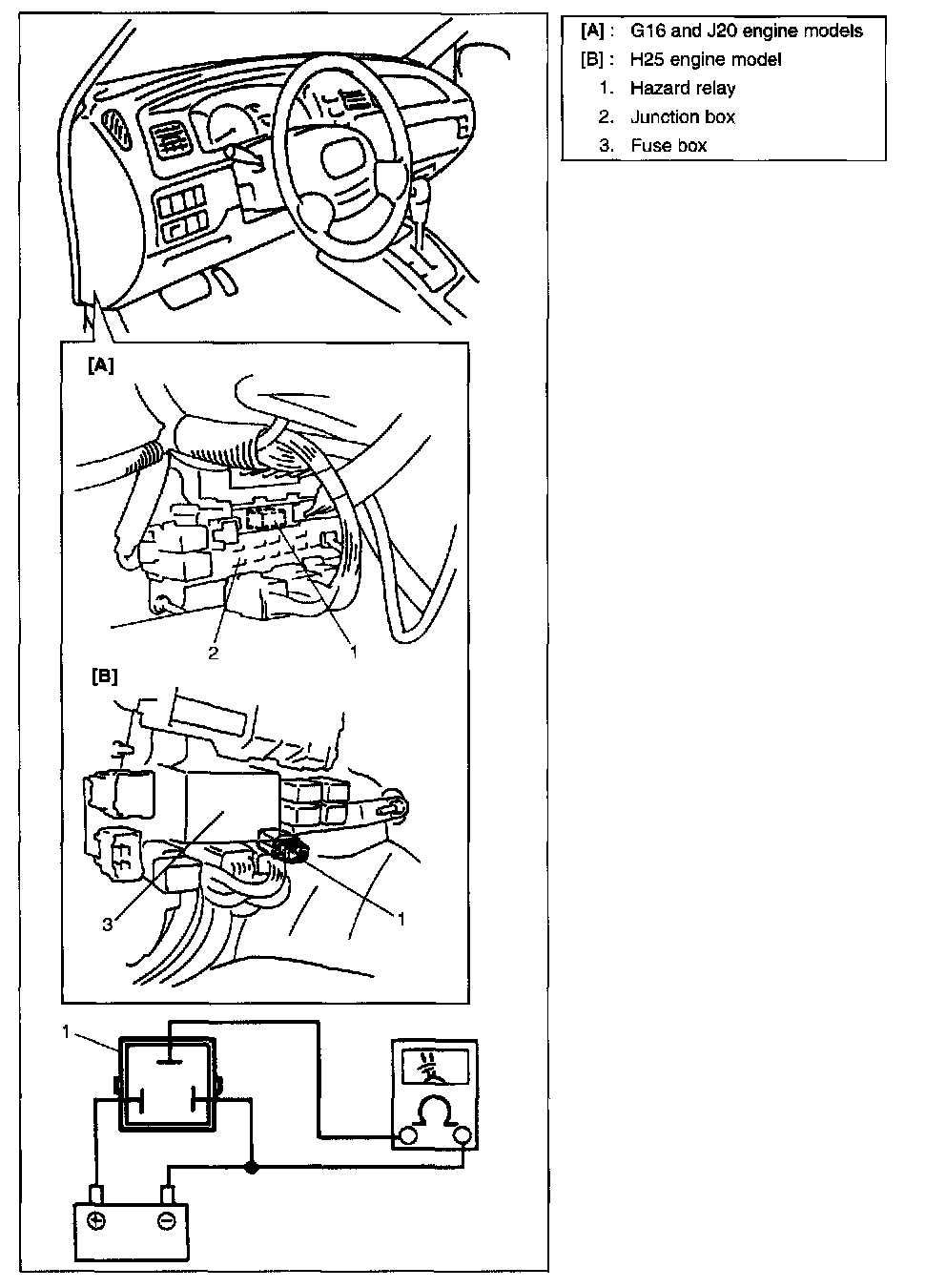

Check that relay clicks continuously when battery and tester are connected as shown in the figure.

Unless a continued click sound is heard, replace relay.
