System Schematic

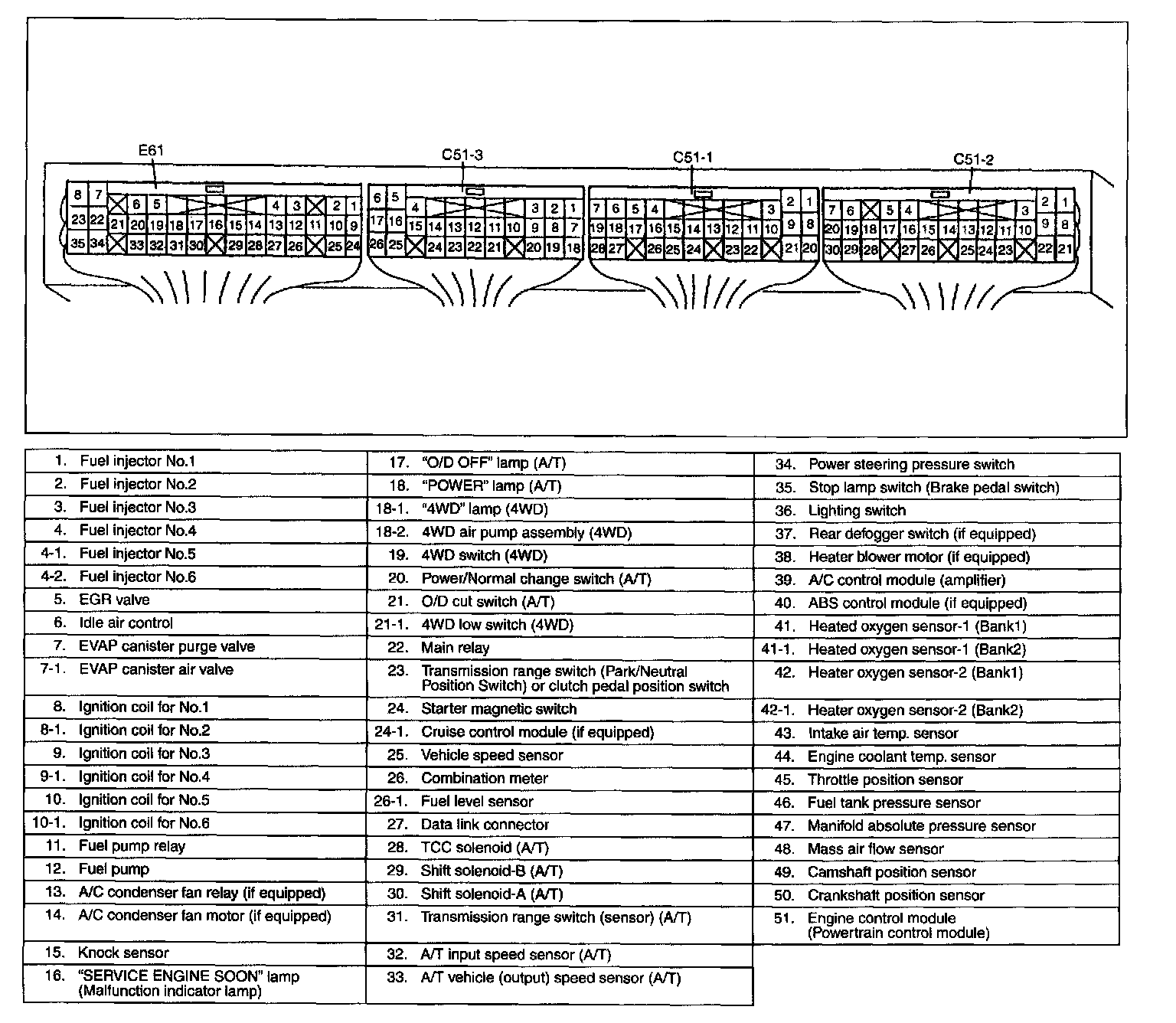

Terminal Pinouts:

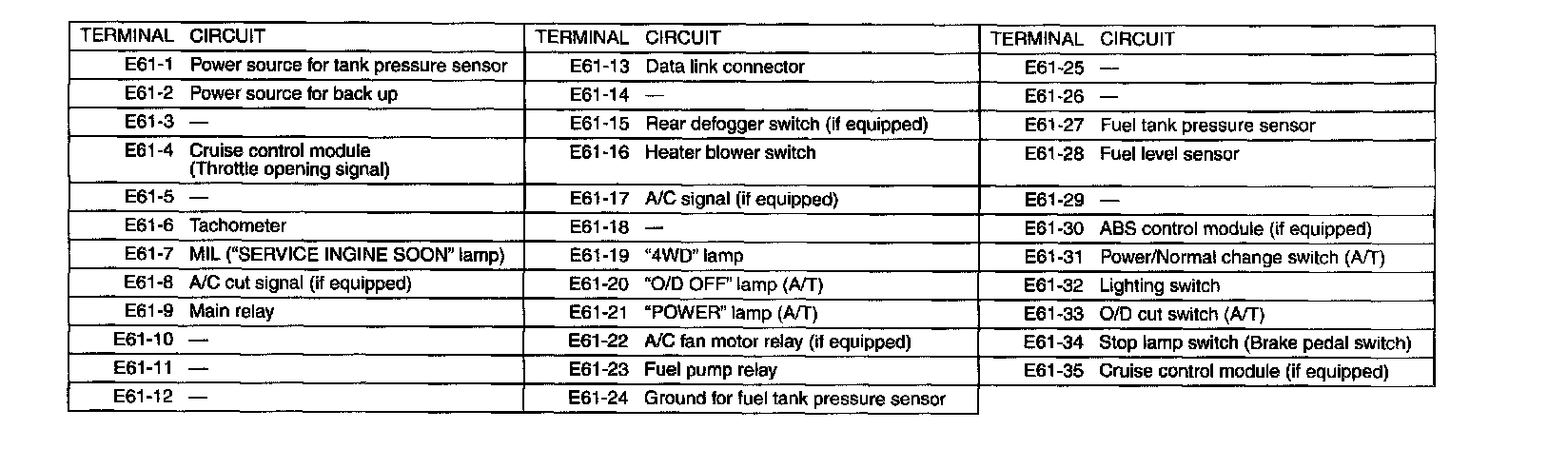

mR�Terminal Circuit (E61-1 - E61-35):

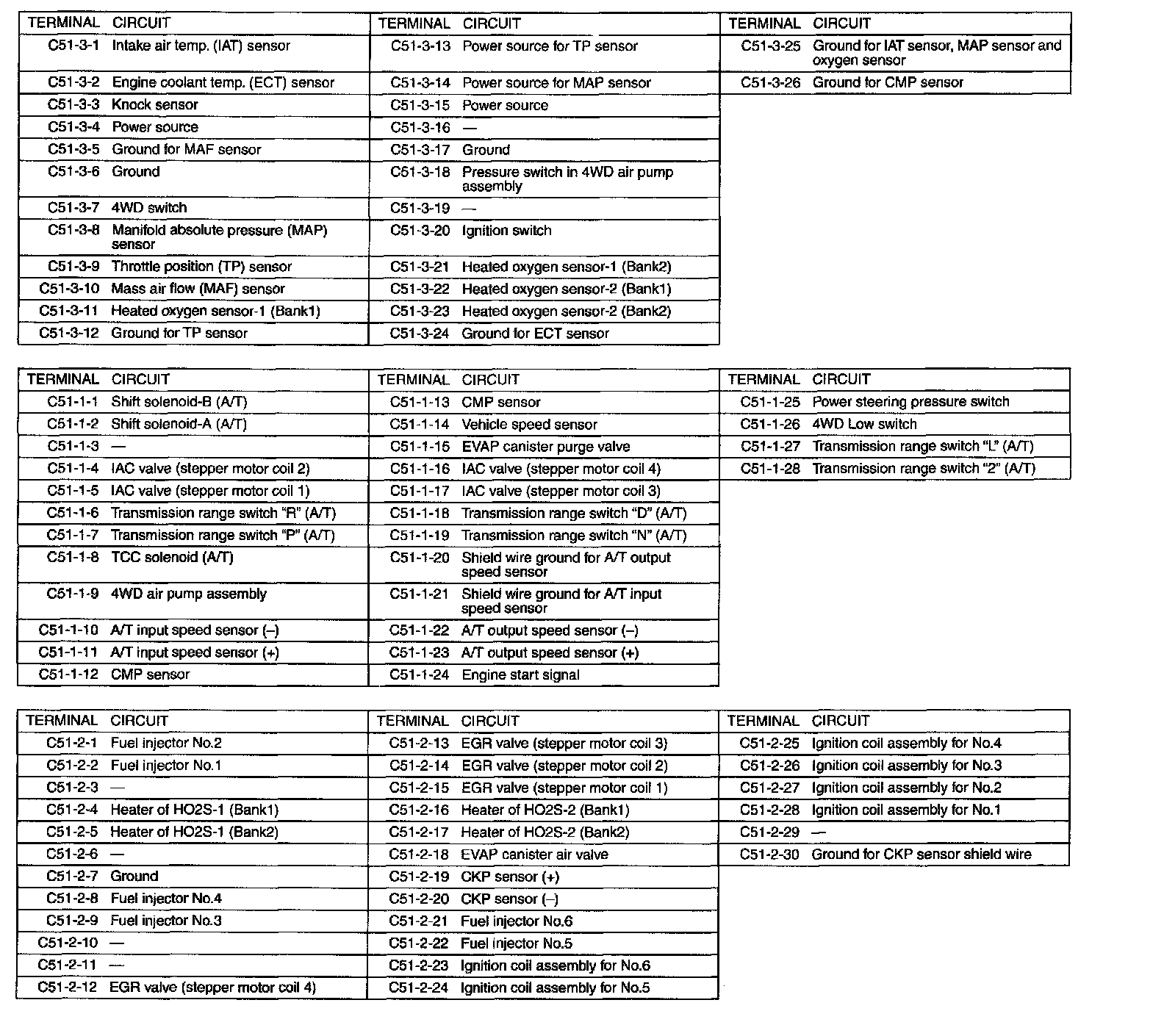

Terminal Circuit (E51-3-1 - E51-2-30):
