B-3 Fuel Pressure

SYSTEM DIAGRAM

Steps 1 - 2:

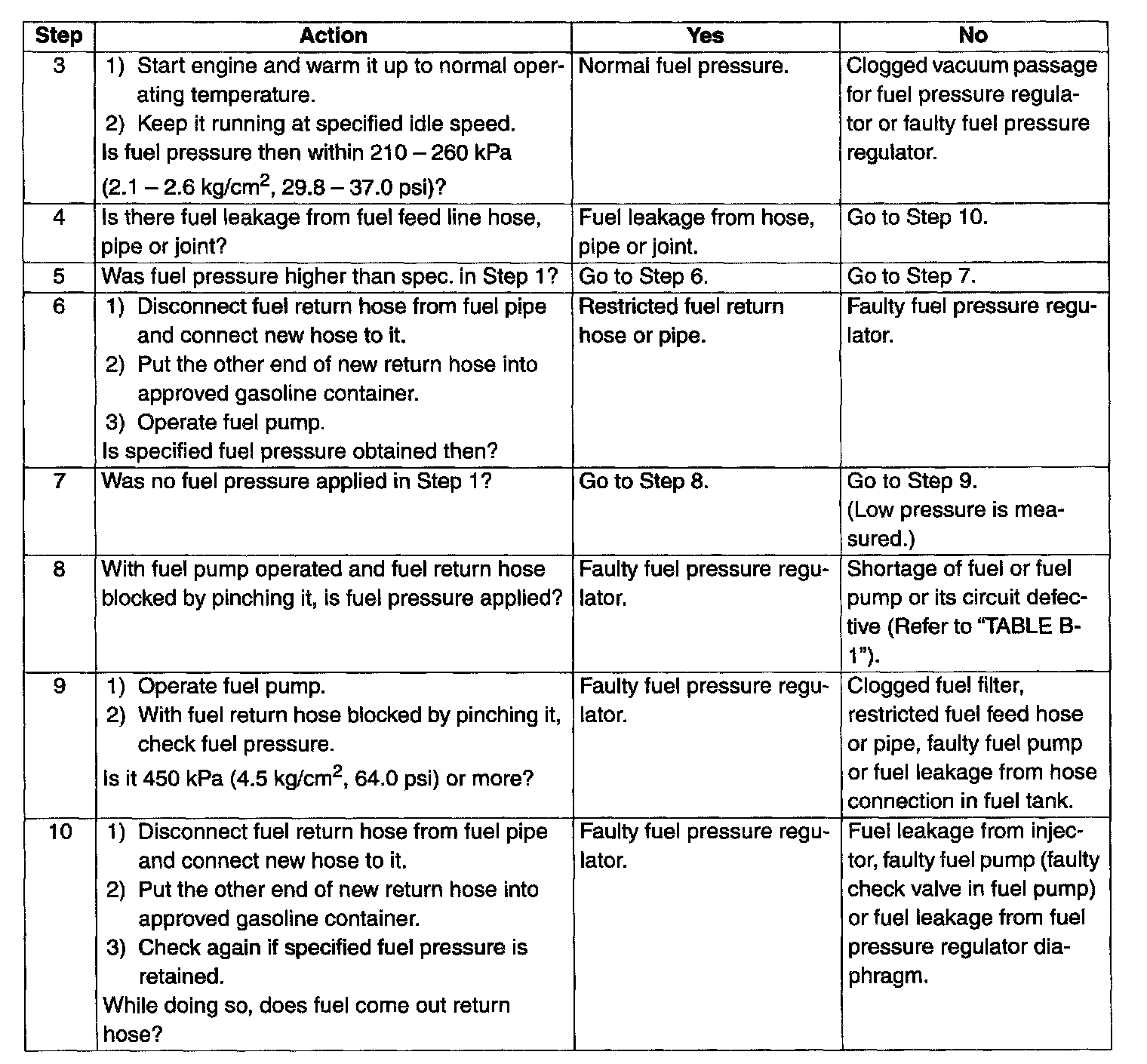

Steps 3 - 10:

INSPECTION

NOTE: Before using the flow table, check to make sure that battery voltage is higher than 11 V. If battery voltage is low, pressure becomes lower than specification even if fuel pump and line are in good condition.
