B-1 Fuel Pump Circuit

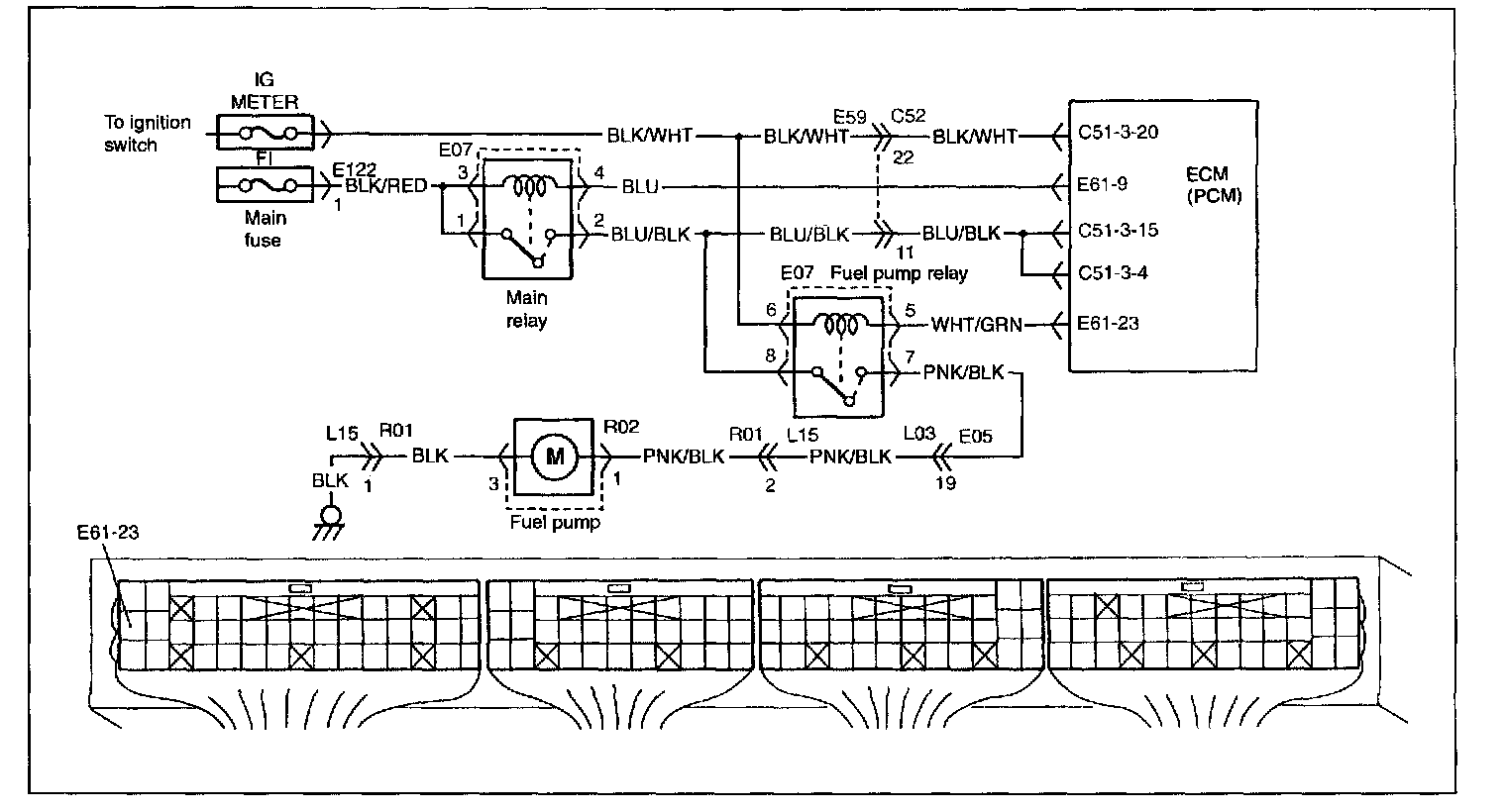

WIRING DIAGRAM

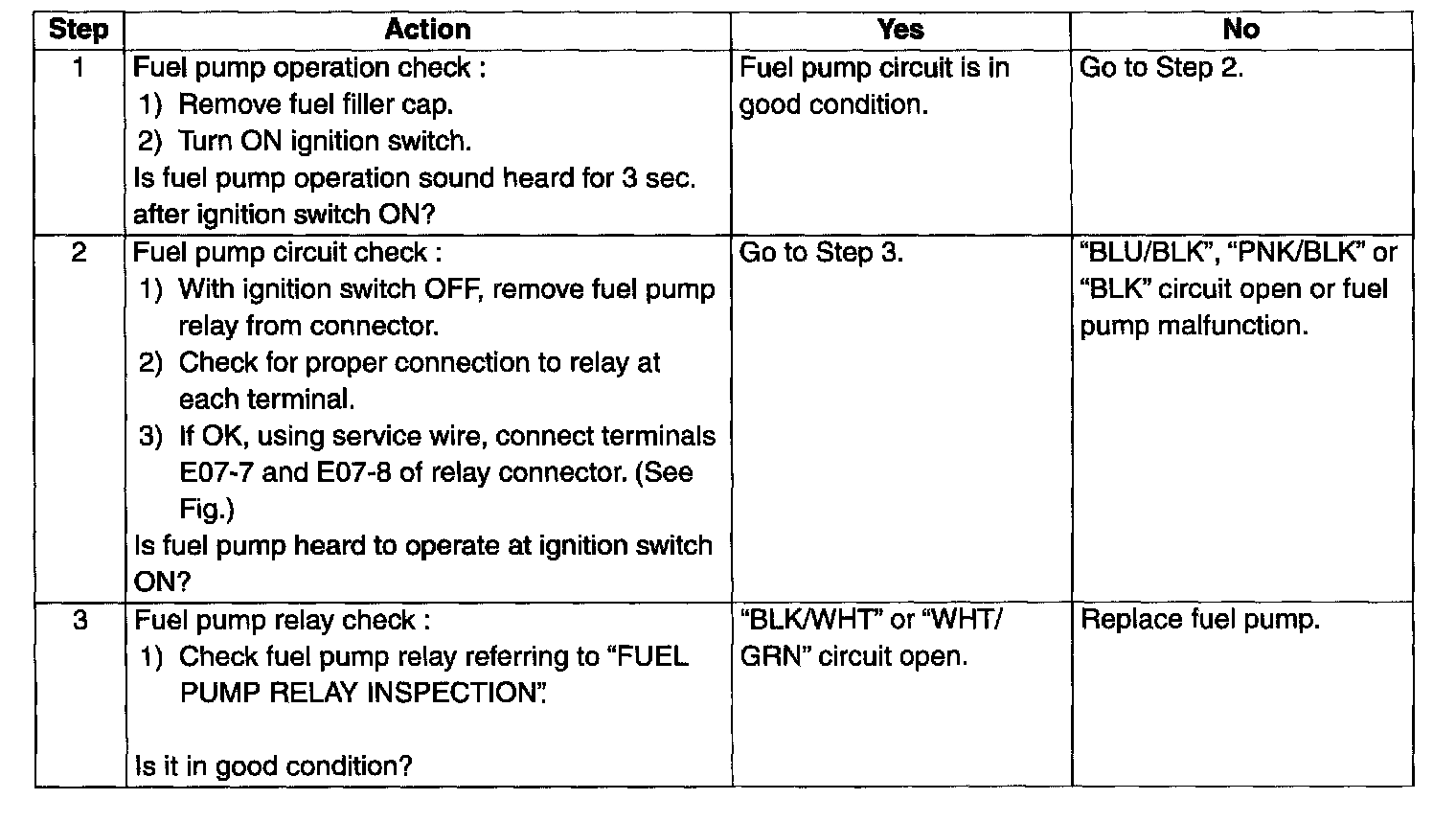

Steps 1 - 3:







INSPECTION

CAUTION: Check to make sure that connection is made between correct terminals.
Wrong connection can cause damage to ECM, wire harness etc.
