A-3 MIL Does Not Light, Engine Does Not Start

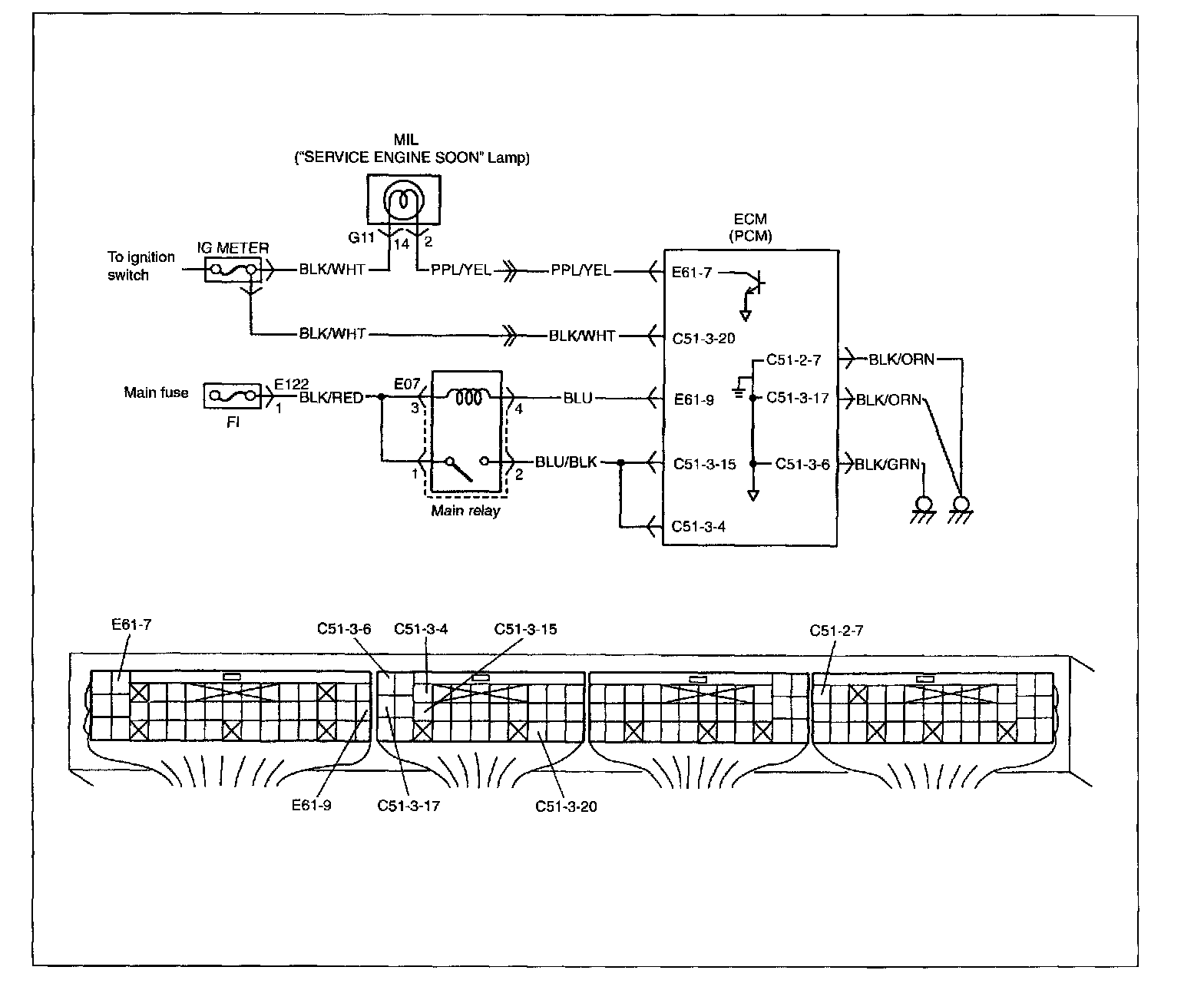

WIRING DIAGRAM

CIRCUIT DESCRIPTION
When the ignition switch is turned ON, the main relay turns ON (the contact point closes) and the main power is supplied to ECM (PCM)

Steps 1 - 2:

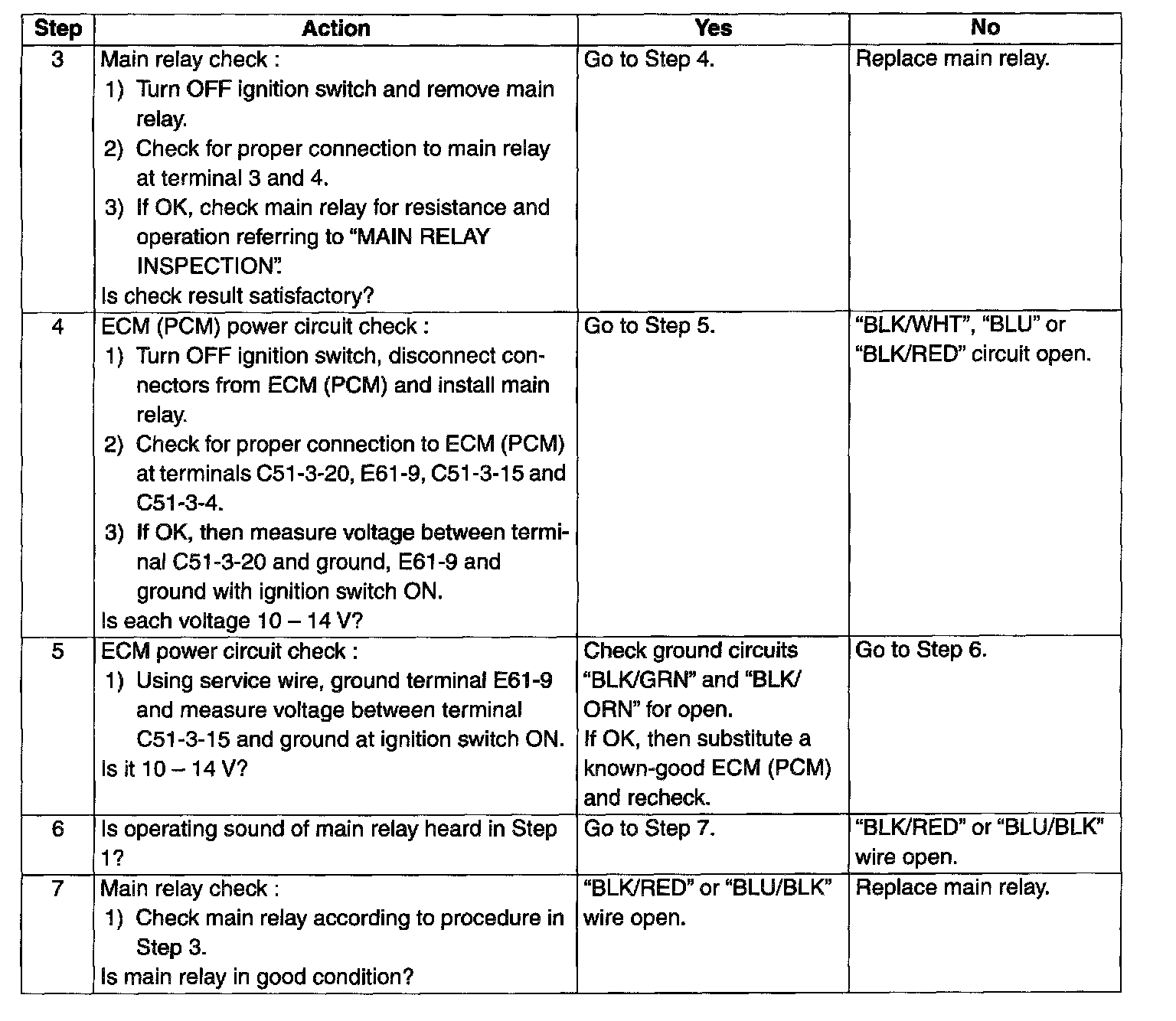

Steps 3 - 7:

INSPECTION
