Rear

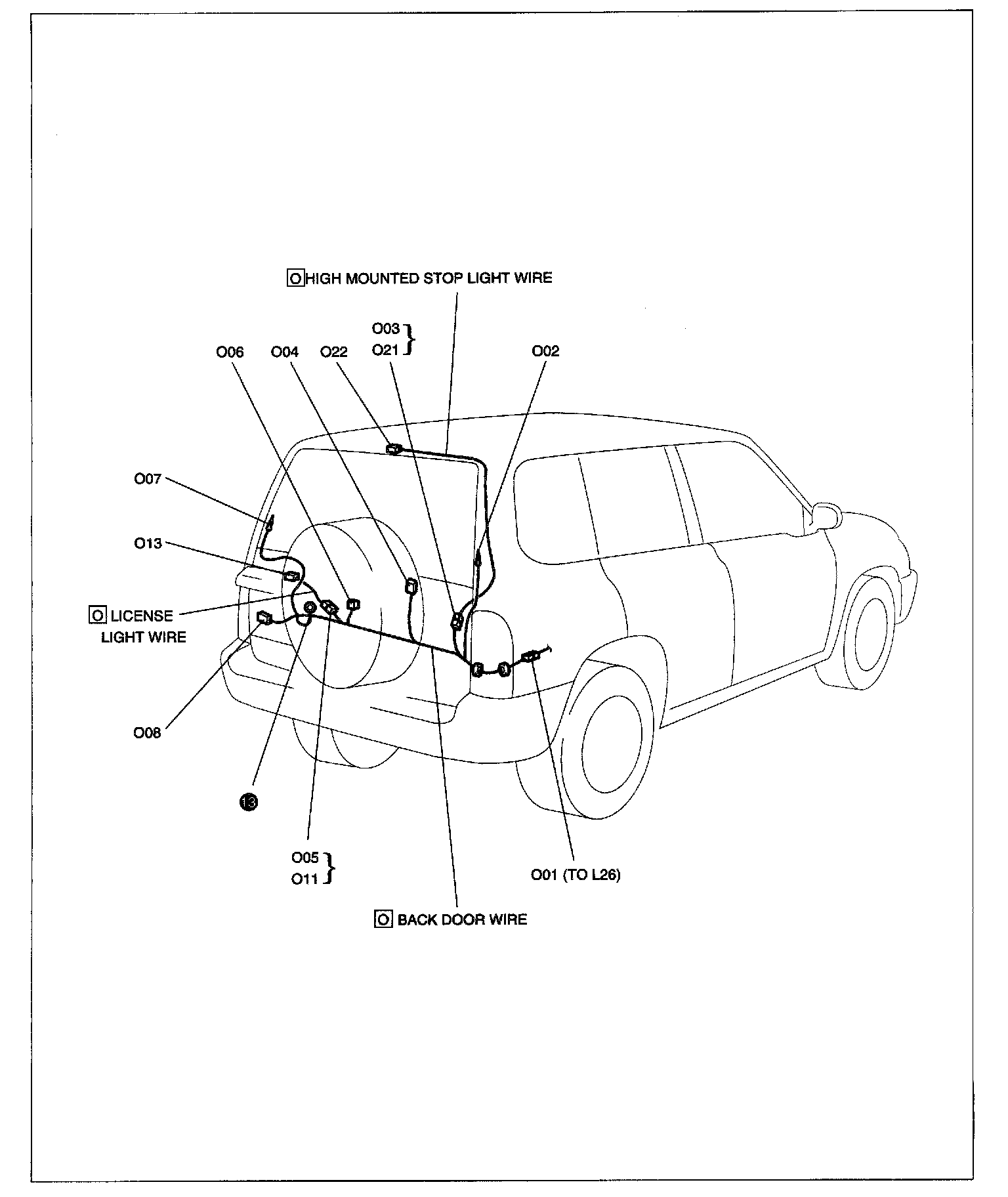

O: Back Door Wire, License Light Wire, High Mounted Stop Light Wire:

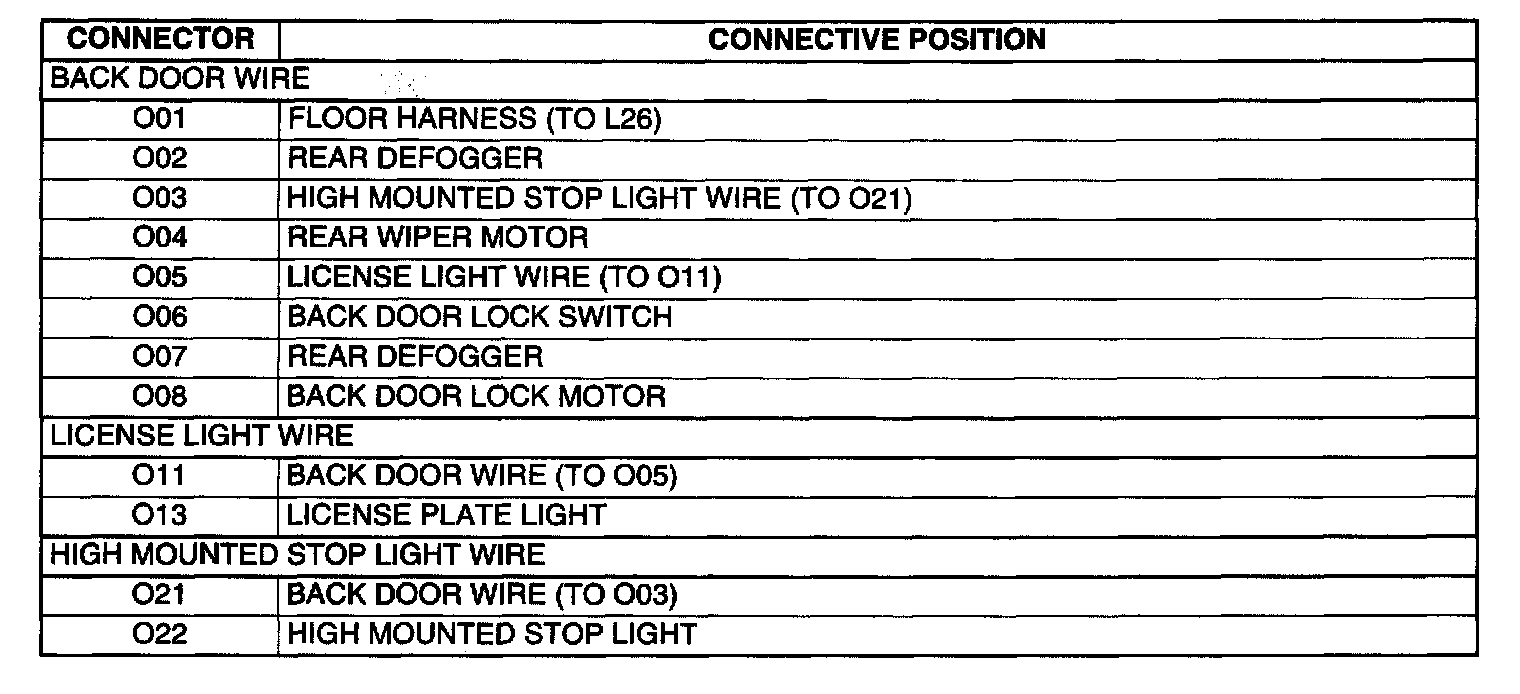

O: Back Door Wire, License Light Wire, High Mounted Stop Light Wire Connectors:
