Headlight Switch (In Combination Switch)




1. Disconnect negative (-) cable at battery.
2. Disconnect combination switch lead wire couplers.

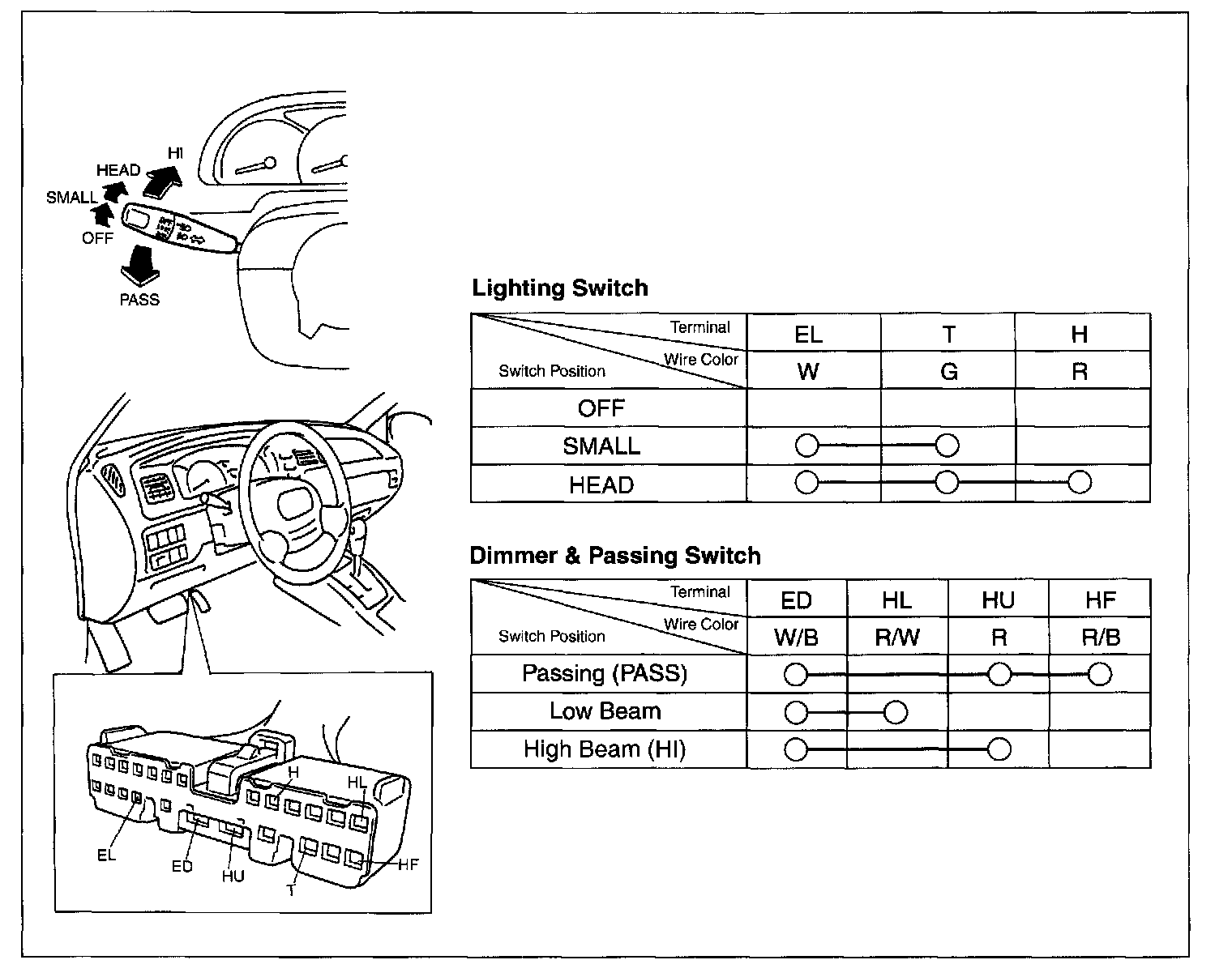

3. Use a circuit tester to check the continuity at each switch position. If any continuity is not obtained, replace switch.
