Wiper and Washer Systems

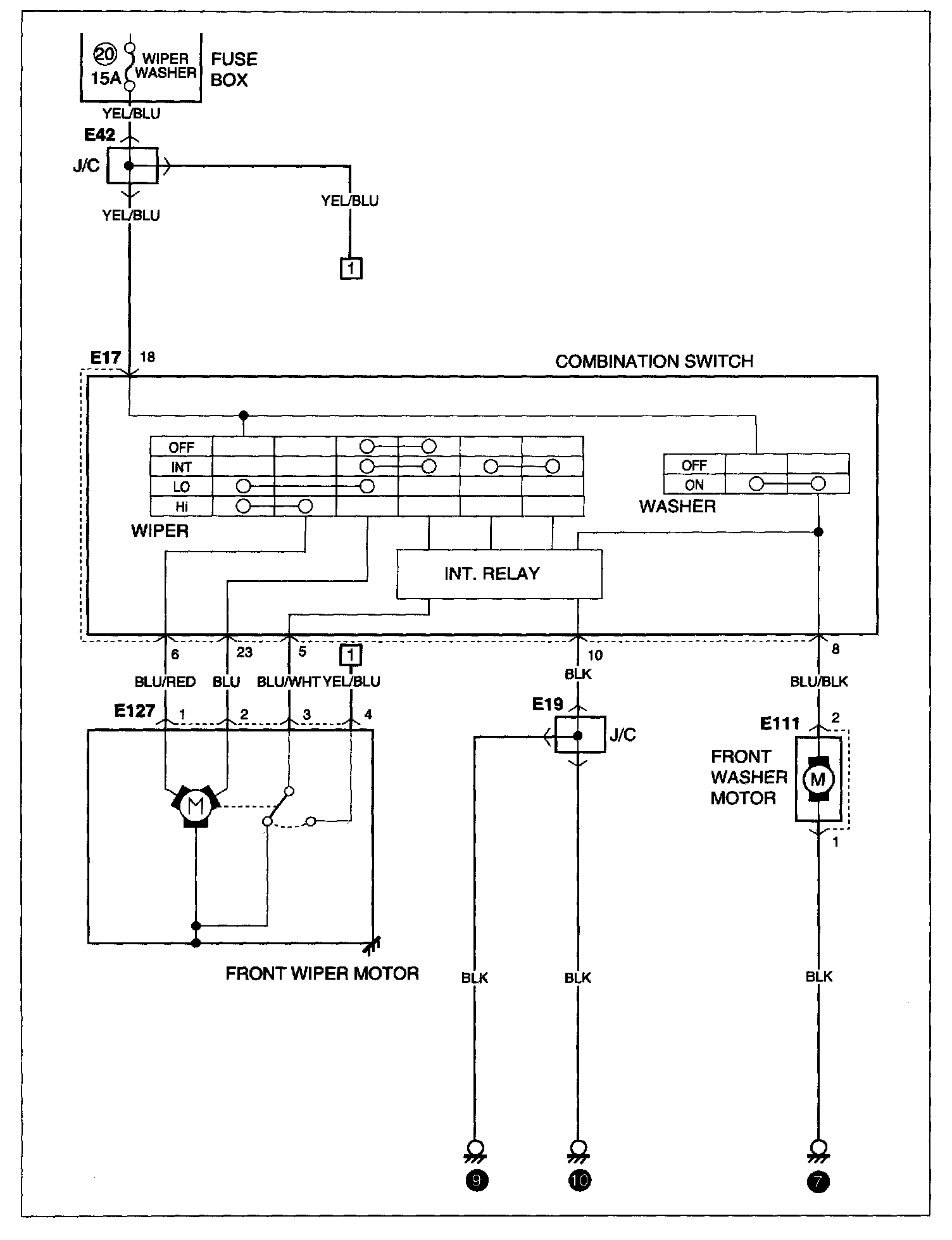

B-3 WINDSHIELD WIPER AND WASHER:

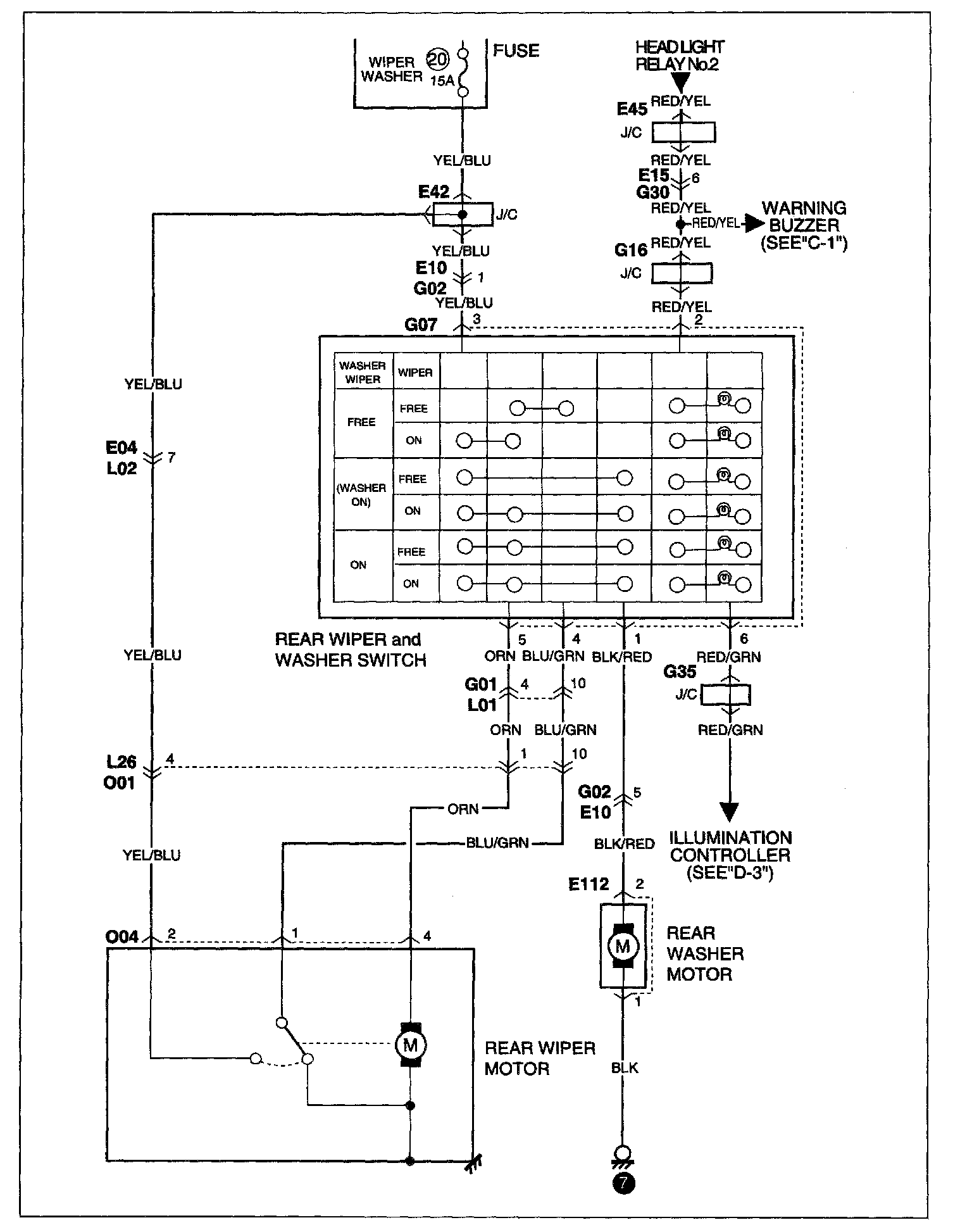

B-4 REAR WIPER AND WASHER:

NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
