License Plate Lamp

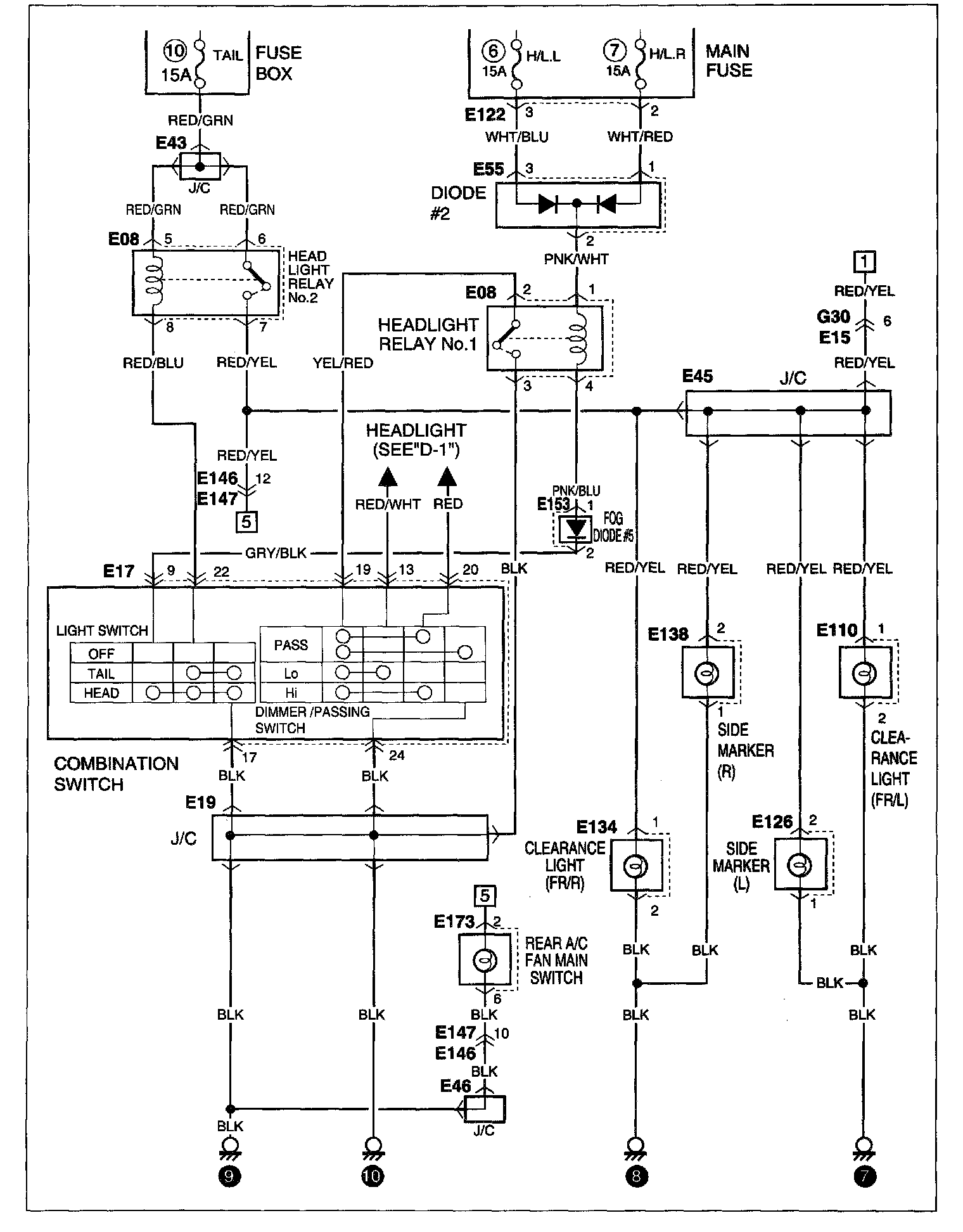

D-2 CLEARANCE,TAIL AND LICENSE PLATE LIGHT Part 1:

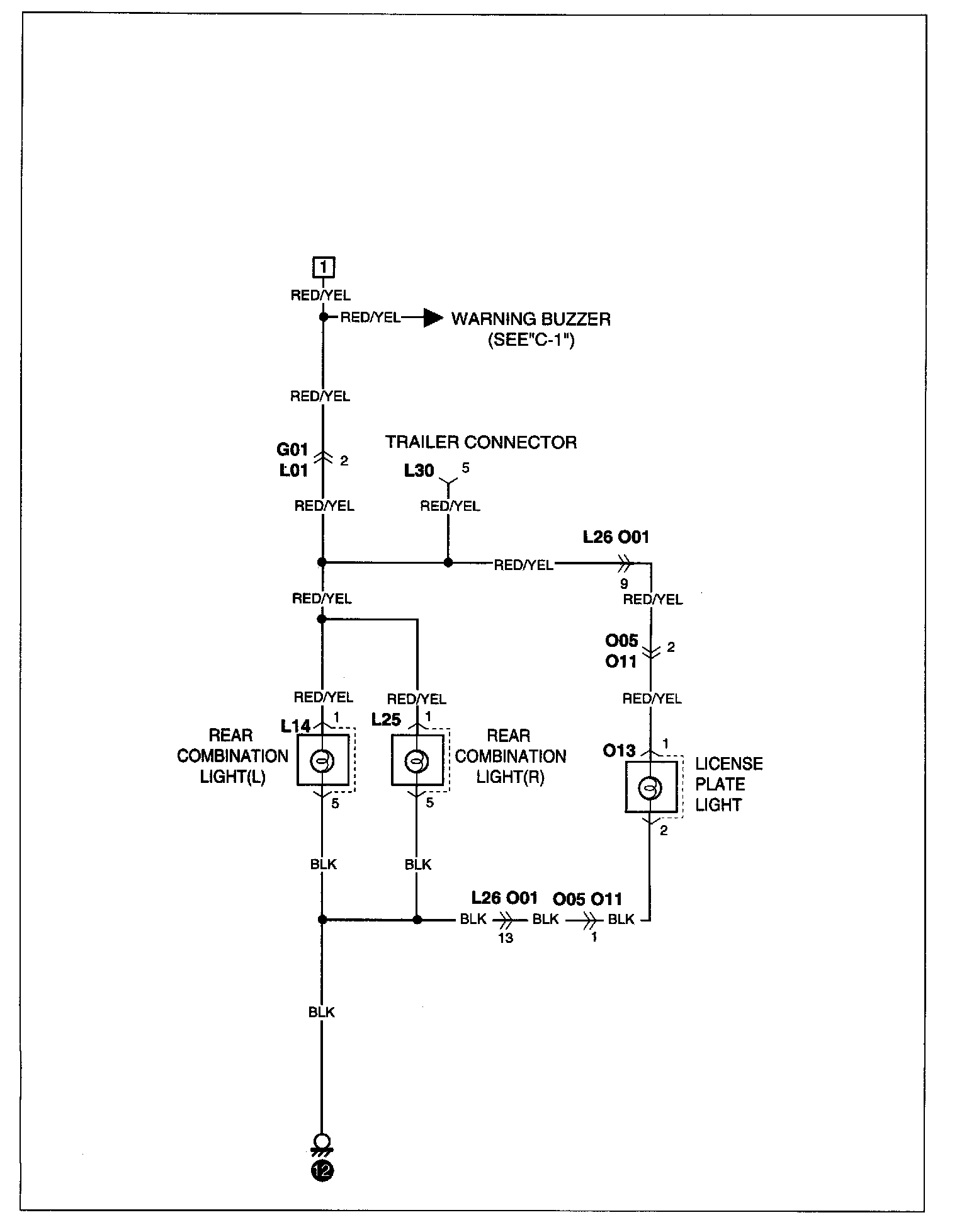

D-2 CLEARANCE, TAIL AND LICENSE PLATE LIGHT Part 2:

NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
