Automatic Transmission/Transaxle

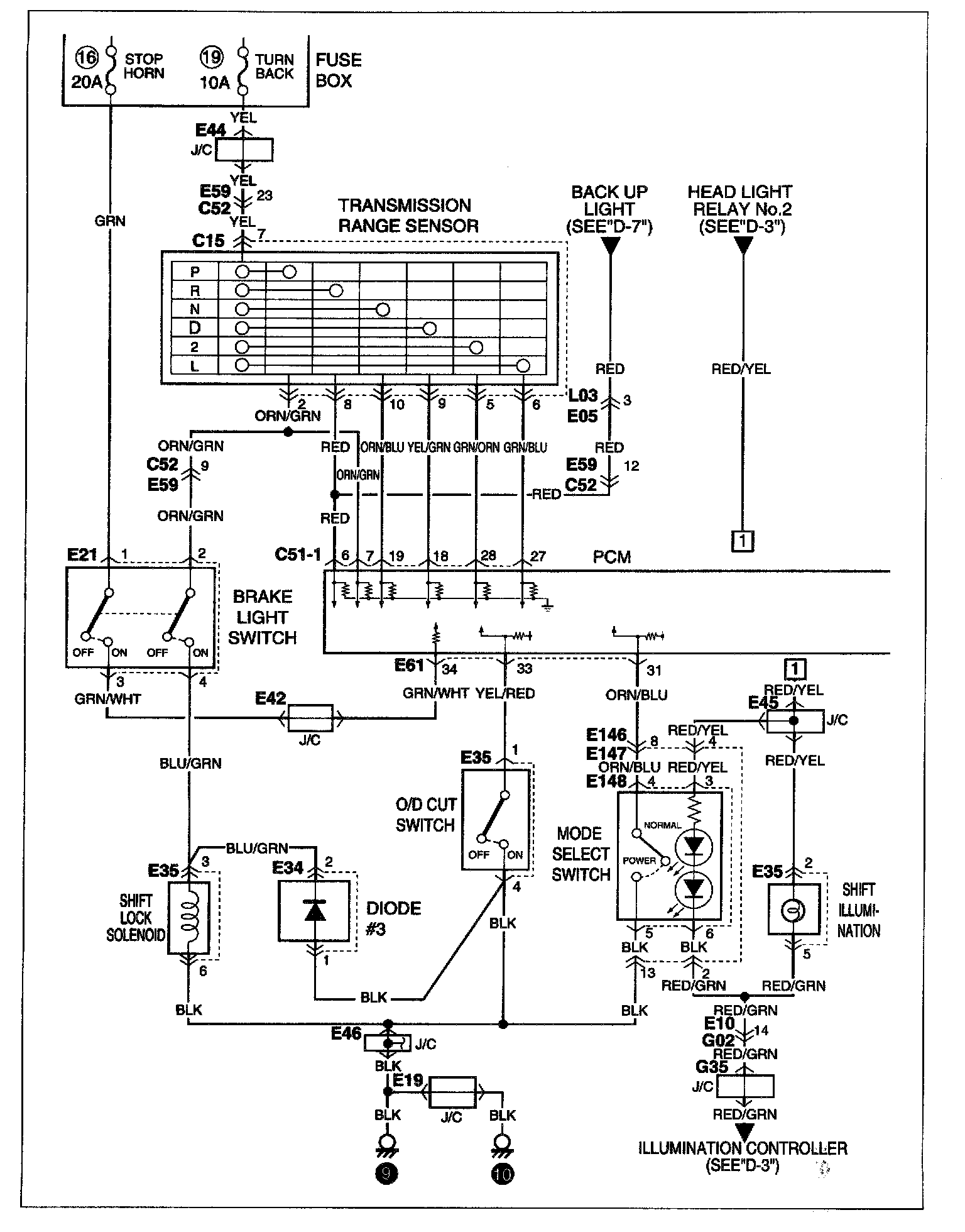

B-1 A/T CONTROL SYSTEM <VEHICLE WITH CRUISE CONTROL MODULE> Part 1:

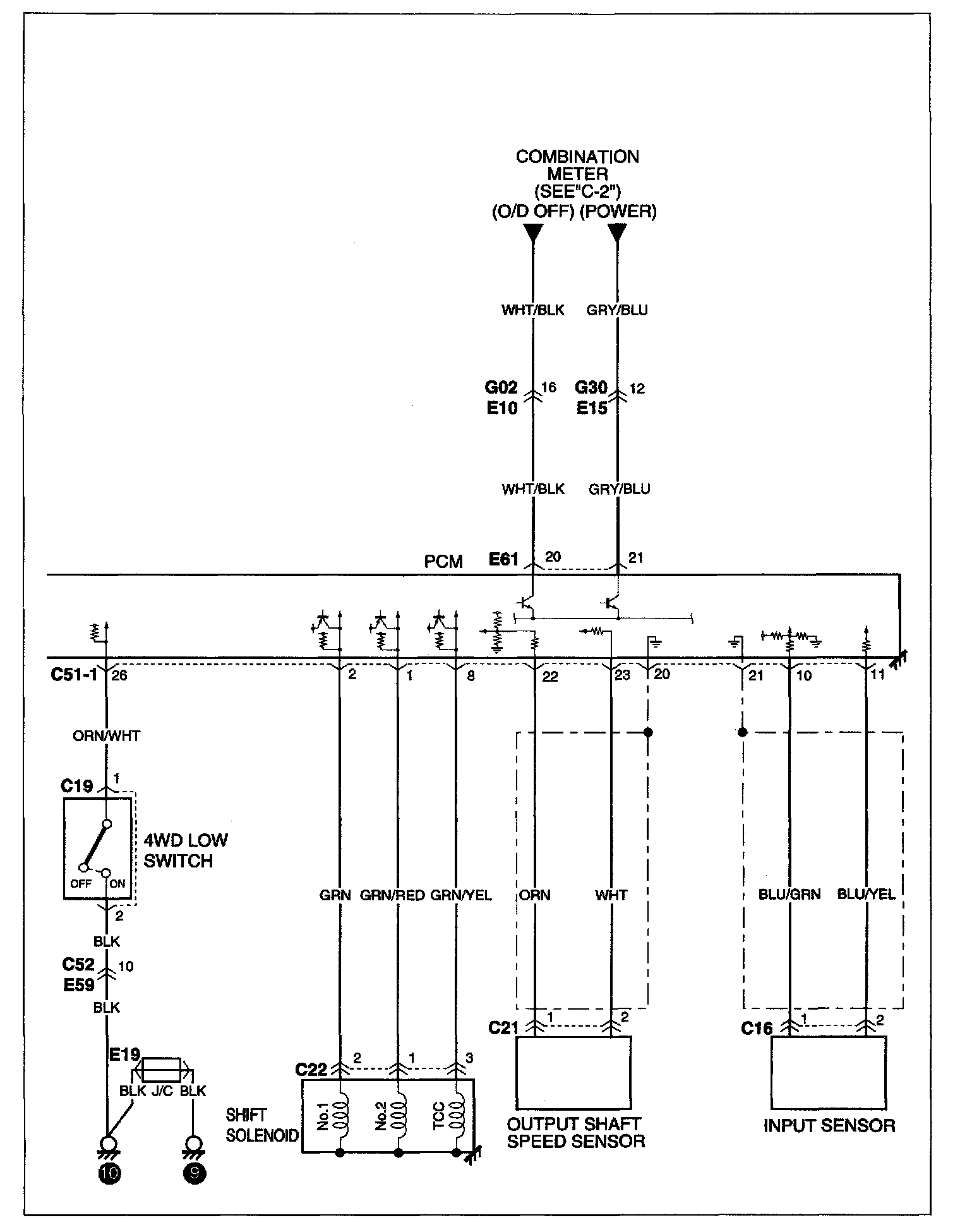

B-1 A/T CONTROL SYSTEM <VEHICLE WITH CRUISE CONTROL MODULE> Part 2:

B-1 A/T CONTROL SYSTEM <VEHICLE WITHOUT CRUISE CONTROL MODULE> Part 1:

B-1 A/T CONTROL SYSTEM <VEHICLE WITHOUT CRUISE CONTROL MODULE> Part 2:

NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
