Suzuki
>>
2001
>>
XL-7 Plus 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
E Connectors
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
E Connectors

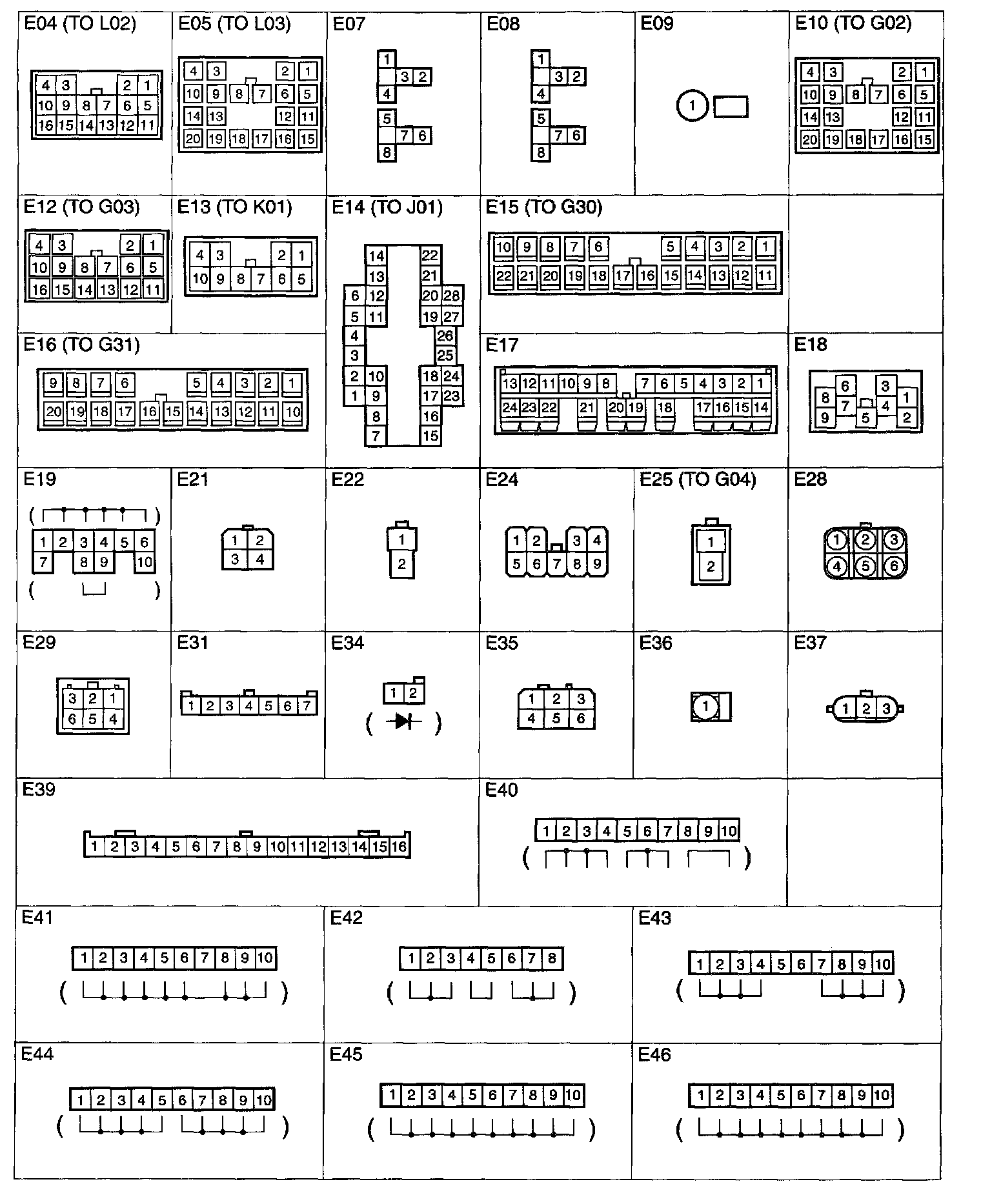

E04 - E46:

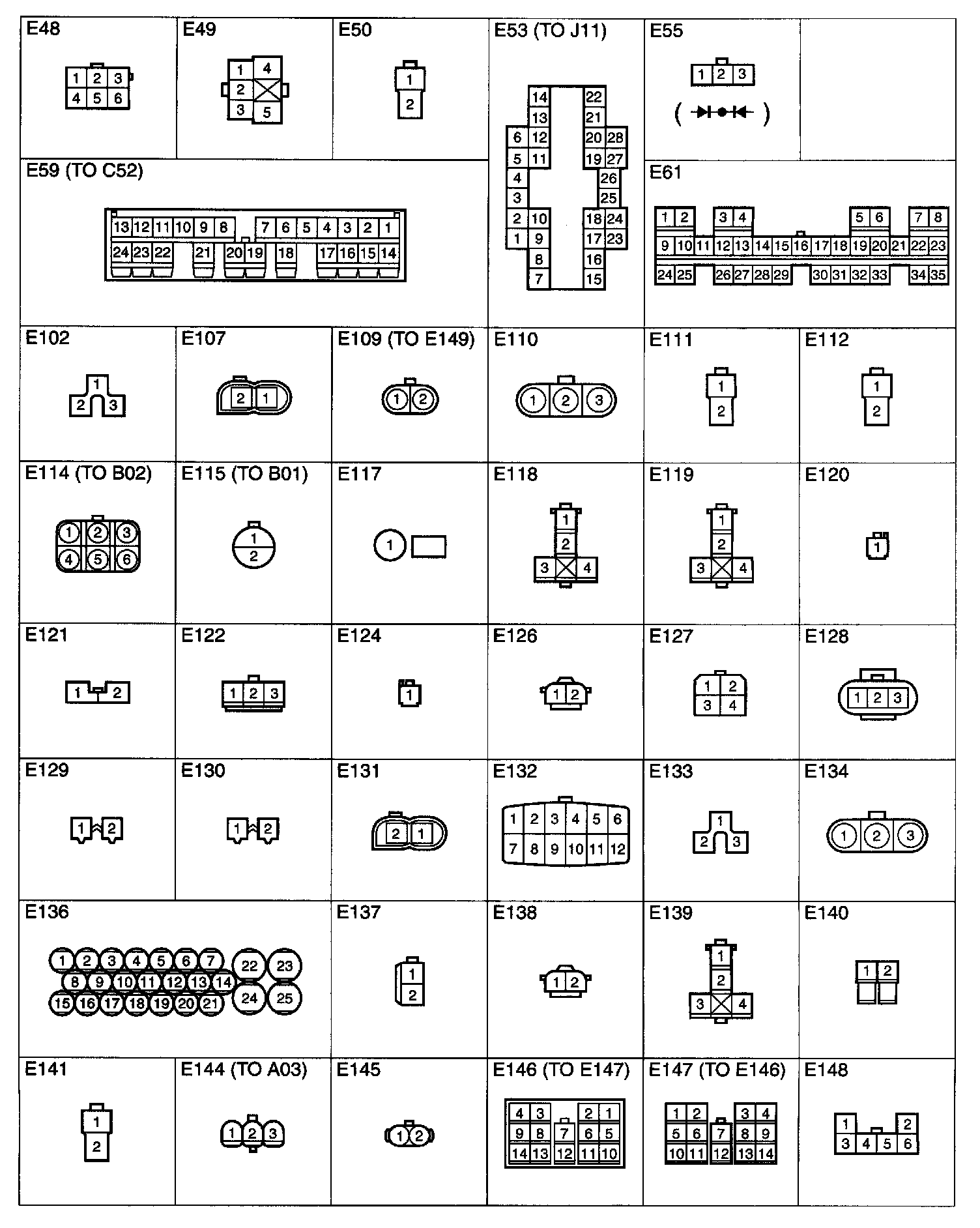

E48 - E61, E102 - E148:
E149 - E200:
