Clutch Pedal Position Switch Circuit Check

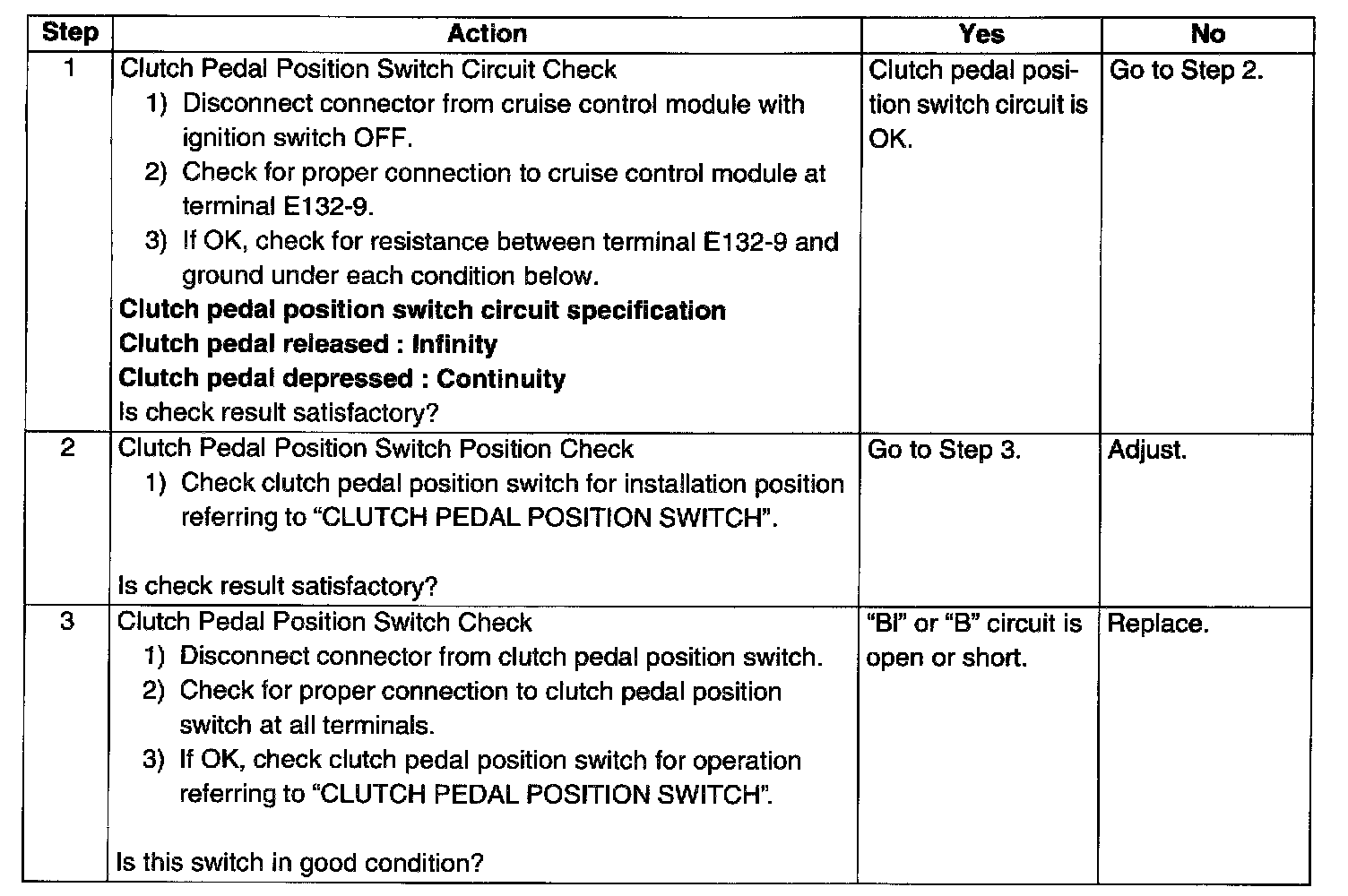

Clutch Pedal Position Switch Circuit Check (Step 1 - 3):



Clutch Pedal Position Switch Circuit Check (Fig. For Step 1):
