Table D: DTC Is Not Outputted With Diag. Switch Connected

CIRCUIT DESCRIPTION
When diagnosis switch terminal is connected to ground with ignition switch turned ON, the ABS control module outputs diagnostic trouble code by flashing ABS warning lamp.

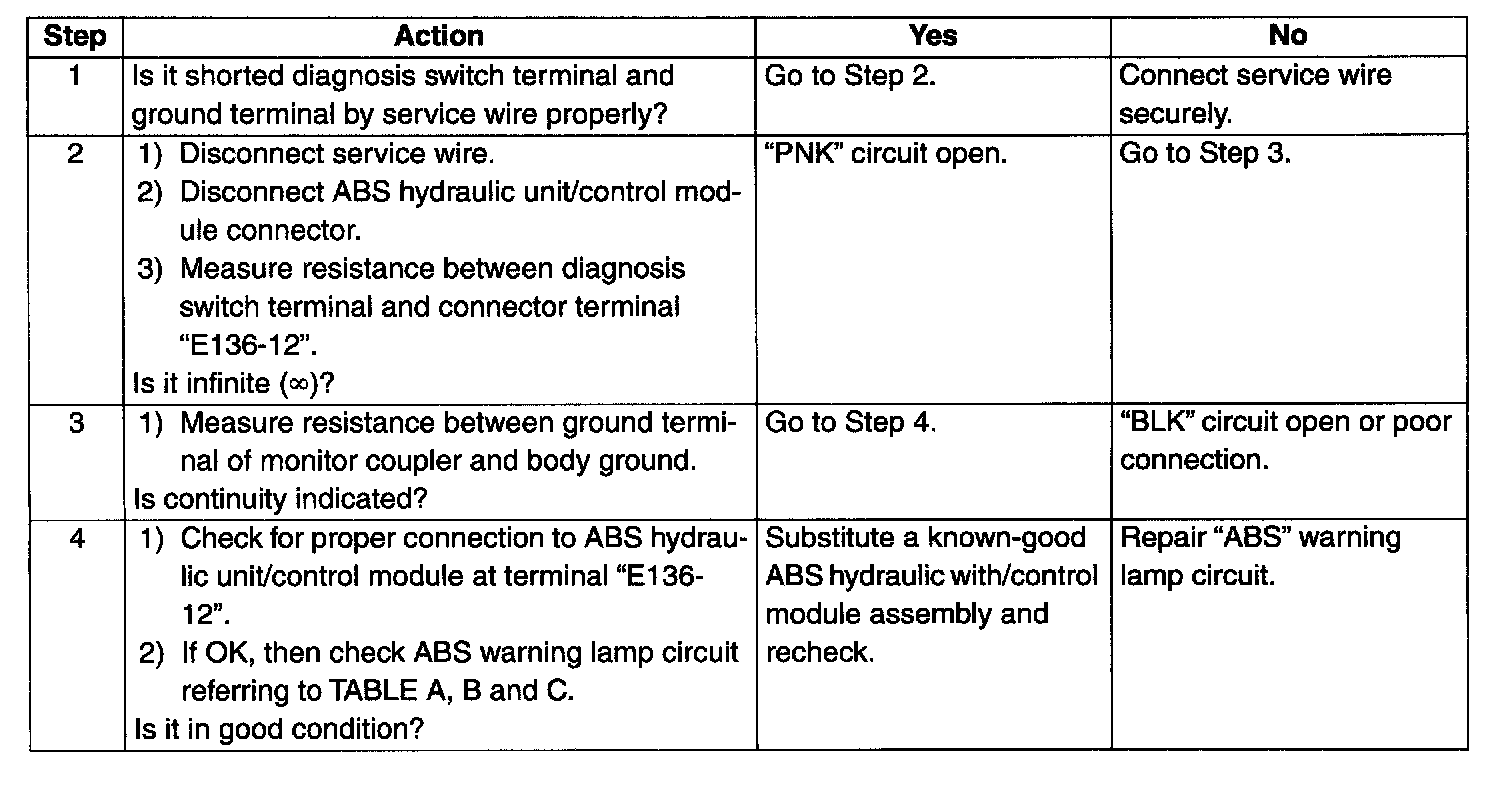

INSPECTION
