P0461

WIRING DIAGRAM

Detecting Condition And Trouble Area:

DTC CONFIRMATION PROCEDURE
DTC P0461 Flow Table includes system circuit confirmation inspection.

Steps 1 - 3:

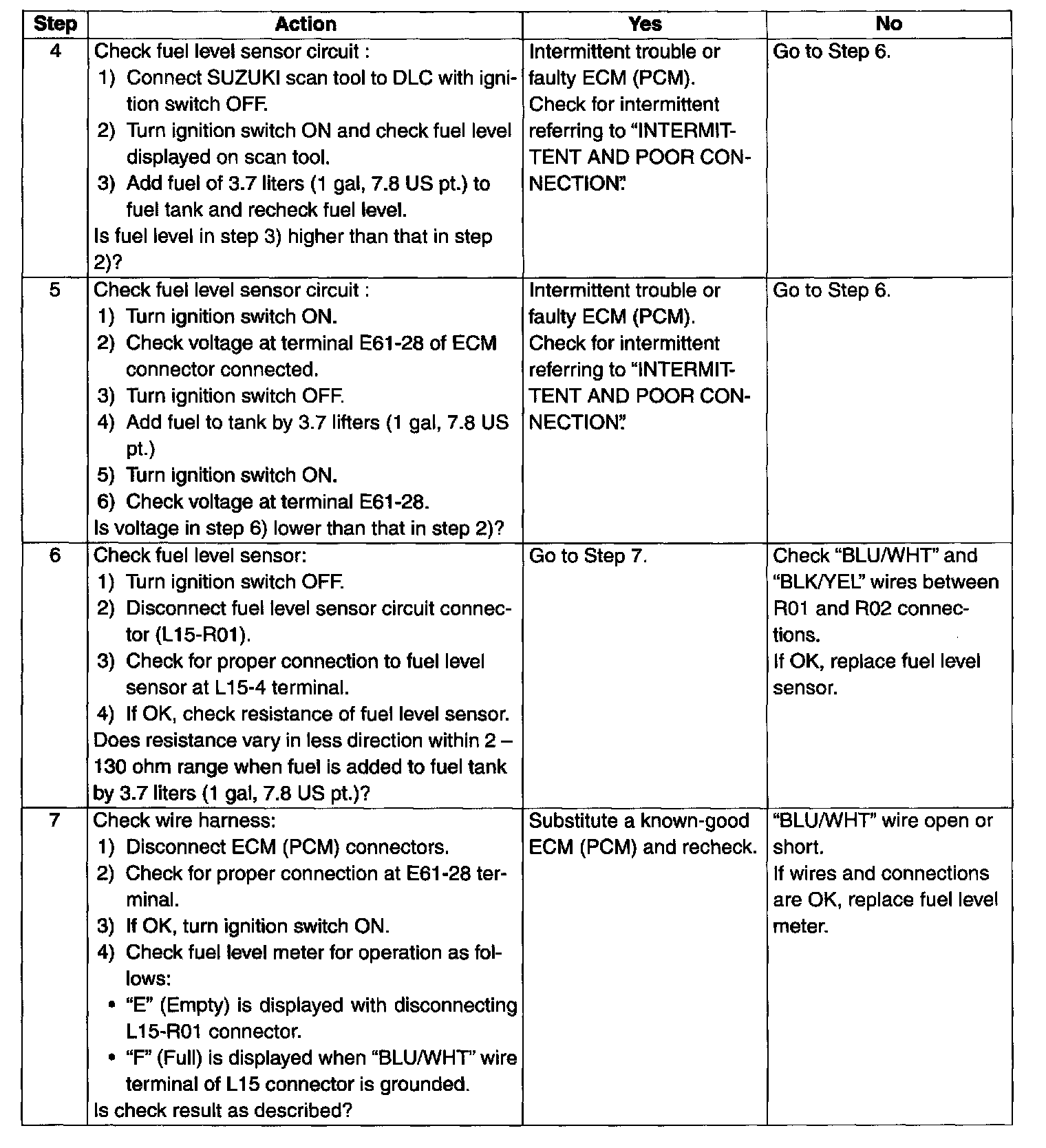

Steps 4 - 7:

TROUBLESHOOTING
