P0136

WIRING DIAGRAM

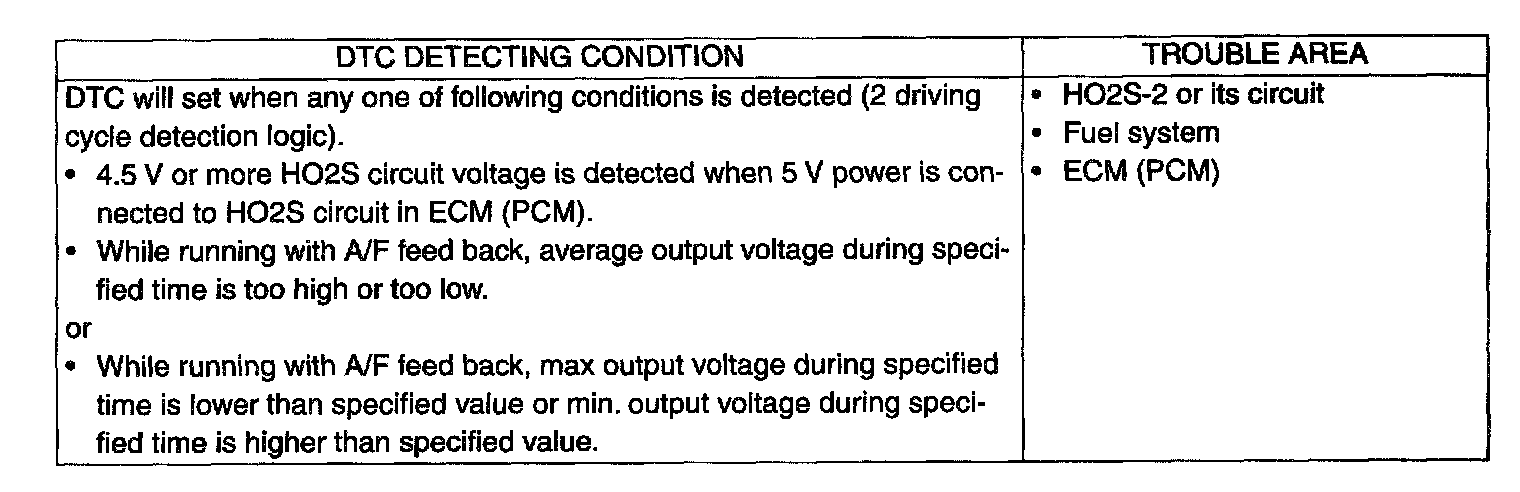

DTC Detecting Condition And Trouble Area:

DTC CONFIRMATION PROCEDURE

WARNING:
- When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
- Road test should be carried out with 2 persons, a driver and a tester, on a level road.

NOTE: Check to make sure that following conditions are satisfied when using this "DTC CONFIRMATION PROCEDURE".

- Intake air temp.: -8 °C (18 °F) or higher
- Engine coolant temp.: -8 - 110 °C (18 - 230 °F)
- Altitude (barometric pressure) : 2400 m, 8000 ft or less (560 mmHg (75 kPa) or more)

1. Connect scan tool with ignition switch OFF
2. Turn ON ignition switch and clear DTC, pending DTC and freeze frame data in ECM memory by using scan tool and start engine.
3. Increase vehicle speed to 55 km/h (40 mph) or more.
4. keep driving above vehicle speed till engine is warmed up completely (Changed of vehicle speed is permitted in this step).
5. keep driving 50 - 60 km/h (30-40 mph) for 8 min. or more.
6. Stop vehicle and check if pending DTC exists by using scan tool. If not, check it oxygen sensor heater monitoring test has completed by using scan tool. If not in both of above checks (i.e., no pending DTC and oxygen sensor heater monitoring test not completed), check vehicle conditions (environmental) and repeat Steps 3) through 6).

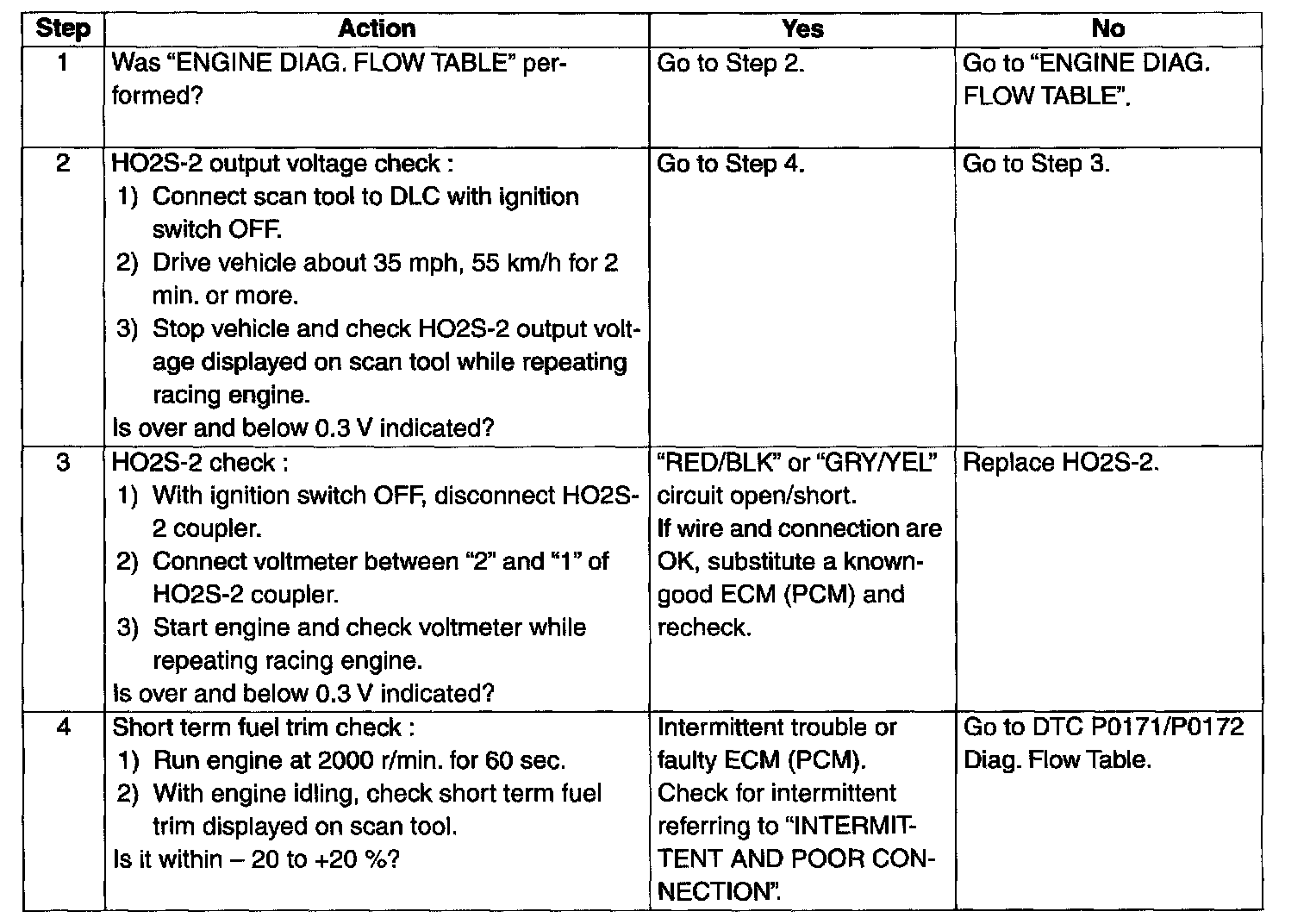

Steps 1 - 4:

TROUBLESHOOTING
