P0123

WIRING DIAGRAM/CIRCUIT DESCRIPTION

DTC Detecting Condition And Trouble Area:

DTC CONFIRMATION PROCEDURE
1. Connect scan tool to DLC with ignition switch OFF
2. Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and run engine at idle speed for 10 sec. or more.
3. Check DTC by using scan tool.

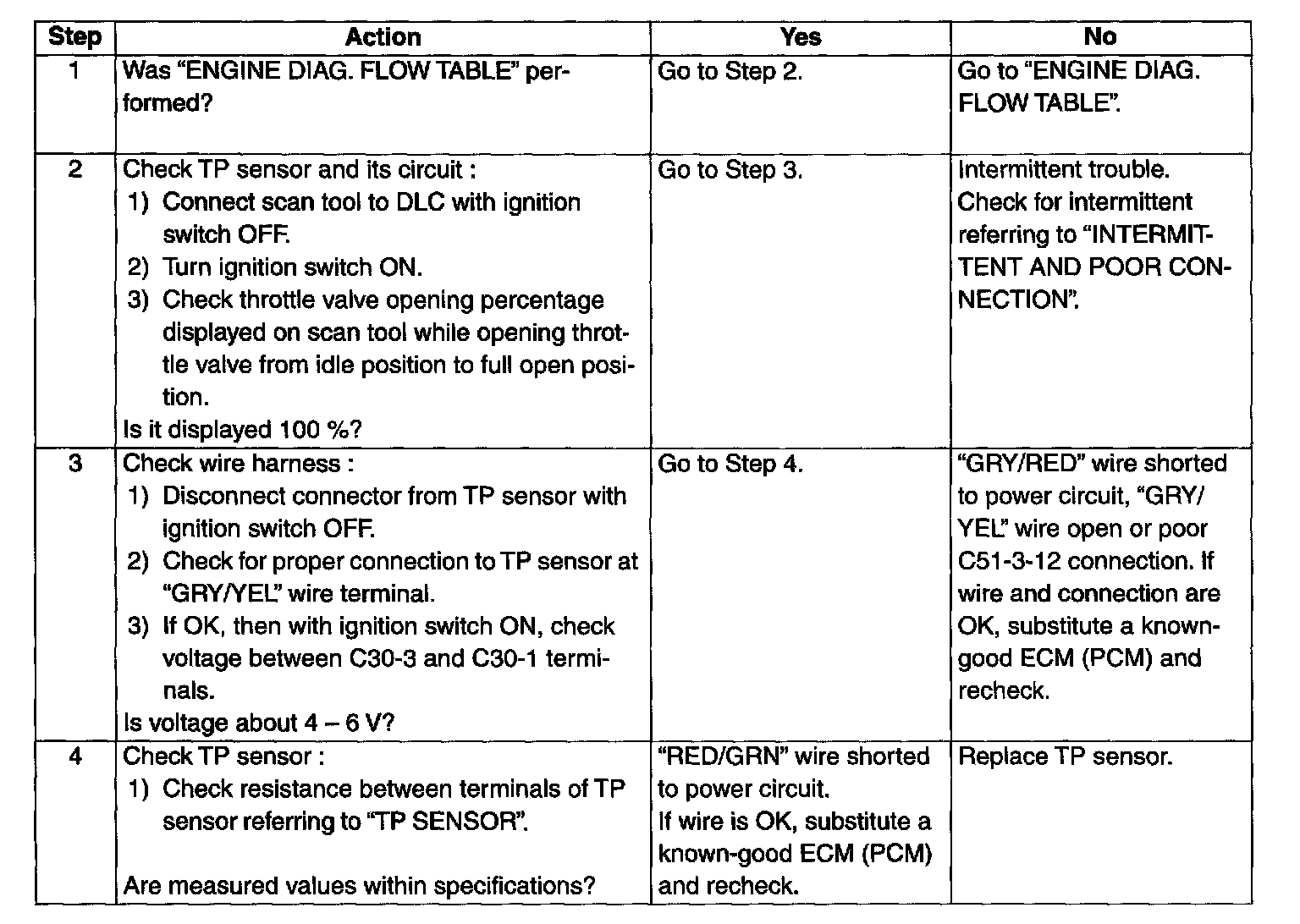

Steps 1 - 4:

TROUBLESHOOTING
